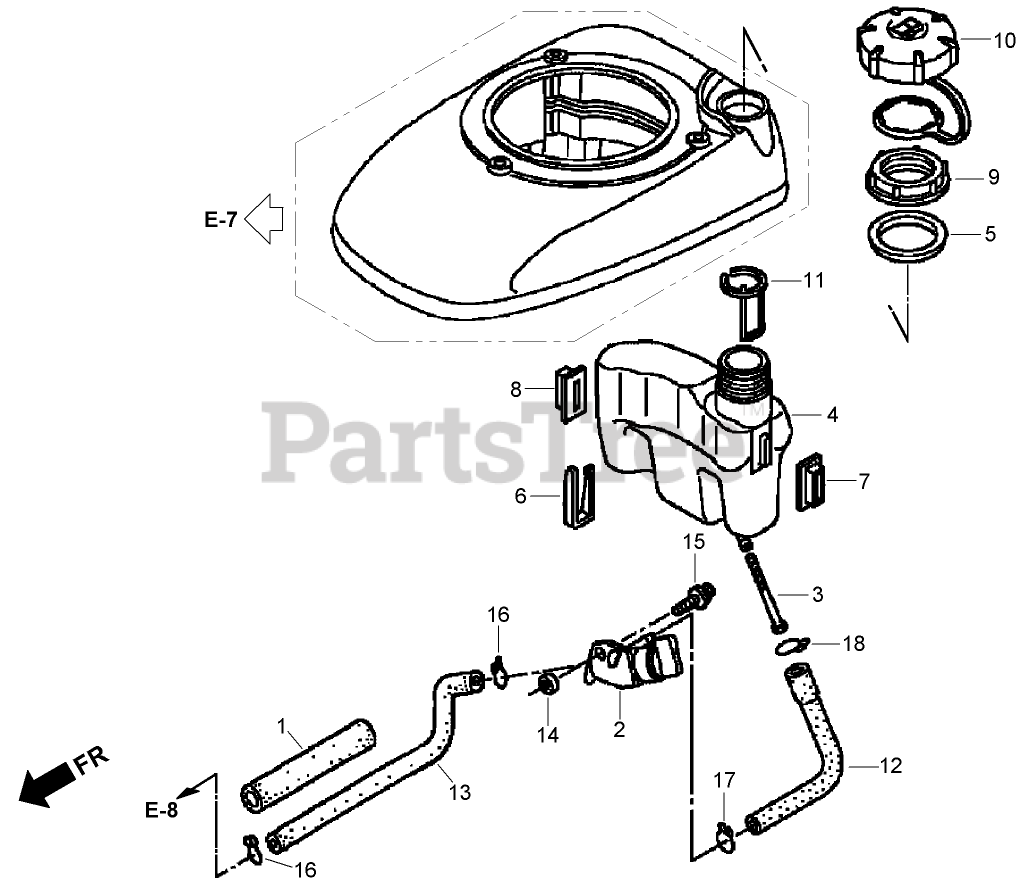

22271 - Toro 21" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) FUEL TANK ASSEMBLY HONDA GSV190LA A3T Parts Diagram

21" Walk-Behind Mower

FUEL TANK ASSEMBLY HONDA GSV190LA A3T Parts Diagram

  • Title
1

Honda 16854-ZH8-000

SUPPORTER-RUBBER (107 mm)

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 4 left!

0

2

Honda 16950-ZM0-003

PETCOCK ASM

Note: Obtain parts from www.honda-engines.com

$9.49

$

In Stock, Qty 13

0

3

Honda 16952-ZA8-800

FILTER-FUEL

Note: Obtain parts from www.honda-engines.com

$8.99

$

In Stock, Qty 20+

0

4

Honda 17511-Z0L-000

TANK-FUEL

Note: Obtain parts from www.honda-engines.com

$74.99

$

Usually ships in 3-6 days

0

5

Honda 17514-Z0L-000

SEAL-NECK, FUEL FILLER

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 10

0

6

Honda 17516-Z0L-000

CLIP-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, only 4 left!

0

7

Honda 17532-Z0L-000

RUBBER A-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 9

0

8

Honda 17533-Z0L-000

RUBBER B-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 6

0

9

Honda 17534-Z0L-000

NUT-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 10

0

10

Honda 17620-Z0J-800

FUEL TANK CAP ASM
(Superseded to 17620-Z8B-800)

Note: Obtain parts from www.honda-engines.com

$23.99

$

In Stock, Qty 7

0

11

Honda 17636-Z0L-000

GAUGE-LEVEL, FUEL

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 9

0

12

Honda 17701-Z0L-810

TUBE-TANK, FUEL

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 4 left!

0

13

Honda 17702-ZM0-800

TUBE-FUEL

Note: Obtain parts from www.honda-engines.com

$9.49

$

In Stock, Qty 5

0

14

Honda 91501-Z0L-800

COLLAR-PETCOCK, FUEL

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, only 1 left!

0

15

Honda 93891-05010-08

SCREW-WASHER (5X10)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 5

0

16

Honda 95002-02080

CLIP-TUBE (B8)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 4 left!

0

17

Honda 95002-02100

CLIP-TUBE (B10)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 20+

0

18

Honda 95002-70000

CLIP-TUBE (C11)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 5

0
