22271 - Toro 21" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) FLYWHEEL ASSEMBLY HONDA GSV190LA A3T Parts Diagram

21" Walk-Behind Mower

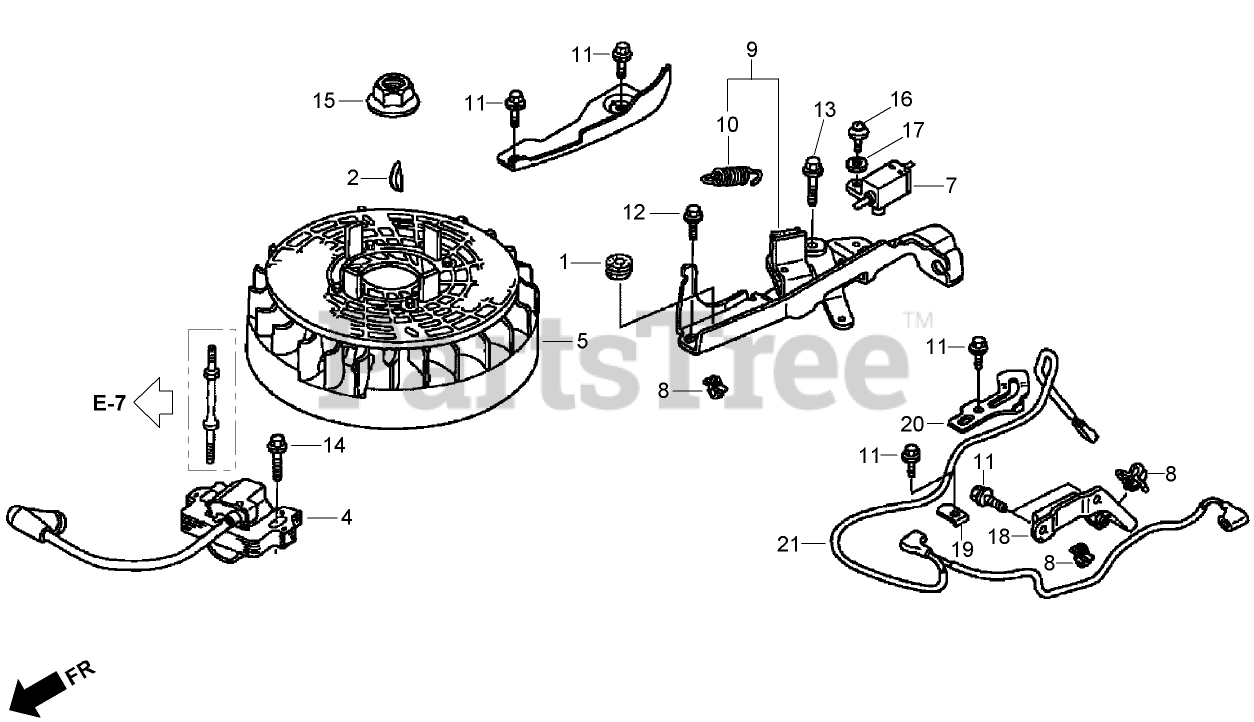

FLYWHEEL ASSEMBLY HONDA GSV190LA A3T Parts Diagram

  • Title

1

Honda 11344-MB0-000

GROMMET A-COVER, REAR (8X16X6.6)

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

1

Honda 11344-Z0L-800

GROMMET A, RR COVER (8X16X8)

Note: Obtain parts from www.honda-engines.com

$0.99

$

Usually ships in 3-6 days

0

2

Honda 13331-357-000

KEY-WOODRUFF, SPECIAL (25X18)

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, only 4 left!

0

4

Honda 30500-Z0J-003

IGNITION COIL ASM (PHELON) (USE FOR FLYWHEEL OF PHELON)
(Superseded to 30500-Z8B-903)

Note: Obtain parts from www.honda-engines.com

$23.99

$

Usually ships in 3-6 days

0

5

Honda 31105-Z0Y-010

FLYWHEEL ASM (PHELON) (USE FOR IGNITION COIL OF PHELON)

Note: Obtain parts from www.honda-engines.com

$29.99

$

Usually ships in 3-6 days

0

7

Honda 35120-ZM0-003

ENGINE STOP SWITCH ASM (N C)

Note: Obtain parts from www.honda-engines.com

$13.99

$

In Stock, only 2 left!

0

8

Honda 51125-Z0L-003

HOLDER-WIRE (FASTEX)

Note: Obtain parts from www.honda-engines.com

$8.99

$

In Stock, only 1 left!

0

8

Honda 90681-959-003

CLIP A-CABLE (3.8MM BLACK) (NIFCO)

Note: Obtain parts from www.honda-engines.com

$4.49

$

Usually ships in 3-6 days

0

9

Toro 75110-Z0L-800

BRAKE ASM

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

10

Honda 75113-ZM0-000

SPRING-LEVER, BRAKE

Note: Obtain parts from www.honda-engines.com

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 17

0

12

Honda 90014-952-000

BOLT-FLANGE (6X14) (C T200)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 3 left!

0

13

Honda 90018-ZE1-000

BOLT-FLANGE (6X23) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.49

$

Usually ships in 3-6 days

0

14

Honda 90022-888-010

BOLT-FLANGE (6X20) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

15

Honda 90213-S3Y-000

NUT-FLANGE (14MM)

Note: Obtain parts from www.honda-engines.com

$6.49

$

In Stock, only 1 left!

0

16

Honda 93892-04012-00

SCREW-WASHER (4X12)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 8

0

17

Honda 94103-04000

WASHER-PLAIN (4MM)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 7

0

18

Honda 30547-Z0L-S00

CLAMP-WIRE, STOP SWITCH

Note: Obtain parts from www.honda-engines.com

$869.99

$

Usually ships in 3-6 days

0

19

Honda 30548-ZL8-000

CLAMP-WIRE, STOP SWITCH

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

20

Honda 30549-ZL8-000

CLAMP-WIRE

Note: Obtain parts from www.honda-engines.com

$5.99

$

Usually ships in 3-6 days

0

21

Honda 32195-Z0L-S00

WIRE-SWITCH, STOP

Note: Obtain parts from www.honda-engines.com

$6.49

$

In Stock, only 1 left!

0
