22271 - Toro 21" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) CARBURETOR ASSEMBLY HONDA GSV190LA A3T Parts Diagram

21" Walk-Behind Mower

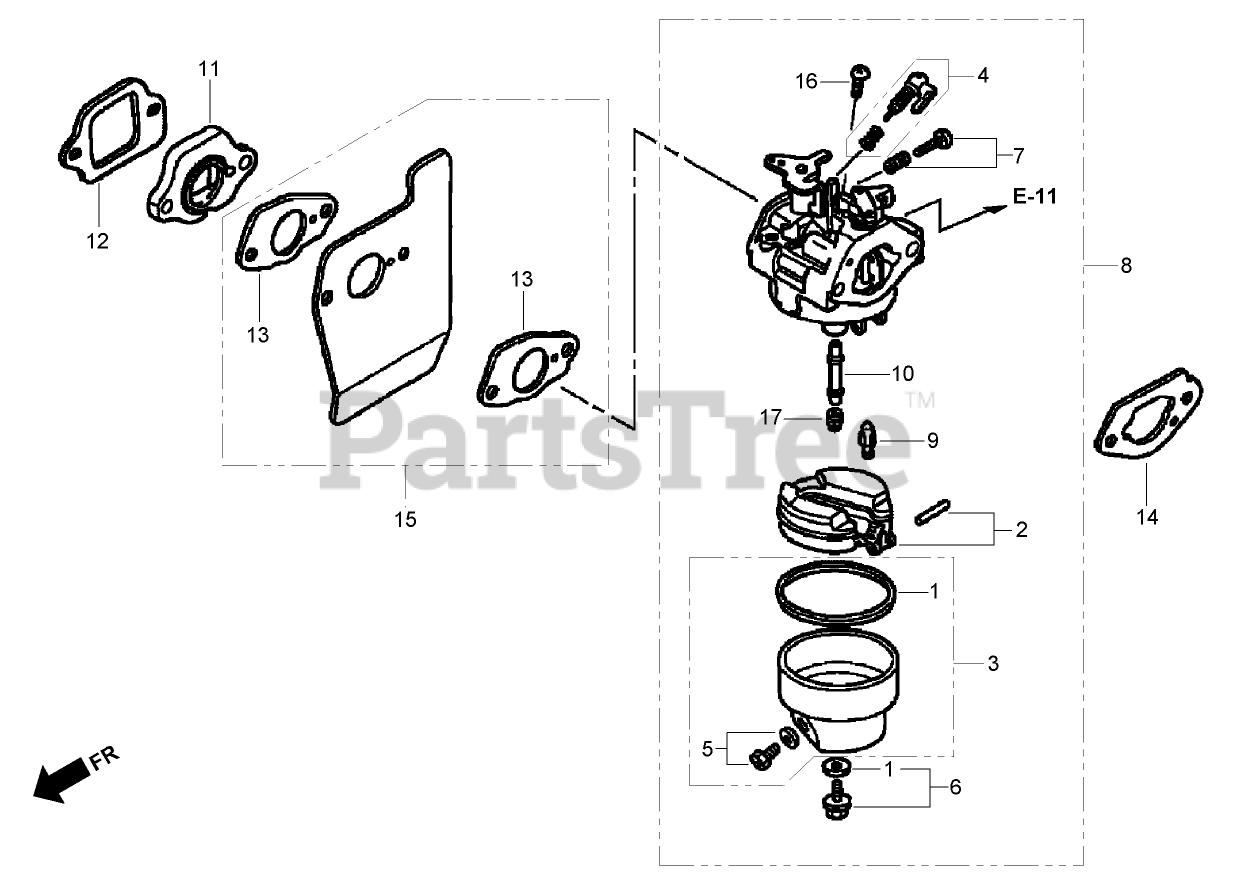

CARBURETOR ASSEMBLY HONDA GSV190LA A3T Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

Note: Obtain parts from www.honda-engines.com

$14.99

$

In Stock, Qty 20+

0

2

Honda 16013-ZL1-003

FLOAT SET

Note: Obtain parts from www.honda-engines.com

$34.99

$

In Stock, only 4 left!

0

3

Honda 16015-887-782

FLOAT CHAMBER SET

Note: Obtain parts from www.honda-engines.com

$36.99

$

In Stock, only 2 left!

0

4

Honda 16016-ZG0-W00

SCREW SET

Note: Obtain parts from www.honda-engines.com

$13.99

$

In Stock, only 2 left!

0

5

Honda 16024-ZE1-811

DRAIN SCREW SET

Note: Obtain parts from www.honda-engines.com

$11.99

$

In Stock, only 3 left!

0

6

Honda 16028-ZE0-005

SCREW SET
(Superseded to 16028-ZK7-S91)

Note: Obtain parts from www.honda-engines.com

$14.99

$

In Stock, Qty 8

0

7

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP)

Note: Obtain parts from www.honda-engines.com

$12.99

$

Usually ships in 3-6 days

0

8

Toro 16100-Z2D-811

CARBURETOR ASM (BB65G A)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

9

Honda 16155-ZM0-013

VALVE-FLOAT

Note: Obtain parts from www.honda-engines.com

$37.99

$

In Stock, Qty 7

0

10

Honda 16166-Z0Y-003

NOZZLE-MAIN

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 10

0

11

Honda 16211-ZL8-000

INSULATOR-CARBURETOR

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 20+

0

12

Honda 16212-ZL8-000

GASKET-INSULATOR

Note: Obtain parts from www.honda-engines.com

$8.49

$

In Stock, Qty 20+

0

13

Honda 16221-883-800

GASKET-CARBURETOR

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, Qty 20+

0

14

Honda 16228-ZL8-000

GASKET-CARBURETOR

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, Qty 20+

0

15

Honda 19650-ZM0-000

GUIDE-AIR

Note: Obtain parts from www.honda-engines.com

$10.99

$

In Stock, Qty 20+

0

16

Honda 93500-05006-0H

SCREW-PAN (5X6)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 12

0

17

Honda 99101-124-0620

JET-MAIN (No.62)

Note: Obtain parts from www.honda-engines.com

$12.99

$

In Stock, only 2 left!

0

17

Honda 99101-124-0650

JET-MAIN (No.65)

Note: Obtain parts from www.honda-engines.com

$13.99

$

In Stock, only 2 left!

0

17

Honda 99101-124-0680

JET-MAIN (No.68)

Note: Obtain parts from www.honda-engines.com

$12.99

$

Usually ships in 3-6 days
