22271 - Toro 21" Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CONTROL ASSEMBLY HONDA GSV190LA S3A Parts Diagram

21" Walk-Behind Mower

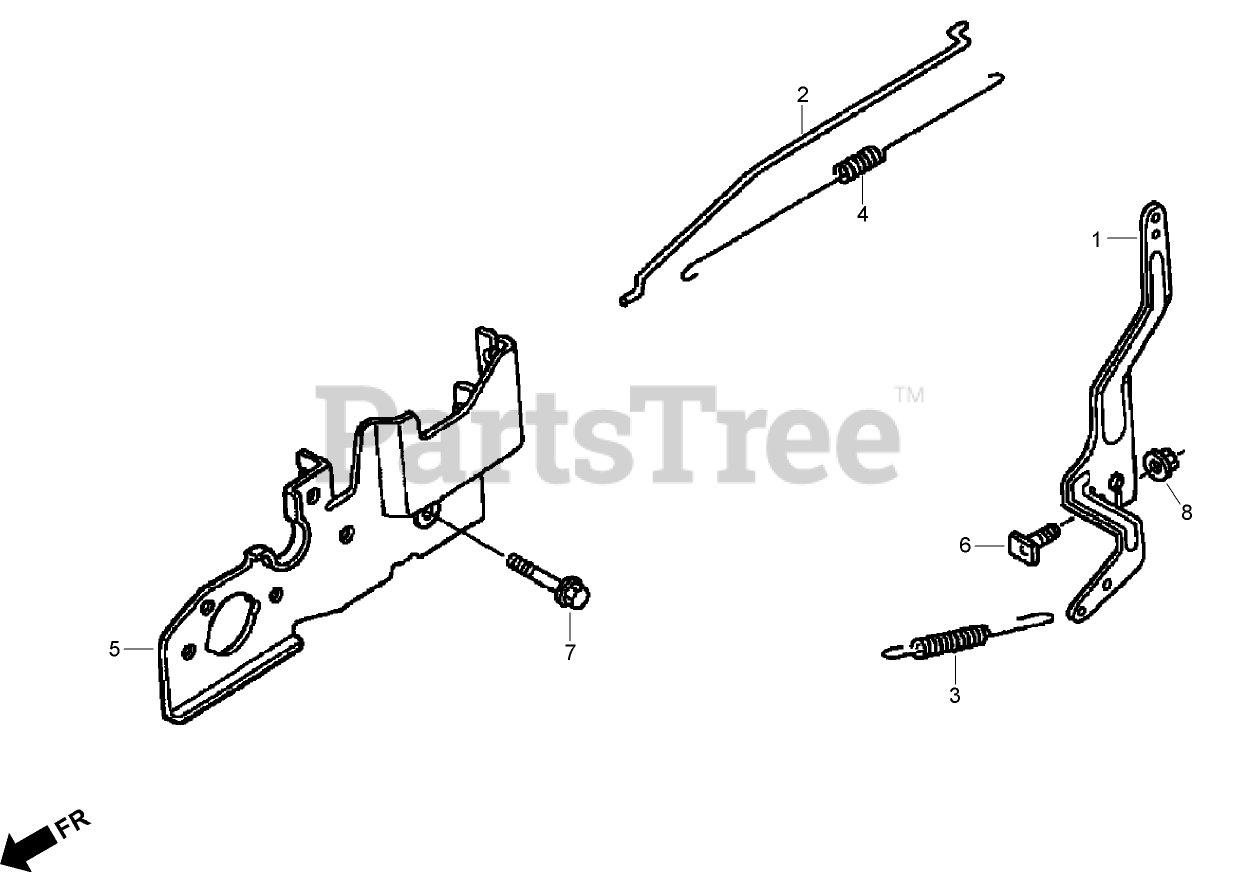

CONTROL ASSEMBLY HONDA GSV190LA S3A Parts Diagram

  • Title
1

Honda 16551-ZM0-010

ARM-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$7.99

$

In Stock, Qty 10

0

2

Honda 16555-Z0L-800

ROD-GOVERNOR
(Superseded to 16555-Z0L-801)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 11

0

3

Honda 16561-Z0L-000

SPRING-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 8

0

4

Honda 16562-ZM0-000

SPRING-RETURN, THROTTLE

Note: Obtain parts from www.honda-engines.com

$3.49

$

Usually ships in 3-6 days

0

5

Honda 16580-Z0L-810

BASE-CONTROL

Note: Obtain parts from www.honda-engines.com

$153.99

$

Usually ships in 3-6 days

0

6

Honda 90015-ZE5-010

BOLT-ARM, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 3 left!

0

7

Honda 90016-ZE8-000

BOLT-FLANGE (6X45) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

8

Honda 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0
