22271 - Lawn-Boy 21" Walk-Behind Mower (SN: 280000001 - 280999999) (2008) FRONT END AND TUNNEL ASSEMBLY Parts Diagram

21" Walk-Behind Mower

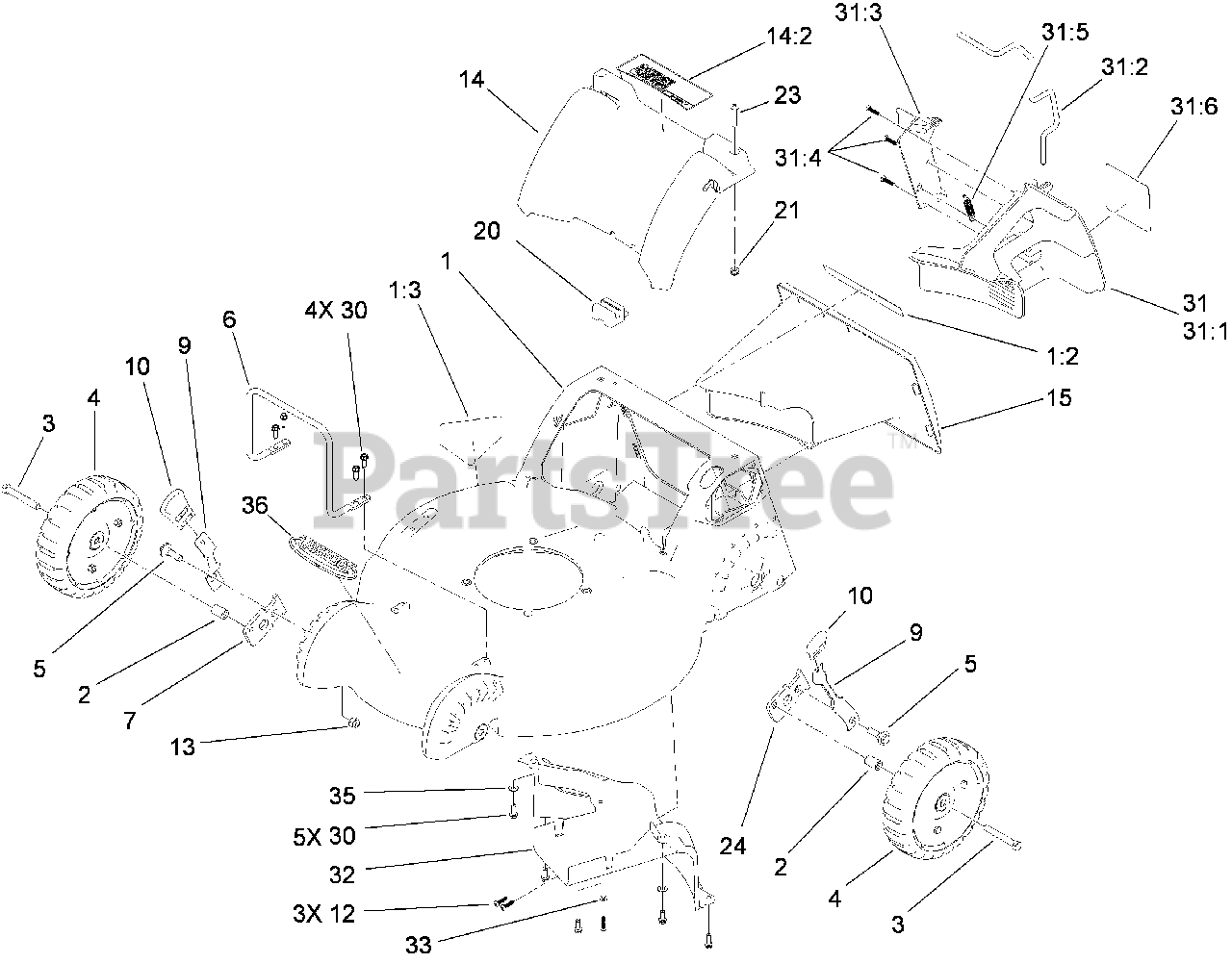

FRONT END AND TUNNEL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 117-4156-02

Housing
(Superseded to 117-5960)

$258.99

$

Usually ships in 3-6 days

0

1:2

Lawn-Boy 107-3889

DECAL-SAFETY
(Superseded to 114-2820)

$6.99

$

Usually ships in 3-6 days

0

1:3

Lawn-Boy 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

$10.99

$

In Stock, only 4 left!

0

3

Lawn-Boy 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 114-2752

8 INCH WHEEL ASM

$68.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 6

0

6

Lawn-Boy 110-9475-03

GUARD-ENGINE

$29.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 110-9421

ARM-PIVOT, RH

$17.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 110-9434

ARM-SPRING, FRONT

$10.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, only 3 left!

0

12

Lawn-Boy 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

13

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 108-9349

COVER-REAR

$

$

Not available

14:2

Lawn-Boy 107-3888

DECAL-SAFETY
(Superseded to 114-2820)

$6.99

$

Usually ships in 3-6 days

0

15

$43.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 110-1786

MODULE-SWITCH

$62.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 94-1610

NUT-CLIP

$0.99

$

In Stock, Qty 14

0

23

Lawn-Boy 108-0965

SCREW-PTH

$1.49

$

In Stock, Qty 11

0

24

Lawn-Boy 110-9420

ARM-PIVOT, LH

$17.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 110-9468

MULCH PLUG ASM

$62.99

$

In Stock, only 1 left!

0

31:1

Lawn-Boy 110-9446

PLUG-MULCH, LH

$23.99

$

Usually ships in 3-6 days

0

31:2

Lawn-Boy 110-9448

LATCH-PLUG, MULCH

$24.99

$

In Stock, only 1 left!

0

31:3

Lawn-Boy 110-9447

PLUG-MULCH, RH

$10.99

$

In Stock, only 4 left!

0

31:4

Lawn-Boy 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

31:5

Lawn-Boy 110-9458

SPRING-EXTENSION

$3.49

$

In Stock, Qty 7

0

31:6

Lawn-Boy 110-9457

DECAL-PLUG, MULCH

$8.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 110-9413

BAFFLE-REAR

$31.99

$

In Stock, only 1 left!

0

33

Lawn-Boy 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

$

$

Not available
