22271 - Lawn-Boy 21" Walk-Behind Mower (SN: 280000001 - 280999999) (2008) ENGINE AND BLADE ASSEMBLY Parts Diagram

21" Walk-Behind Mower

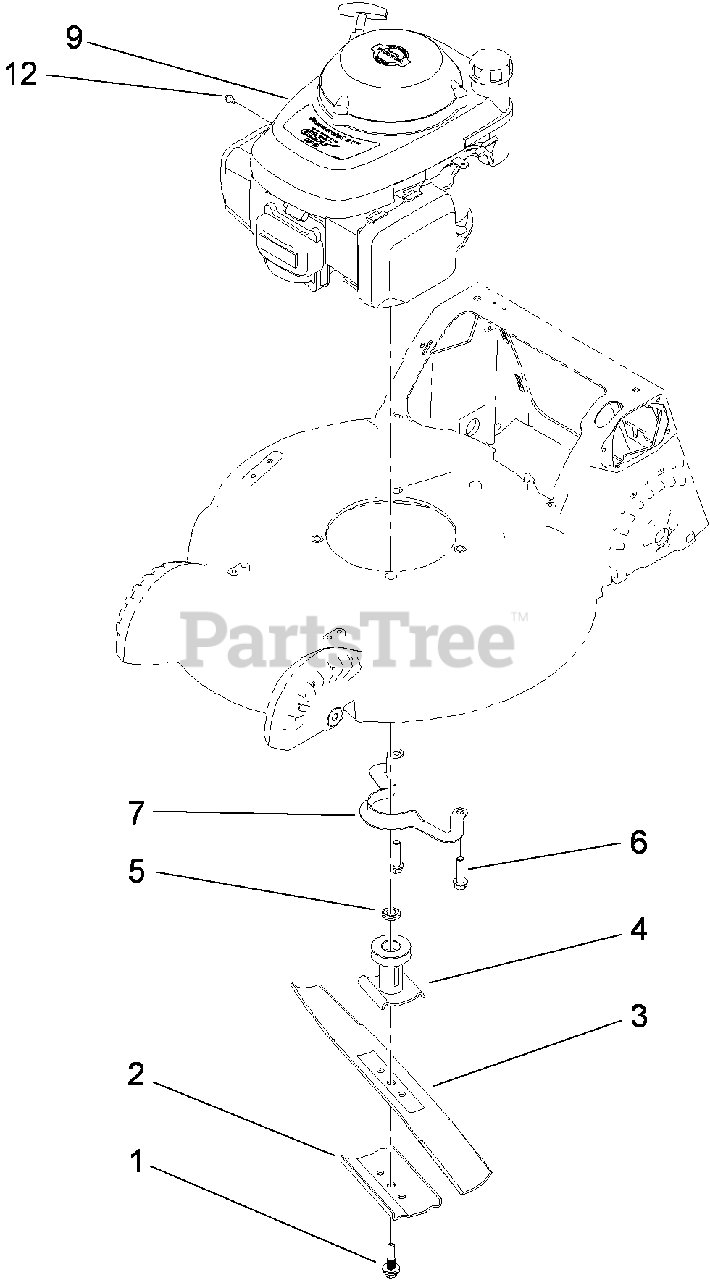

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 112-8789

BOLT-SHOULDER
(Superseded to 117-5270)

$

$

Not available

2

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

3

Lawn-Boy 108-3759-03

BLADE-BAGGING

$28.99

$

In Stock, Qty 19

0

4

Lawn-Boy 114-2774

DRIVER-BLADE

$34.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

6

Lawn-Boy 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

7

$15.99

$

In Stock, only 1 left!

0

9

ENGINE-HONDA, GSV190LA A3T

Note: Not serviced separately Obtain parts from www.honda-engines.com

$

$

Not available

12

Lawn-Boy 98-1394

SCREW-HWH

$4.49

$

In Stock, only 1 left!

0
