22271 - Lawn-Boy 21" Walk-Behind Mower (SN: 270000001 - 270999999) (2007) HANDLE ASSEMBLY Parts Diagram

21" Walk-Behind Mower

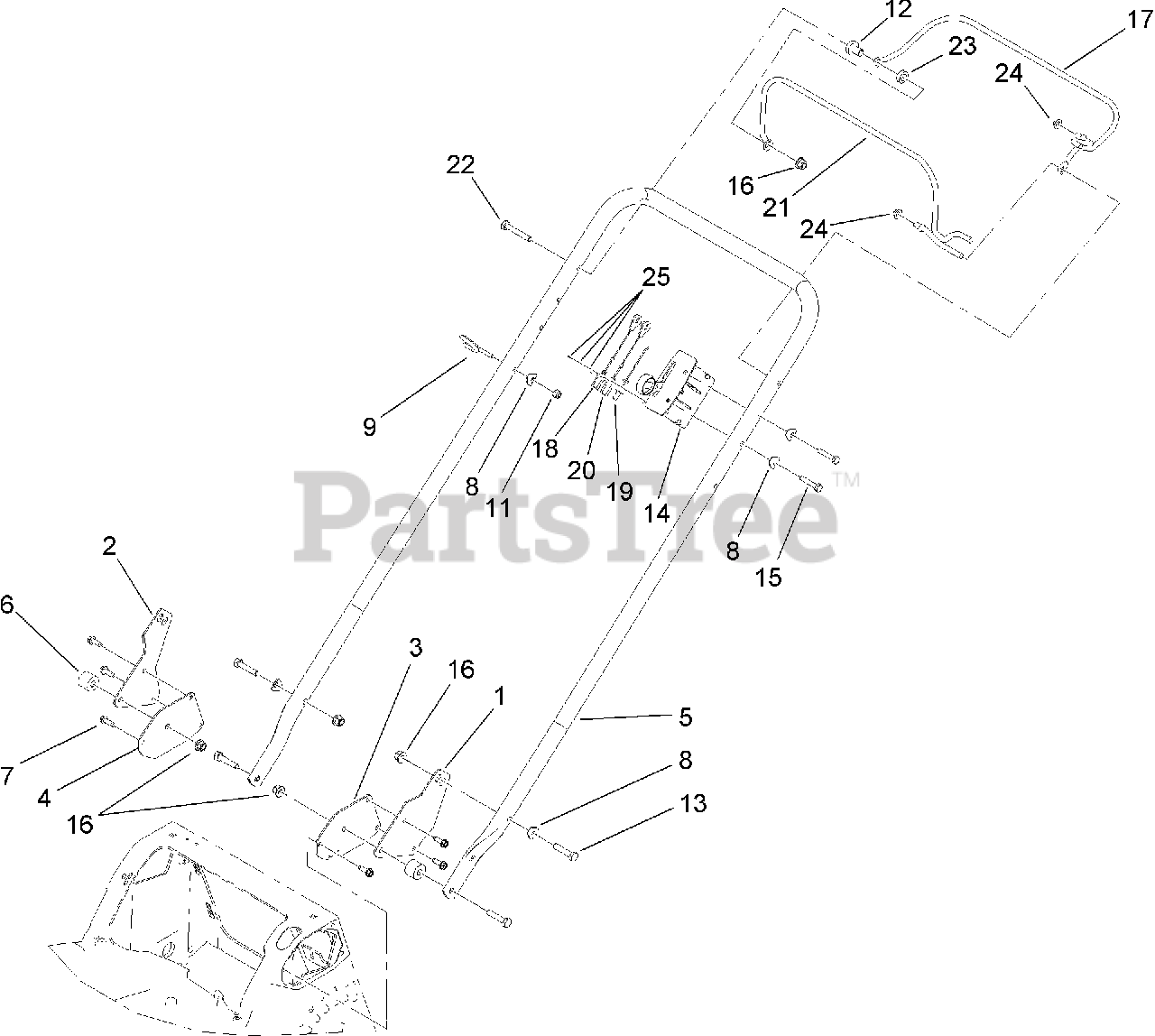

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 110-9494-03

SUPPORT-STRUT, LH

$27.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 110-9495-03

SUPPORT-STRUT, RH

$27.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 114-2760-03

PLATE-HANDLE, TRACTION

$29.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 110-9471-03

PLATE-HANDLE

$12.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 107-4162-03

HANDLE
(Superseded to 119-7892-03)

$

$

Not available

6

Lawn-Boy 112-8797-03

SPACER-STEAMED

$4.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

9

Lawn-Boy 114-2775

GUIDE-ROPE

$10.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

12

Lawn-Boy 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 108-2645

CONTROL-HEAD, THROTTLE

$116.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

16

Lawn-Boy 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 114-2768-03

BAIL-BRAKE

$71.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 114-2771

CABLE-BRAKE

$74.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 110-4923

THROTTLE CABLE ASM

$45.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 114-2770

CABLE-TRACTION

$

$

Not available

21

Lawn-Boy 114-2769-03

BAIL-TRACTION

$54.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

23

Lawn-Boy 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 109-0917

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

25

Lawn-Boy 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0
