22271 - Lawn-Boy 21" Walk-Behind Mower (SN: 270000001 - 270999999) (2007) FLYWHEEL ASSEMBLY HONDA GSV190LA S3A Parts Diagram

21" Walk-Behind Mower

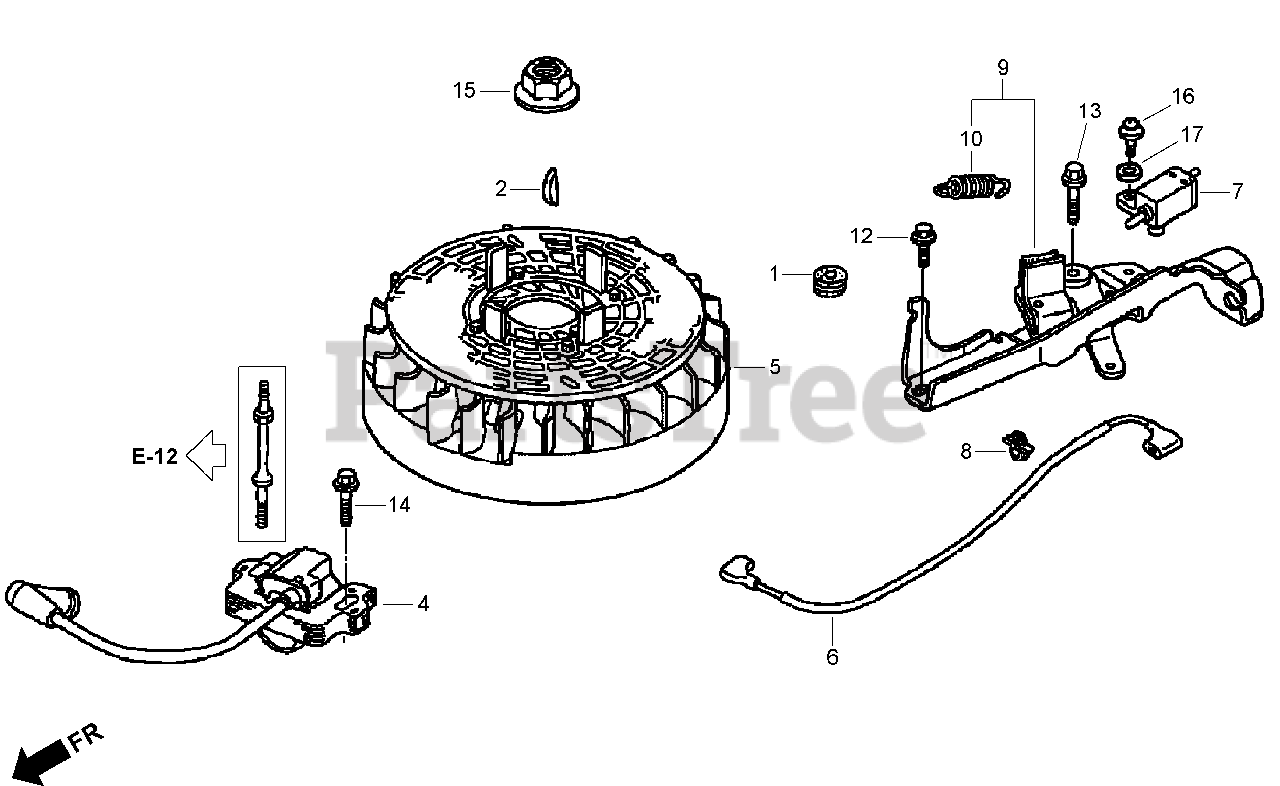

FLYWHEEL ASSEMBLY HONDA GSV190LA S3A Parts Diagram

  • Title
1

Lawn-Boy 11344-MB0-000

GROMMET A-COVER, R R (8X16X6.6)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 13331-357-000

KEY-WOODRUFF, SPECIAL (25X18)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 30500-Z0J-003

IGNITION COIL ASM (PHELON) (USE FOR FLYWHEEL OF PHELON)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 31105-Z0Y-010

FLYWHEEL ASM (PHELON) (USE FOR IGNITION COIL OF PHELON)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 32195-ZM0-800

WIRE-SWITCH, STOP

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 35120-ZM0-003

ENGINE STOP SWITCH ASM (N C)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 51125-Z0L-003

HOLDER-WIRE (FASTEX)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 90681-959-003

CLIP A-CABLE (NIFCO)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 75110-Z0L-800

BRAKE ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 75113-ZM0-000

SPRING-LEVER, BRAKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

12

Lawn-Boy 90014-952-000

BOLT-FLANGE (6X14) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 90018-ZE1-000

BOLT-FLANGE (6X23) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 90022-888-010

BOLT-FLANGE (6X20) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

15

Lawn-Boy 90213-S3Y-000

NUT-FLANGE (14MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

16

Lawn-Boy 93892-04012-00

SCREW-WASHER (4X12)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

17

Lawn-Boy 94103-04000

WASHER-PLAIN (4MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
