22271 - Lawn-Boy 21" Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CYLINDER BARREL ASSEMBLY HONDA GSV190LA S3A Parts Diagram

21" Walk-Behind Mower

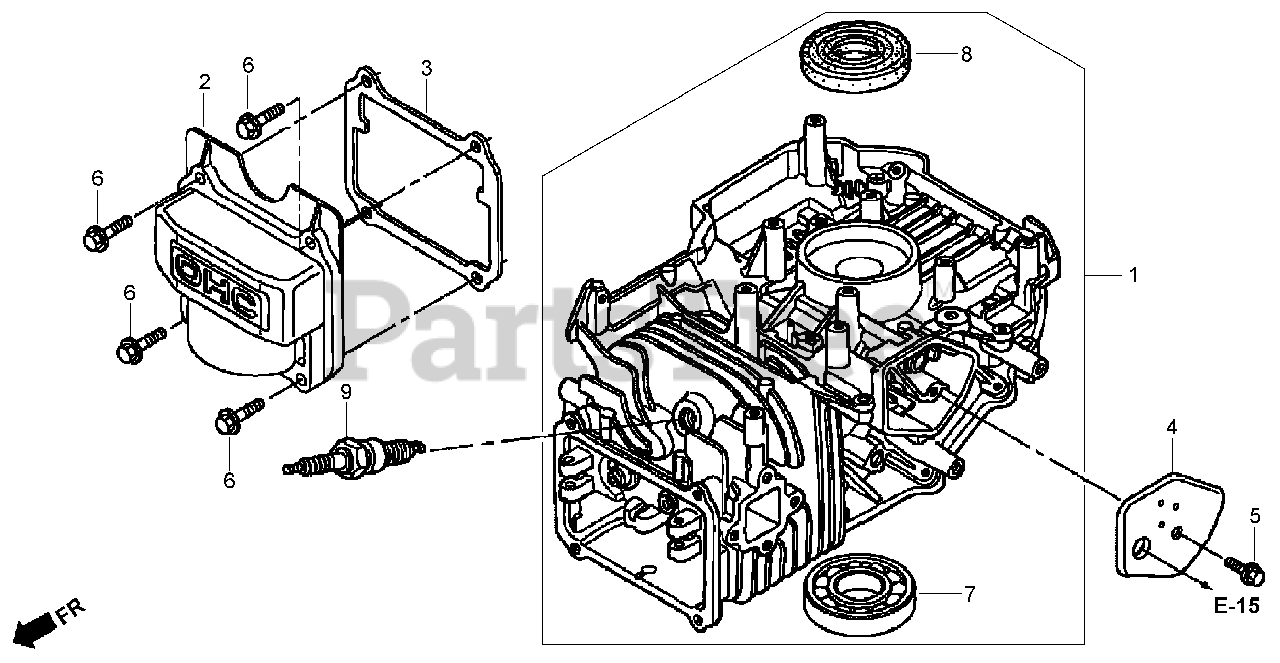

CYLINDER BARREL ASSEMBLY HONDA GSV190LA S3A Parts Diagram

  • Title
1

Lawn-Boy 12000-Z2C-000

CYLINDER ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 12311-Z2A-000

COVER-HEAD, CYLINDER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 12312-Z2A-000

GASKET-COVER, HEAD

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 12355-ZL8-000

COVER-BREATHER (BREATHER VALVE ASM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 90014-952-000

BOLT-FLANGE (6X14) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 90121-952-000

BOLT-FLANGE (6X25) (C T 200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 91001-894-004

BEARING-BALL, RADIAL

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 91201-Z2A-003

SEAL-OIL (25.4X74X6)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 98079-56846

SPARK PLUG (B P R 6E S) (N G K)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
