22271 - Lawn-Boy 21" Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CONTROL ASSEMBLY HONDA GSV190LA S3A Parts Diagram

21" Walk-Behind Mower

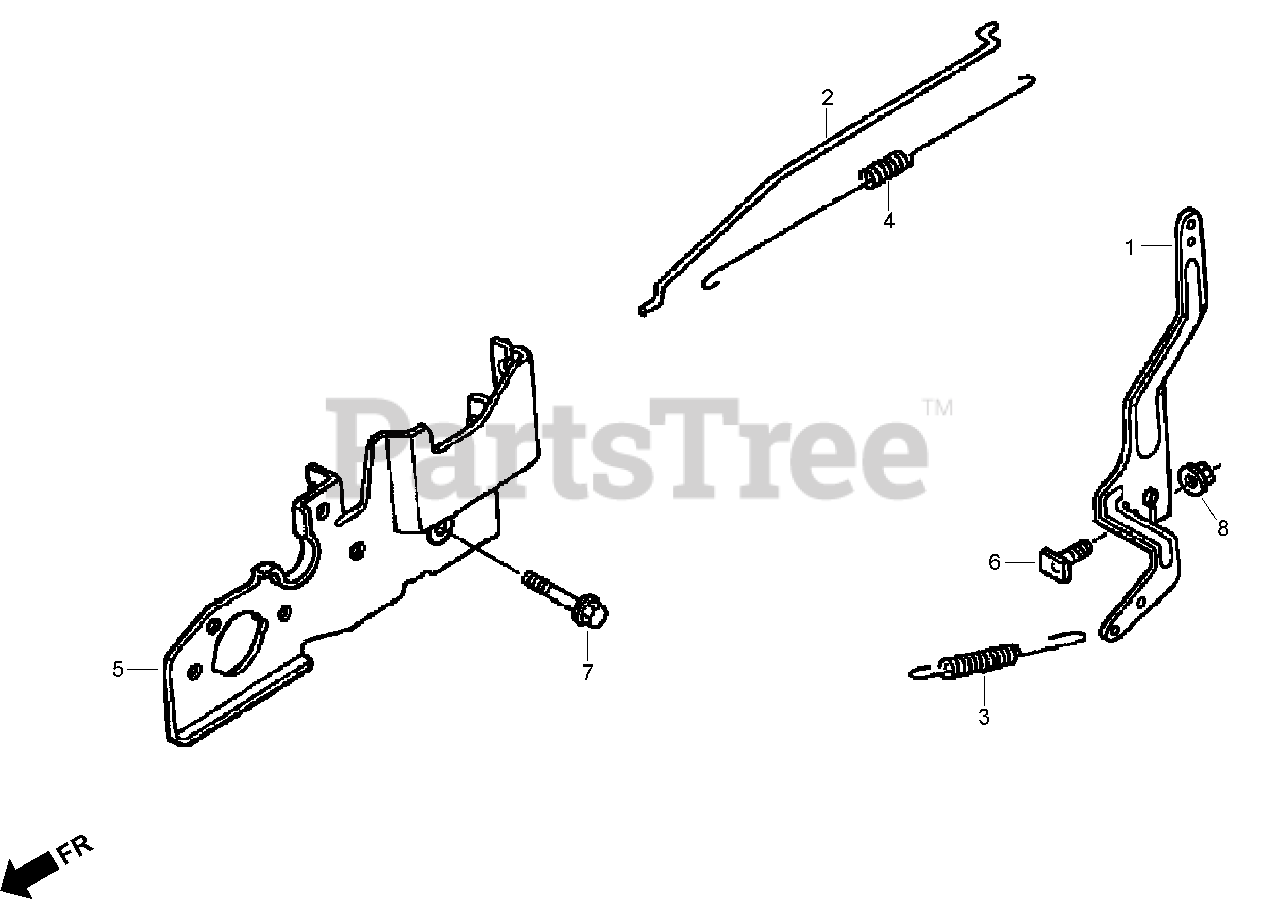

CONTROL ASSEMBLY HONDA GSV190LA S3A Parts Diagram

  • Title
1

Lawn-Boy 16551-ZM0-010

ARM-GOVERNOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 16555-Z0L-800

ROD-GOVERNOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 16561-Z0L-000

SPRING-GOVERNOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 16562-ZM0-000

SPRING-RETURN, THROTTLE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 16580-Z0L-810

BASE-CONTROL

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 90015-ZE5-010

BOLT-ARM, GOVERNOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 90016-ZE8-000

BOLT-FLANGE (6X45) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
