22270 - Toro 21" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) DISCHARGE DOOR ASSEMBLY Parts Diagram

21" Walk-Behind Mower

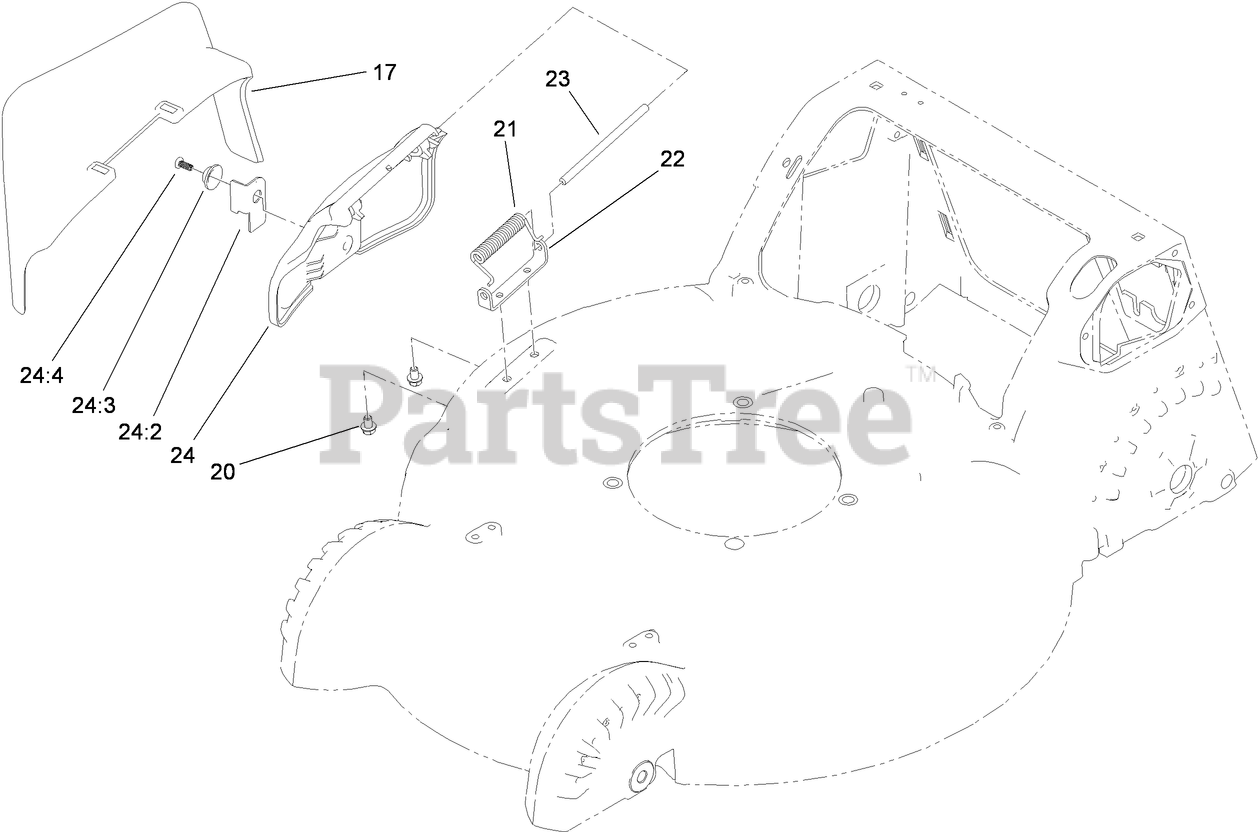

DISCHARGE DOOR ASSEMBLY Parts Diagram

  • Title
17

Toro 105-3028

CHUTE-DISCHARGE, SIDE

$11.99

$

In Stock, Qty 5

0

20

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

21

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

22

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, only 3 left!

0

23

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 14

0

24

Toro 106-8376

DISCHARGE DOOR ASM

$15.99

$

In Stock, only 1 left!

0

24:2

Toro 107-0795

LATCH-DOOR

$1.49

$

In Stock, only 3 left!

0

24:3

Toro 107-7456

CAP-DOOR
(Superseded to 138-3242)

$3.99

$

In Stock, only 4 left!

0

24:4

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0
