22270 - Lawn-Boy 21" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) CARBURETOR ASSEMBLY HONDA GSV190LA A3T Parts Diagram

21" Walk-Behind Mower

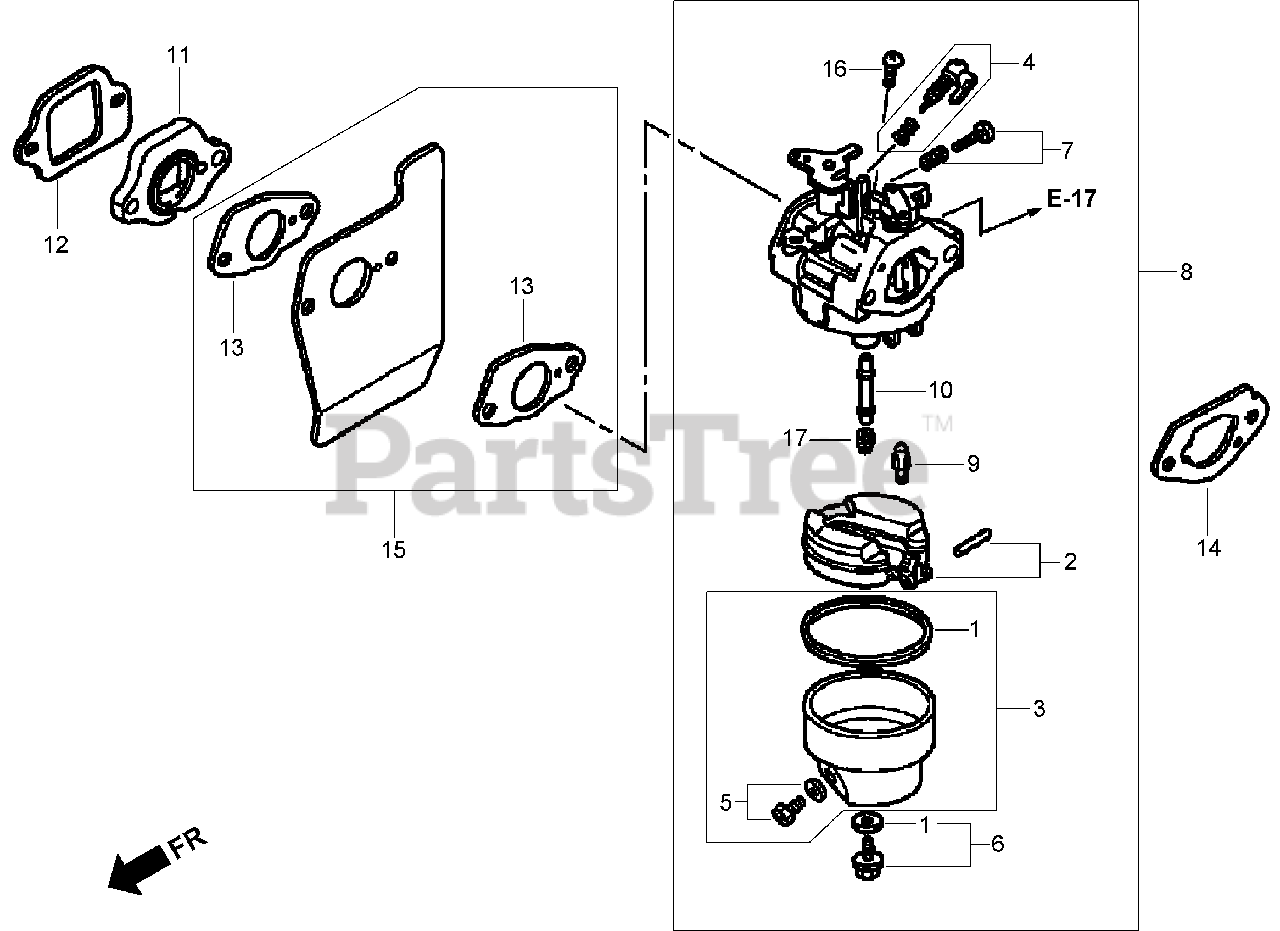

CARBURETOR ASSEMBLY HONDA GSV190LA A3T Parts Diagram

  • Title
1

Lawn-Boy 16010-883-015

GASKET SET

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Lawn-Boy 16013-ZL1-003

FLOAT SET

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

3

Lawn-Boy 16015-887-782

FLOAT CHAMBER SET

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

4

Lawn-Boy 16016-ZG0-W00

SCREW SET

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

5

Lawn-Boy 16024-ZE1-811

DRAIN SCREW SET

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

6

Lawn-Boy 16028-ZE0-005

SCREW SET

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

7

Lawn-Boy 16029-ZG0-901

SCREW SET (THROTTLE STOP)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

8

Lawn-Boy 16100-Z2D-811

CARBURETOR ASM (BB65G A)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

9

Lawn-Boy 16155-ZM0-013

VALVE-FLOAT

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

10

Lawn-Boy 16166-Z0Y-003

NOZZLE-MAIN

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

11

Lawn-Boy 16211-ZL8-000

INSULATOR-CARBURETOR

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

12

Lawn-Boy 16212-ZL8-000

GASKET-INSULATOR

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

13

Lawn-Boy 16221-883-800

GASKET-CARBURETOR

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

14

Lawn-Boy 16228-ZL8-000

GASKET-CARBURETOR

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

15

Lawn-Boy 19650-ZM0-000

GUIDE-AIR

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

16

Lawn-Boy 93500-05006-0H

SCREW-PAN (5X6)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

17

Lawn-Boy 99101-124-0620

JET-MAIN (No.62)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

17

Lawn-Boy 99101-124-0650

JET-MAIN (No.65)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

17

Lawn-Boy 99101-124-0680

JET-MAIN (No.68)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable
