22270 - Lawn-Boy 21" Walk-Behind Mower (SN: 280000001 - 280999999) (2008) REAR WHEEL ASSEMBLY Parts Diagram

21" Walk-Behind Mower

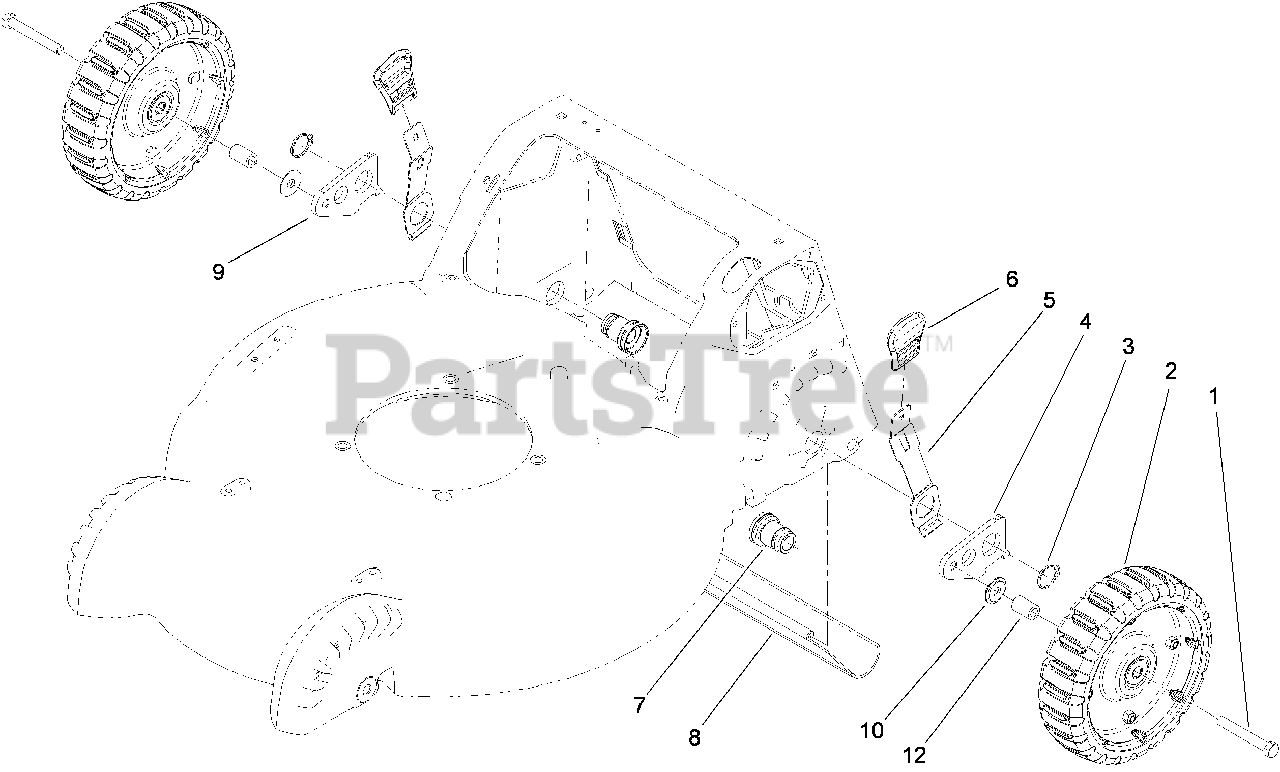

REAR WHEEL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 114-2752

8 INCH WHEEL ASM

$77.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 108-9344

ARM-REAR PIVOT, LH

$12.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 110-9445

ARM-SPRING, REAR

$12.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 110-9422

RETAINER-BEARING

$23.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 112-8768

SHIELD-TRAILING
(Superseded to 120-7010)

$41.99

$

In Stock, Qty 6

0

9

Lawn-Boy 108-9343

ARM-REAR PIVOT, RH

$12.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

12

$11.99

$

In Stock, only 4 left!

0
