22270 - Lawn-Boy 21" Walk-Behind Mower (SN: 280000001 - 280999999) (2008) MUFFLER ASSEMBLY HONDA GSV190LA A3T Parts Diagram

21" Walk-Behind Mower

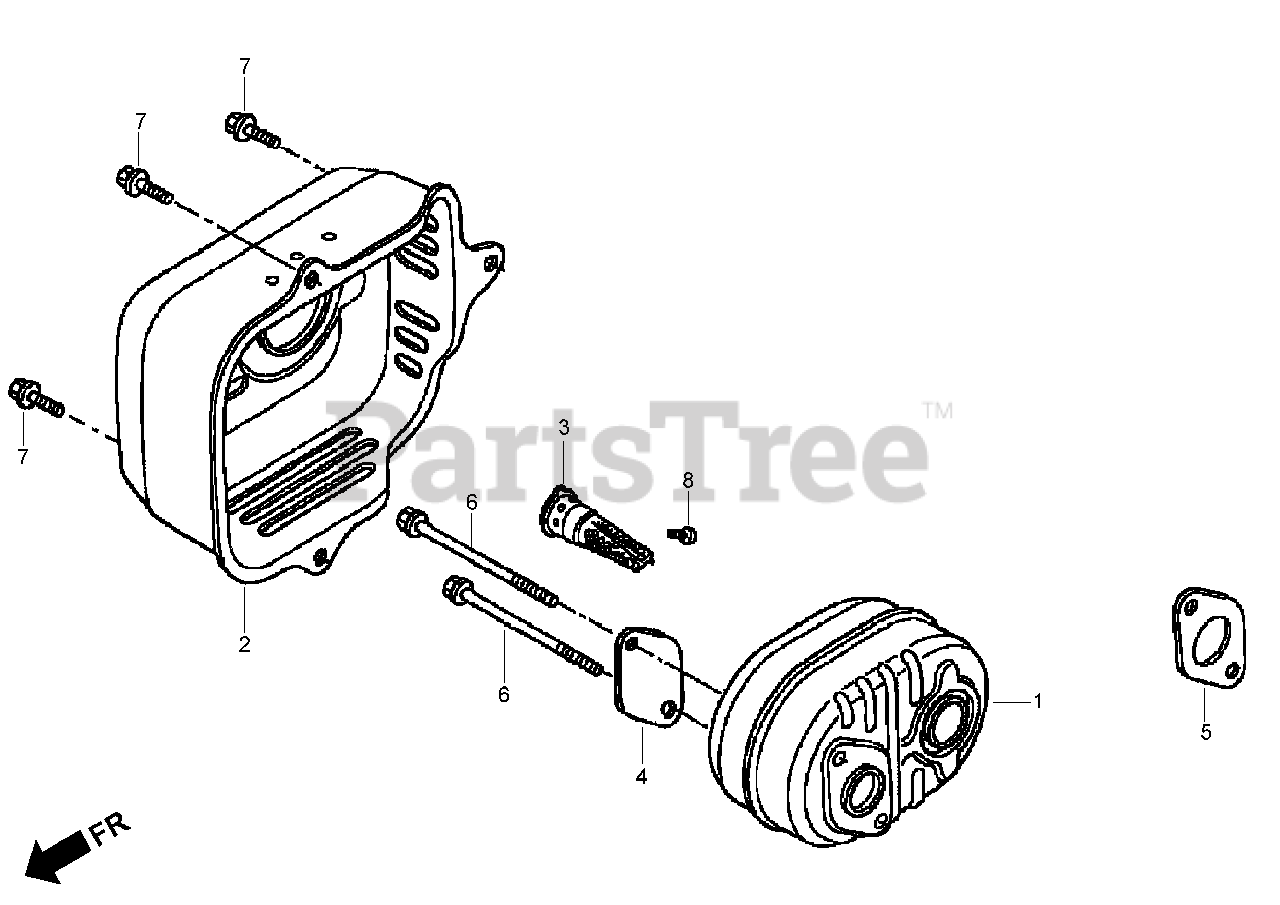

MUFFLER ASSEMBLY HONDA GSV190LA A3T Parts Diagram

  • Title
1

Lawn-Boy 18310-Z0Y-000

MUFFLER

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Lawn-Boy 18321-Z0L-J00

PROTECTOR-MUFFLER

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

3

Lawn-Boy 18350-ZL8-000

ARRESTER-SPARK

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

4

Lawn-Boy 18356-ZL8-000

PLATE-NUMBER, ARRESTER

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

5

Lawn-Boy 18381-ZL8-305

GASKET-MUFFLER

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

6

Lawn-Boy 90004-ZL8-000

BOLT-FLANGE (6X79) (C T200)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

7

Lawn-Boy 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

8

Lawn-Boy 90055-ZE1-000

SCREW-TAPPING (4X6)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable
