22265x8J - Scotts 22" Walk-Behind Mower (2004) Mulcher Models Parts Diagram

22" Walk-Behind Mower

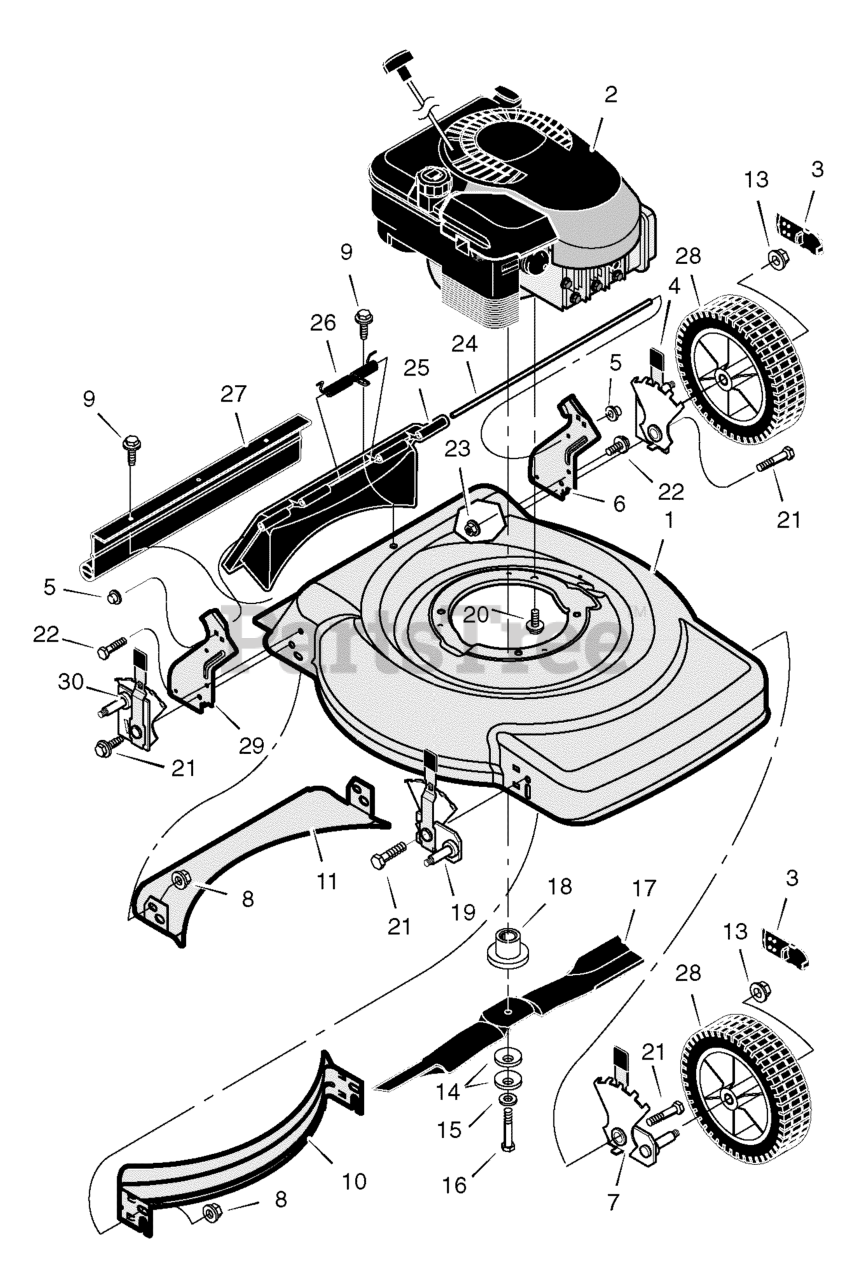

Mulcher Models Parts Diagram

  • Title
1

Murray 7501001

Housing

$

$

Currently unavailable

2

Engine *

$

$

Not available

3

Murray 43615

Cap, Hub (Optional)

$4.49

$

Usually ships in 2-12 days

0

4

Murray 1101901

Adjuster, Left Rear Height

$

$

Currently unavailable

5

Murray 028X49

Push On Cap

$3.99

$

In Stock, Qty 13

0

6

Murray 1102075E700

Bracket, Left Handle

$

$

Currently unavailable

7

Murray 1101899

Adjuster, Left Front Height

$

$

Currently unavailable

8

Murray 015X68

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

$4.49

$

In Stock, Qty 6

0

10

Murray 672915E700

Baffle, Front

$

$

Currently unavailable

11

Murray 672916E700

Baffle, Rear

$

$

Currently unavailable

13

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

Murray 17X124

Washer

$

$

Not available

16

$4.49

$

Usually ships in 2-12 days

0

$

$

Not available

18

Murray 672503

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 1101898

Adjuster, Right Front Height

$

$

Currently unavailable

20

Murray 0025X6

Bolt, Engine
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

21

$3.49

$

Usually ships in 2-12 days

0

22

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

23

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X21

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

25

Murray 672611

Door, Rear (Black)

$95.99

$

Usually ships in 2-12 days

0

--

Murray 672613

Door, Rear (Gray)

$49.99

$

Usually ships in 2-12 days

0

26

Murray 166X44

Spring

$14.99

$

In Stock, only 1 left!

0

27

Murray 1101105

Guard, Rear

$

$

Not available

28

Wheel & Tire *

$

$

Not available

29

Murray 1102074E700

Bracket, Right Handle

$40.99

$

Usually ships in 2-12 days

0

30

Murray 1101900

Adjuster, Right Rear Height

$

$

Not available

--

Murray F-040461L

Instruction Book

$

$

Currently unavailable
