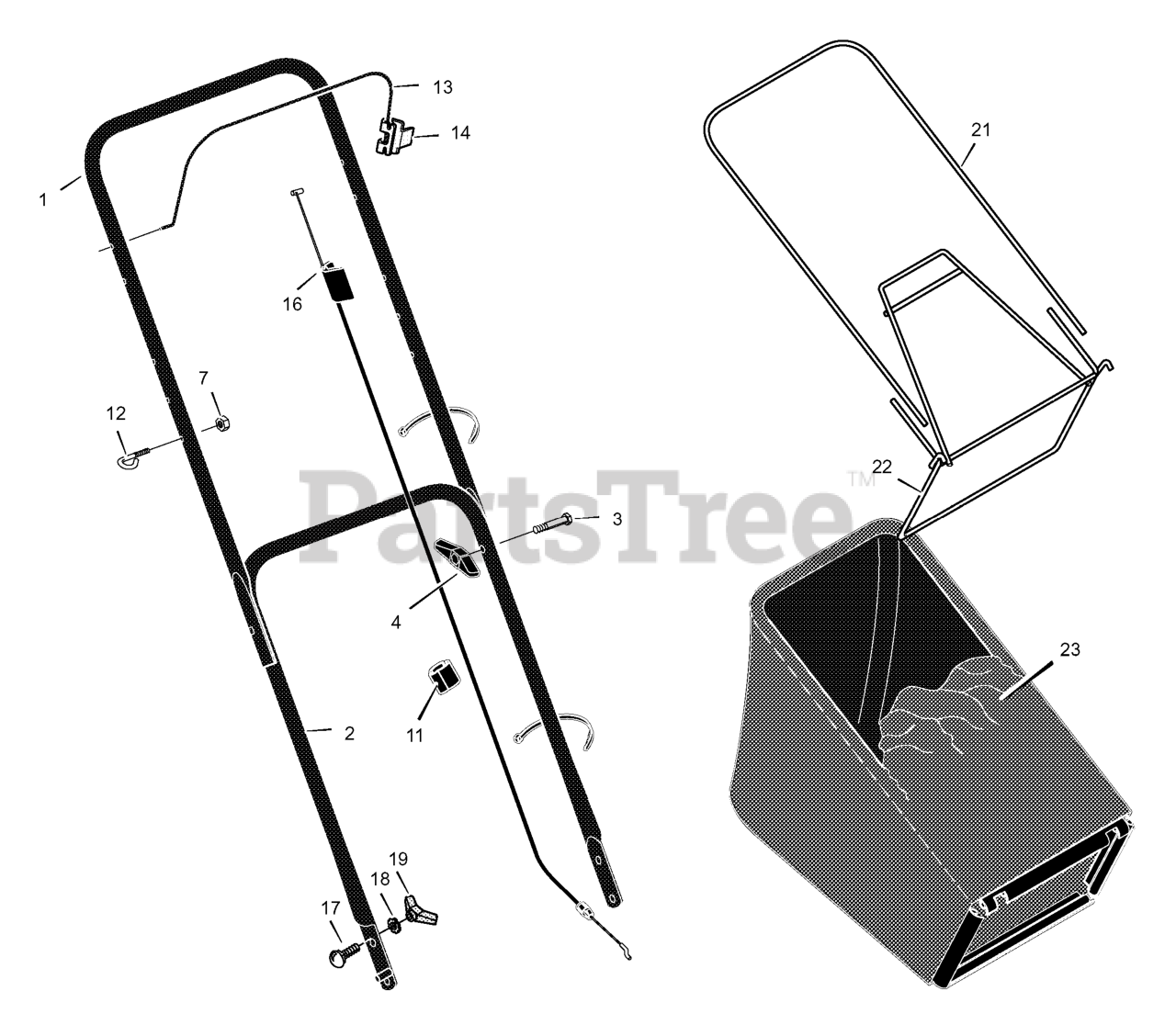

22265X31B - Scotts 22" Walk-Behind Mower (2001) Handle & Bag Assembly Parts Diagram

22" Walk-Behind Mower

Handle & Bag Assembly Parts Diagram

  • Title

1

Murray 71581E724

Handle, Upper (Gray)

$

$

Currently unavailable

2

Murray 672906E724MA

Handle, Lower (Gray)
(Superseded to 672906E701MA)

$142.99

$

Usually ships in 2-12 days

0

3

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

4

Murray 071294

Knob, Plastic
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

7

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Murray 1101352

Clip, Cable

$5.99

$

In Stock, only 2 left!

0

12

Murray 7153043956

Guide, Rope

$

$

Currently unavailable

13

Murray 043653E701MA

Engine Stop Lever

$34.99

$

Usually ships in 2-12 days

0

14

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

16

Murray 1101363MA

Engine Stop Cable

$18.99

$

Usually ships in 2-12 days

0

17

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

18

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

19

Murray 071495MA

Knob, Plastic

$4.99

$

In Stock, only 3 left!

0

19

Murray 26X268MA

Screw

$3.99

$

Usually ships in 2-12 days

0

20

Murray 042294

Clamp

$

$

Not available

21

Murray 1101075MA

Frame, Top

$113.99

$

Usually ships in 2-12 days

0

22

Murray 1101074MA

Frame Assembly

$71.99

$

In Stock, only 1 left!

0

23

Murray 1101035MA

Bag, Cloth

$

$

Not available
