22261 - Toro Walk-Behind Mower (SN: 240000001 - 240999999) (2004) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

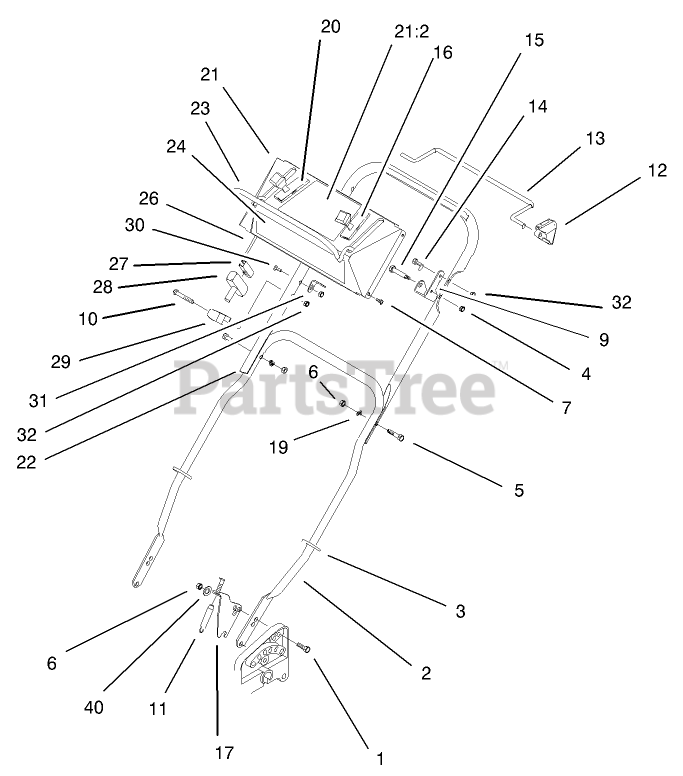

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3230-29

SCREW-CARR

$2.99

$

In Stock, Qty 12

0

2

Toro 100-2890-05

HANDLE-LOWER

$

$

Not available

3

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

4

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 92-9665

SCREW-TAP

$1.99

$

In Stock, only 4 left!

0

9

Toro 92-1094

BRACKET-STOP, BAIL

$36.99

$

Usually ships in 3-6 days

0

10

Toro 321-51

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

11

Toro 100-5981

CABLE-TRACTION

$51.99

$

In Stock, only 4 left!

0

12

Toro 92-5412

STOP-PIVOT
(Superseded to 107-0757)

$4.49

$

In Stock, only 1 left!

0

13

Toro 92-1001-03

BAIL-CONTROL

$50.99

$

In Stock, only 1 left!

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 613050

BOLT

$11.99

$

Usually ships in 3-6 days

0

16

Toro 100-5985

CONTROL ASM-THROTTLE

$

$

Not available

17

Toro 92-7899-03

BRACKET-CABLE, TRACTION

$9.99

$

In Stock, only 1 left!

0

19

Toro 609739

WASHER-CURVED

$3.49

$

In Stock, Qty 10

0

20

Toro 100-5984

CONTROL ASM-GROUND SPEED

$93.99

$

Usually ships in 3-6 days

0

21

Toro 100-8799

CONTROL PANEL ASM

$

$

Not available

21:2

Toro 98-4469

DECAL - CONTROL PANEL

$11.99

$

In Stock, Qty 8

0

22

Toro 100-2892-05

HANDLE-UPPER

$148.99

$

Usually ships in 3-6 days

0

23

Toro 92-1093

BAIL-ENGINE CONTROL

$

$

Not available

24

Toro 93-0297

DECAL - CONSOLE

$25.99

$

In Stock, Qty 9

0

26

Toro 100-5986

BRAKE CABLE ASM

$91.99

$

Usually ships in 3-6 days

0

27

Toro 612824

CLIP-STARTER

$3.99

$

In Stock, Qty 10

0

28

Toro 612825

HANDLE-START
(Superseded to 81-1630)

$18.99

$

In Stock, only 1 left!

0

29

Toro 93-7383

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

30

Toro 92-2268

SCREW-HANDLE

$2.99

$

In Stock, only 1 left!

0

31

Toro 92-2928

BRACKET-ANCHOR, CABLE

$13.99

$

Usually ships in 3-6 days

0

32

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
