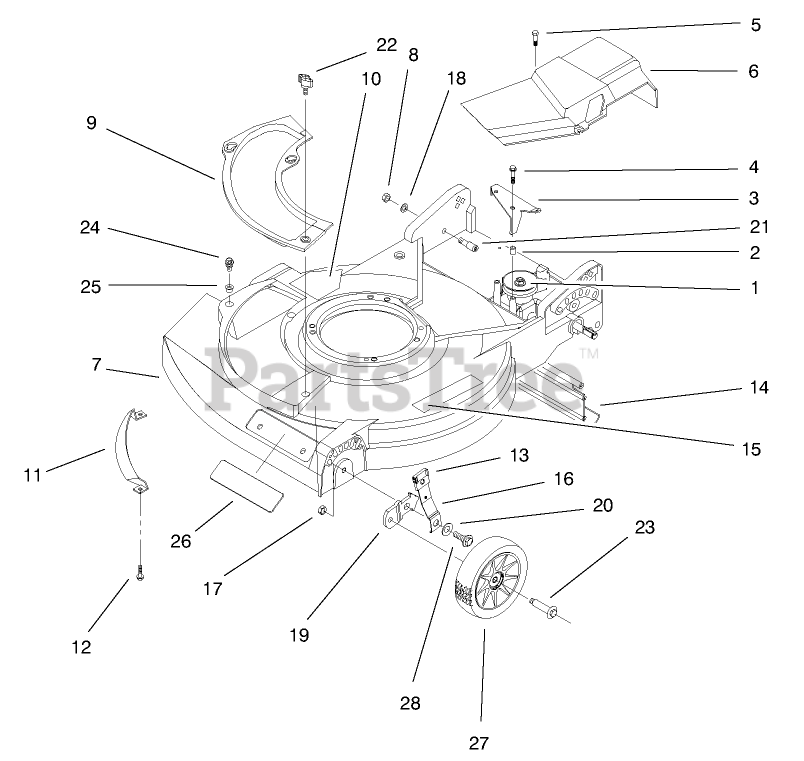

22261 - Toro Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 92-7869

GEAR CASE ASM

$

$

Not available

2

Toro 46-5551

SPACER

$2.49

$

In Stock, only 2 left!

0

3

Toro 92-7699-03

BRACKET-ACTUATOR

$12.99

$

Usually ships in 3-6 days

0

4

Toro 92-7748

SCREW
(Superseded to 36-3860)

$2.49

$

In Stock, Qty 15

0

5

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

6

Toro 98-4493

COVER-DRIVE

$47.99

$

Usually ships in 3-6 days

0

7

Toro 99-5202

HOUSING-ASM

$

$

Not available

8

Toro 610358

NUT-JAM, LOCKING

$2.99

$

In Stock, only 2 left!

0

9

Toro 95-7052

PLATE-OPENING, CHUTE

$36.99

$

In Stock, only 1 left!

0

10

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

11

Toro 608175

BAR-TOE

$77.99

$

Usually ships in 3-6 days

0

12

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

13

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$14.99

$

In Stock, only 2 left!

0

14

Toro 92-7736

SHIELD-TRAILING

$40.99

$

In Stock, only 3 left!

0

15

Toro 93-7250

DECAL-WARNING

$15.99

$

In Stock, only 2 left!

0

16

Toro 92-1006

FRONT SPRING ARM ASM

$12.99

$

In Stock, only 2 left!

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

19

Toro 614637-03

Bracket-Wheel Height Adj
(Superseded to 95-7403-03)

$

$

Not available

20

Toro 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

21

Toro 92-9673

BOLT-SHOULDER

$7.49

$

In Stock, only 2 left!

0

22

Toro 98-8332

KNOB

$5.49

$

In Stock, Qty 16

0

23

Toro 603567

BOLT

$15.99

$

In Stock, only 2 left!

0

24

Toro 614677

SCREW-SEMS

$4.49

$

In Stock, Qty 12

0

25

Toro 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 9

0

26

Toro 94-6303

DECAL-DECK

$

$

Not available

27

Toro 684159

WHEEL AND TIRE ASM

$77.99

$

Usually ships in 3-6 days

0

28

Toro 92-4856

BOLT-SHOULDER

$76.99

$

Usually ships in 3-6 days

0
