22261 - Lawn-Boy Walk-Behind Mower (SN: 240000001 - 240999999) (2004) SHORT BLOCK ASSEMBLY Parts Diagram

Walk-Behind Mower

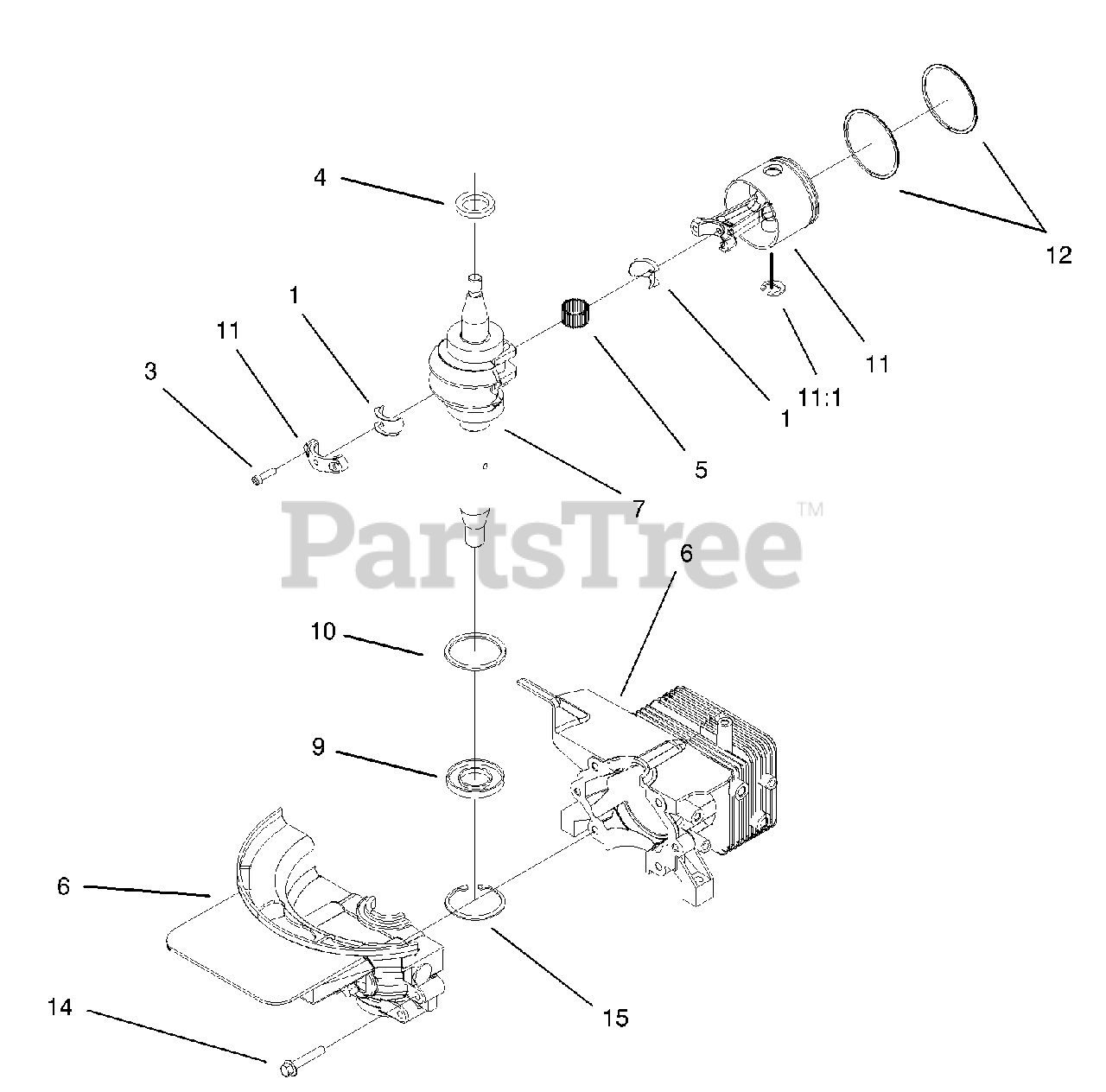

SHORT BLOCK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 677982

LINER ASM

$46.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 609790

SEALER-LOCTITE 50CC

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 610372

SEALER-LOCTITE 6CC

Note: Not illustrated

$27.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 611393

SCREW-HSH

$22.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 611396

SEAL-OIL

$6.99

$

In Stock, only 3 left!

0

5

Lawn-Boy 683911

BEARING-NEEDLE

$23.99

$

In Stock, Qty 5

0

6

Lawn-Boy 95-7631

CYLINDER AND CRANKCASE ASM

$

$

Not available

6

Cylinder And Crankcase ASM

$

$

Not available

6:1

Lawn-Boy 602587

PLATE-BACKUP, REED

Note: Not illustrated

$3.49

$

Usually ships in 3-6 days

0

6:2

Lawn-Boy 602588

REED-CARBURETOR

Note: Not illustrated

$

$

Not available

6:3

Lawn-Boy 612872

SCREW-HH

Note: Not illustrated

$2.49

$

In Stock, Qty 5

0

7

Lawn-Boy 99-2920

CRANKSHAFT AND BEARING ASM

$312.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 94-5764

SEAL-OIL

$12.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 94-5765

RING-RET. EX

$

$

Not available

11

Lawn-Boy 100-2915

Piston&rod Ay
(Superseded to 100-2916)

$

$

Not available

11:1

Lawn-Boy 303712

RING-RETAINING

$3.49

$

In Stock, Qty 11

0

11:5

Lawn-Boy 100-2916

PISTON AND RINGS ASM

Note: Not illustrated

$

$

Not available

12

Lawn-Boy 100-2917

SET-RING

$107.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 94-5781

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 98-7046

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 19

0
