22261 - Lawn-Boy Walk-Behind Mower (SN: 240000001 - 240999999) (2004) AXLE ASSEMBLY NO. 92-7869 Parts Diagram

Walk-Behind Mower

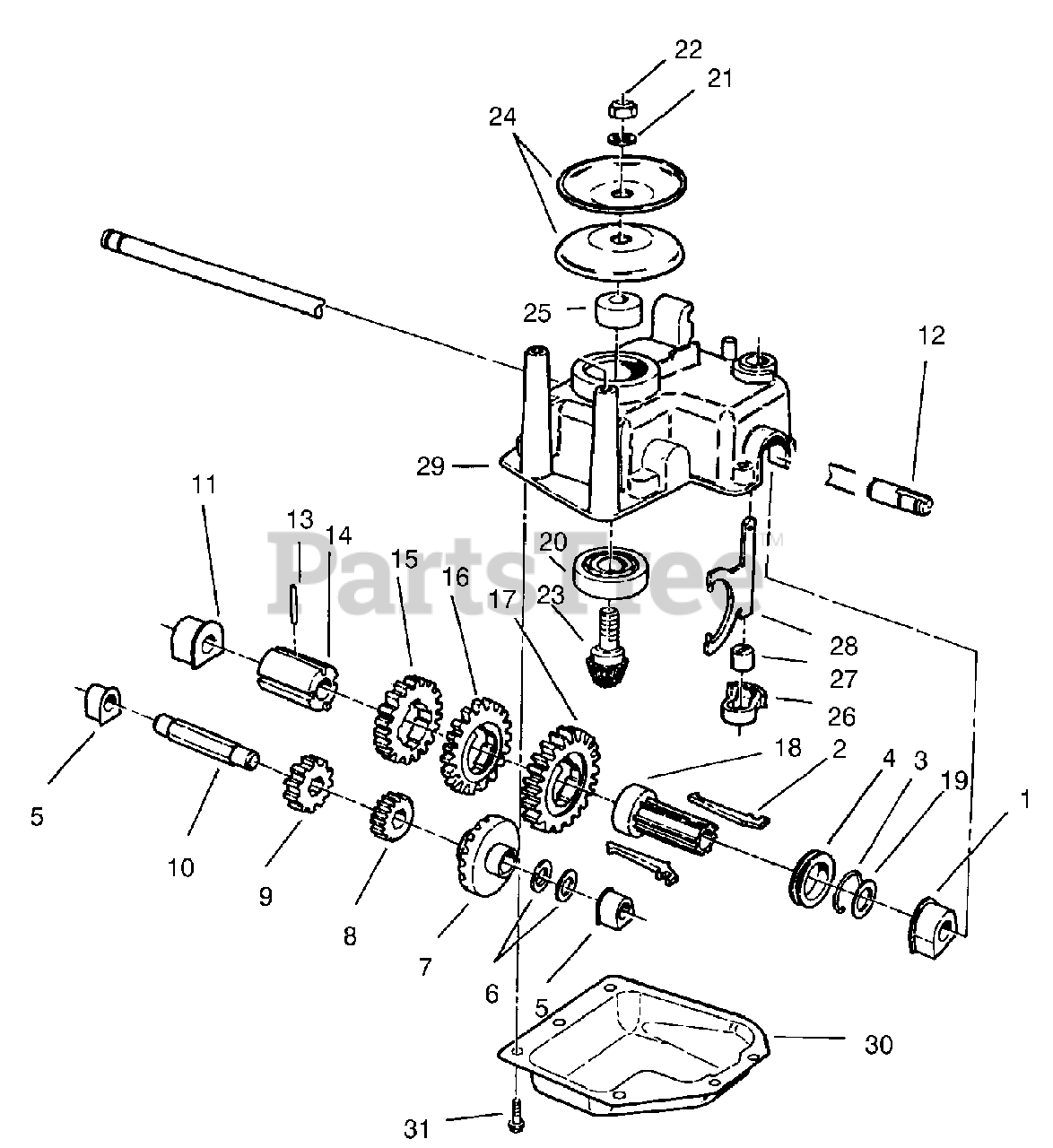

AXLE ASSEMBLY NO. 92-7869 Parts Diagram

  • Title
1

Lawn-Boy 60-8770

BUSHING-OUTPUT

$7.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 76-0760

KEY-SHIFT

$

$

Not available

3

Lawn-Boy 65-5250

CLIP-SPRING

$0.99

$

In Stock, Qty 15

0

4

Lawn-Boy 76-0770

COLLAR-SHIFT

$21.99

$

In Stock, only 1 left!

0

5

$6.99

$

In Stock, Qty 10

0

6

Lawn-Boy 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 104-7668

GEAR-15T SPUR, 37T BEVEL

$34.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 55-3780

PINION-20 T

$40.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 55-3800

PINION-25 T

$46.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 60-8800

Shaft-Intermedia
(Superseded to 614696)

$108.99

$

Usually ships in 3-6 days

0

11

$8.49

$

In Stock, Qty 17

0

12

Lawn-Boy 65-4770

SHAFT-OUTPUT

$177.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 7

0

14

Lawn-Boy 60-8790

SLEEVE-GEAR

$58.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 55-3810

GEAR-39 T

$58.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 55-3790

GEAR-44 T

$73.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 55-3770

GEAR-49 T

$73.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 76-0780

SLEEVE-KEY, SHIFT

$6.99

$

In Stock, only 3 left!

0

19

$7.99

$

In Stock, Qty 12

0

20

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 3296-5

NUT-LOCK, NI

$3.49

$

In Stock, Qty 8

0

23

$16.99

$

In Stock, Qty 7

0

24

Lawn-Boy 100-1176

PULLEY-HALF

$9.99

$

In Stock, only 2 left!

0

25

$10.99

$

In Stock, Qty 17

0

26

Lawn-Boy 60-8810

RETAINER-FORK, SHIFT

$

$

Not available

27

Lawn-Boy 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

28

Lawn-Boy 60-8870

YOKE-SHIFT

$23.99

$

In Stock, only 2 left!

0

29

Lawn-Boy 60-8710

CASE-GEAR, UPPER

$

$

Not available

30

Lawn-Boy 60-8730-03

COVER-CASE, GEAR

$

$

Not available

31

Lawn-Boy 49-2040

SCREW-TAPPING

$2.49

$

In Stock, Qty 20+

0
