22261 - Lawn-Boy Walk-Behind Mower (SN: 009900001 - 009999999) (1999) SHORT BLOCK ASSEMBLY Parts Diagram

Walk-Behind Mower

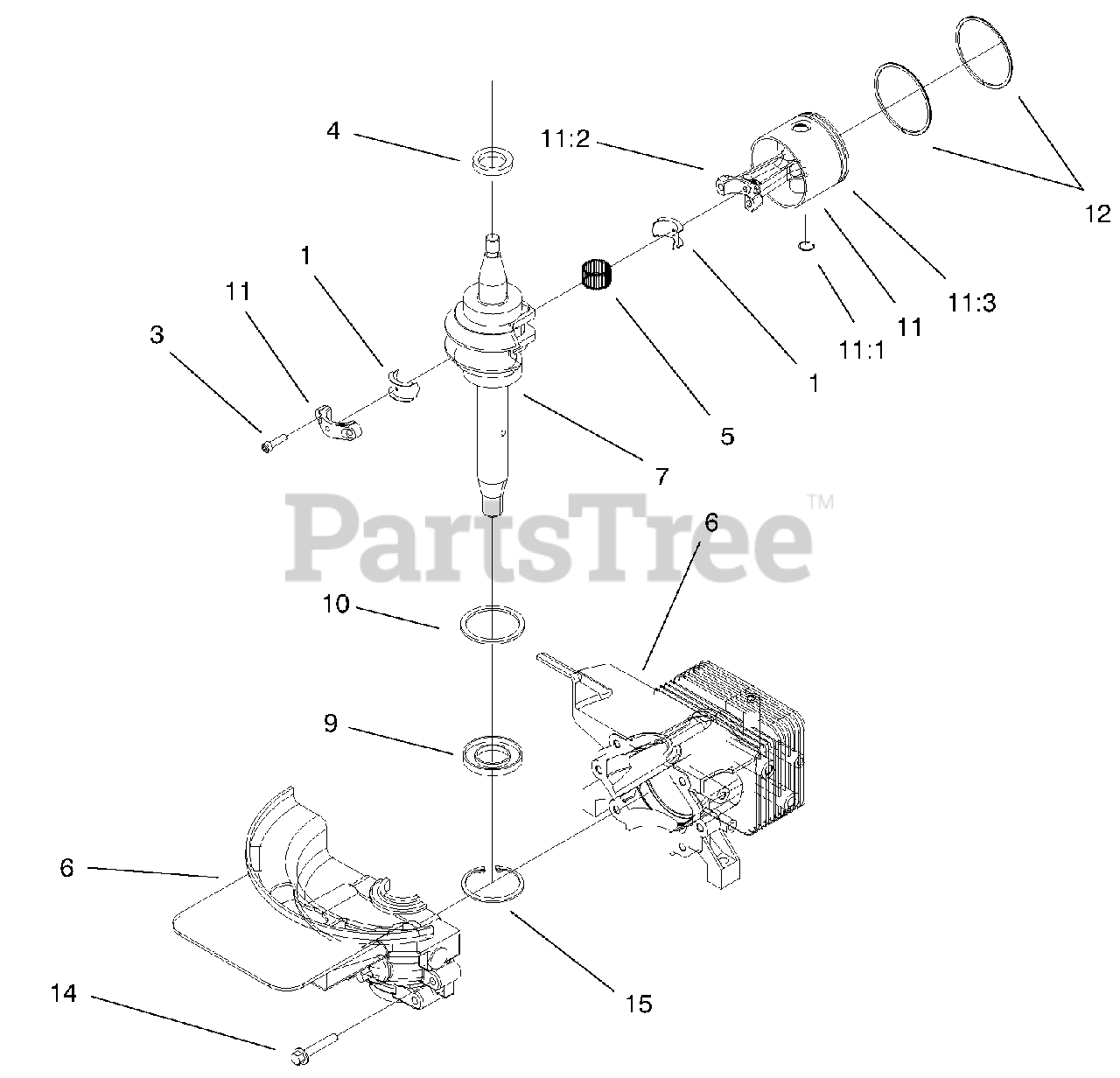

SHORT BLOCK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 677982

Liner Ay

$46.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 609790

Sealant-50cc #2

$62.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 610372

Sealer-Loctite

$27.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 611393

Screw-Rod

$22.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 611396

Seal- Oil

$6.99

$

In Stock, only 3 left!

0

5

Lawn-Boy 683911

Bearing-Needle

$23.99

$

In Stock, Qty 5

0

6

Lawn-Boy 95-7631

Cylinder And Crankcase ASM

$

$

Not available

7

Lawn-Boy 99-2920

Crankshaft And Bearing ASM For Service

$312.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 94-5764

Seal-Oil

$12.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 94-5765

Ring-Retaining

$

$

Not available

11

Piston&rod Ay

$

$

Not available

11:1

Lawn-Boy 303712

Ring-Retaining

$3.49

$

In Stock, Qty 11

0

11:2

Lawn-Boy 95-7629

Connecting Rod ASM

$152.99

$

Usually ships in 3-6 days

0

11:3

Lawn-Boy 95-7628

Piston ASM With Piston Rings
(Superseded to 100-2916)

$

$

Not available

12

Lawn-Boy 95-7626

Ring Set-Service
(Superseded to 100-2916)

$

$

Not available

14

Lawn-Boy 94-5781

Screw

$6.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 98-7046

Ring-Retaining
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 19

0
