22261 - Lawn-Boy Walk-Behind Mower (SN: 008900001 - 008999999) (1998) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

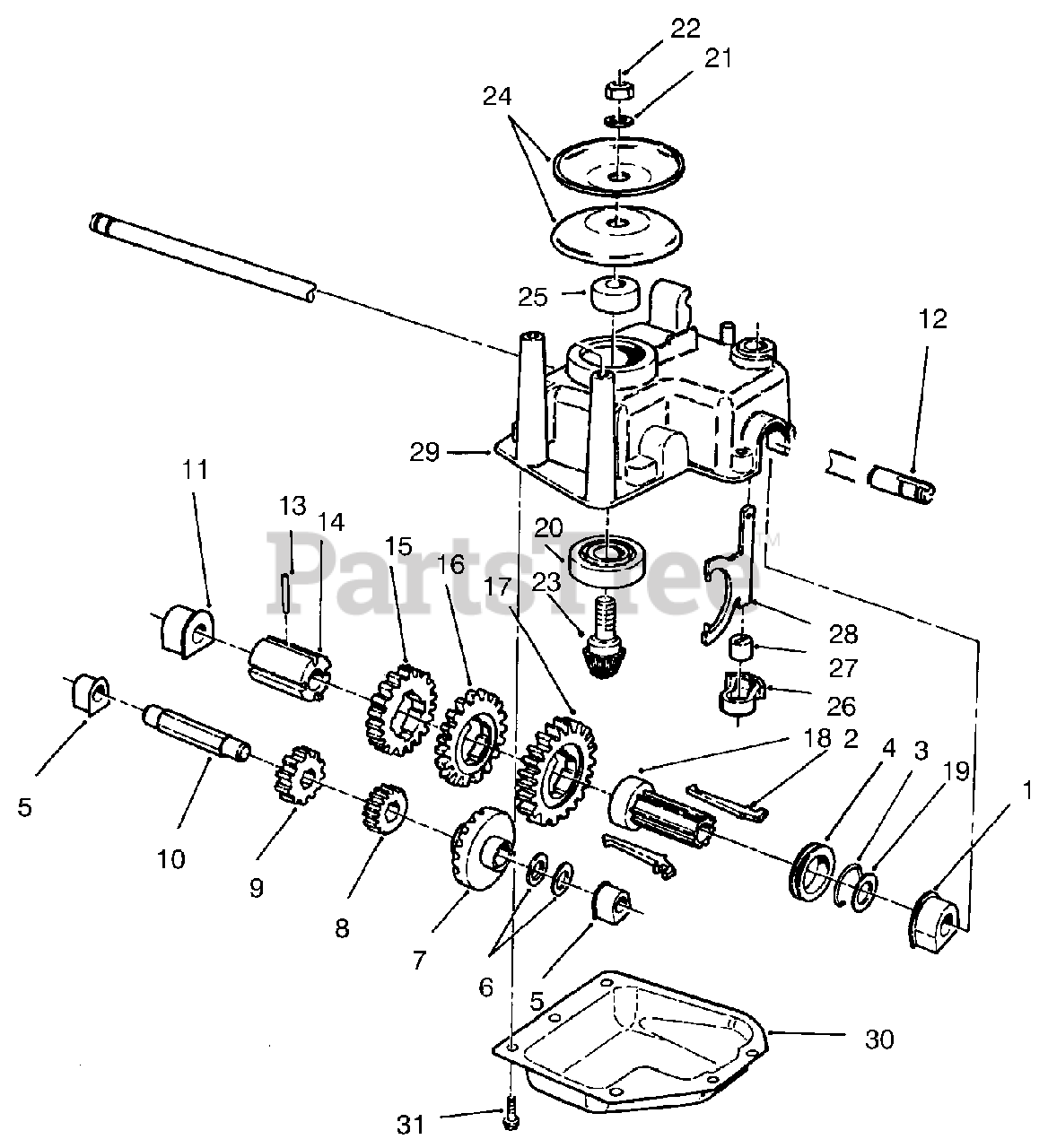

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 60-8770

Bushing-Output Shaft

$7.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 76-0760

Key-Shift

$

$

Not available

3

Lawn-Boy 65-5250

Clip-Spring

$0.99

$

In Stock, Qty 15

0

4

Lawn-Boy 76-0770

Collar-Shift

$21.99

$

In Stock, only 1 left!

0

5

$6.99

$

In Stock, Qty 10

0

6

Lawn-Boy 36-4791

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 55-3760

15 T Pinion
(Superseded to 104-7668)

$34.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 55-3780

Pinion 20t 2nd Gear

$40.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 55-3800

Pinion 25t 3rd Gear

$46.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 60-8800

Shaft-Intermediate
(Superseded to 614696)

$108.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 60-8850

Bushing-Output

$8.49

$

In Stock, Qty 17

0

12

Lawn-Boy 65-4770

Shaft-Output

$177.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 3285-19

Pin-Spirol

$2.99

$

In Stock, Qty 7

0

14

Lawn-Boy 60-8790

Sleeve-Gear

$58.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 55-3810

Gear 39t 3rd Gear

$58.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 55-3790

Gear 44t 2nd Gear

$73.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 55-3770

Gear 49t 1st Gear

$73.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 76-0780

Sleeve-Shift Key

$6.99

$

In Stock, only 3 left!

0

19

Lawn-Boy 36-4780

Washer-Thrust

$7.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 38-7820

Bearing-Ball

$13.99

$

In Stock, Qty 18

0

21

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 14

0

22

Lawn-Boy 3296-5

Nut-Lock

$3.49

$

In Stock, Qty 8

0

23

Lawn-Boy 92-5790

Pinion-Bevel

$16.99

$

In Stock, Qty 7

0

24

Lawn-Boy 60-8840

Pulley-Half
(Superseded to 100-1176)

$9.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 92-5791

Spacer-Pulley

$10.99

$

In Stock, Qty 17

0

26

Lawn-Boy 60-8810

Retainer-Shift-Fork

$

$

Not available

27

Lawn-Boy 29-9570

Bushing-Yoke

$11.99

$

In Stock, only 4 left!

0

28

Lawn-Boy 60-8870

Yoke-Shift

$23.99

$

In Stock, only 2 left!

0

29

Lawn-Boy 60-8710

Gearcase-Upper 3 Sp

$

$

Not available

30

Lawn-Boy 60-8730

Cover-Gearcase
(Superseded to 60-8730-03)

$

$

Not available

31

Lawn-Boy 49-2040

Screw-HH

$2.49

$

In Stock, Qty 20+

0
