22260 - Toro Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

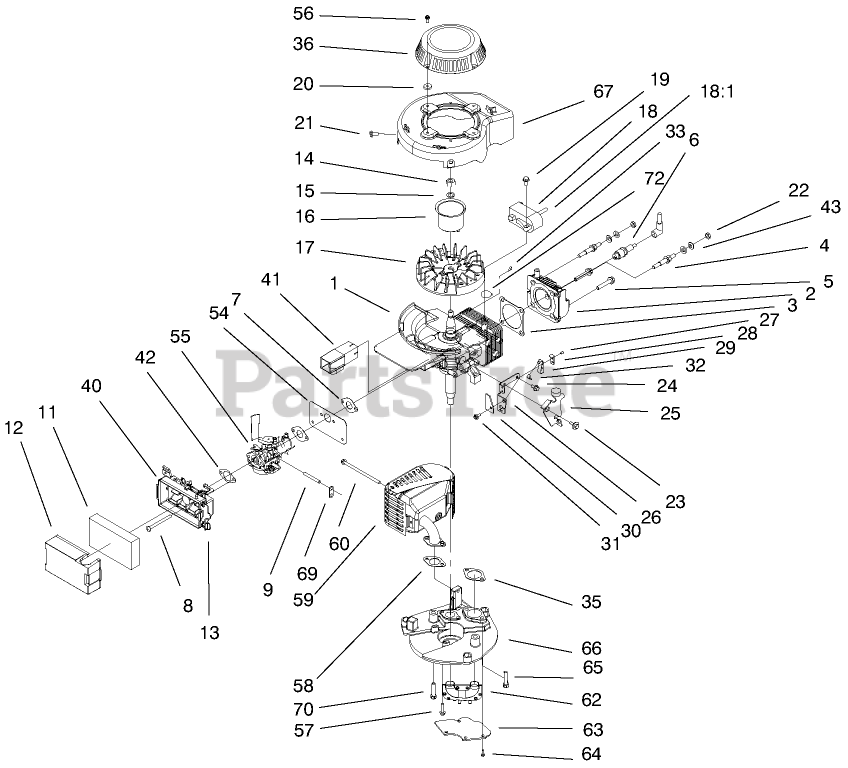

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-7636

SHORT BLOCK ASM

$

$

Not available

2

Toro 94-5776

HEAD-CYLINDER

$60.99

$

Usually ships in 3-6 days

0

3

Toro 94-5778

GASKET-HEAD

$10.99

$

In Stock, only 1 left!

0

4

Toro 94-5779

STUD

$9.99

$

In Stock, only 2 left!

0

5

Toro 94-5780

SCREW-HWH

$8.49

$

In Stock, only 1 left!

0

6

Toro 50-1170

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

7

Toro 94-5795

GASKET-INTAKE

$2.99

$

In Stock, Qty 18

0

8

Toro 612507

SCREW

$4.99

$

In Stock, only 4 left!

0

9

Toro 44-3170

HOSE-PRIMER

$9.49

$

In Stock, only 1 left!

0

11

Toro 95-5574

FILTER-AIR
(Superseded to 107-4622)

$7.99

$

In Stock, Qty 6

0

12

Toro 95-5577

COVER-FILTER, AIR

$15.99

$

In Stock, only 2 left!

0

13

Toro 610383

RETAINER-COVER, FILTER

$7.99

$

In Stock, Qty 20+

0

14

Toro 130743

NUT

$2.99

$

In Stock, Qty 6

0

15

Toro 316959

WASHER-LOCK
(Superseded to 325-36)

$8.49

$

In Stock, Qty 16

0

16

Toro 612949

HUB-STARTER E COMM.

$42.99

$

In Stock, only 3 left!

0

17

Toro 95-1866

FLYWHEEL

$143.99

$

Usually ships in 3-6 days

0

18

Toro 92-1152

Cd Ign
(Superseded to 99-2916)

$78.99

$

In Stock, only 3 left!

0

18:2

Toro 681678

HT LEAD&COVER XEV

$23.99

$

Usually ships in 3-6 days

0

18:2

Toro 684698

COVER & TERM. AY S

$6.99

$

Usually ships in 3-6 days

0

19

Toro 613208

SCREW

$1.99

$

In Stock, only 2 left!

0

20

Toro 98-4478

SPACER E

$11.99

$

Usually ships in 3-6 days

0

21

Toro 700094

SCREW-HH
(Superseded to 112-0167)

$6.49

$

In Stock, only 4 left!

0

22

Toro 146501

NUT

$1.99

$

In Stock, only 3 left!

0

23

Toro 95-1870

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

24

Toro 95-1871

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

25

Toro 93-4312

PLATE-BRAKE

$64.99

$

In Stock, only 2 left!

0

26

Toro 84-7820

PLATE-BRAKE

$12.99

$

Usually ships in 3-6 days

0

27

Toro 3290-459

RIVET-PLASTIC

$1.99

$

In Stock, only 1 left!

0

28

Toro 92-2925

STRAP-INSULATION

$1.99

$

Usually ships in 3-6 days

0

29

Toro 60-9010

STRAP-GROUND

$11.99

$

Usually ships in 3-6 days

0

30

Toro 53-4690

STOP-GROUND STRAP

$3.99

$

In Stock, only 1 left!

0

31

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

32

Toro 98-7037

LEAD WIRE-SWITCH, BRAKE

$

$

Not available

33

Toro 607199

KEY

$4.99

$

In Stock, Qty 9

0

35

Toro 95-1778

GASKET-EXHAUST

$4.99

$

In Stock, Qty 9

0

36

Toro 684566

ASM-Starter
(Superseded to 684622)

$

$

Not available

40

Toro 95-5588

AIR BASE ASM

$25.99

$

In Stock, only 1 left!

0

41

Toro 95-5578

TUNNEL-INLET

$4.99

$

In Stock, only 1 left!

0

42

Toro 95-7613

GASKET-FILTER

$3.99

$

In Stock, Qty 20+

0

43

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

54

Toro 98-1388

SHIELD-CARB

$7.99

$

Usually ships in 3-6 days

0

55

Toro 98-7042

CARBURETOR ASM
(Superseded to 107-4607)

$

$

Not available

56

Toro 98-4484

SCREW E

$7.49

$

In Stock, Qty 5

0

57

Toro 613208

SCREW

$1.99

$

In Stock, only 2 left!

0

58

Toro 98-1392

GASKET

$5.49

$

In Stock, only 1 left!

0

59

Toro 99-2904

Muffler & Guard
(Superseded to 100-9514)

$242.99

$

Usually ships in 3-6 days

0

59:4

Toro 98-1394

SCREW-HWH

$4.49

$

In Stock, only 1 left!

0

59:5

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

60

Toro 611228

BOLT-CONSOLE

$16.99

$

Usually ships in 3-6 days

0

62

Toro 98-1557

PIPE-TRANSFER

$

$

Not available

63

Toro 98-1591

COVER-MUFFLER

$10.99

$

In Stock, only 3 left!

0

64

Toro 700822

SCREW-HH

$1.99

$

In Stock, Qty 10

0

65

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

66

Toro 98-1383

PLATE-MOUNTING

$108.99

$

In Stock, only 2 left!

0

67

Toro 98-4467

ASSEMBLY - SHROUD

$194.99

$

Usually ships in 3-6 days

0

69

Toro 95-7615

HOSE-RETAINER

$2.99

$

In Stock, only 4 left!

0

70

Toro 613233

SCREW

$3.99

$

Usually ships in 3-6 days

0

72

Toro 317893

STRAP-TIE

$

$

Not available
