22260 - Lawn-Boy Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

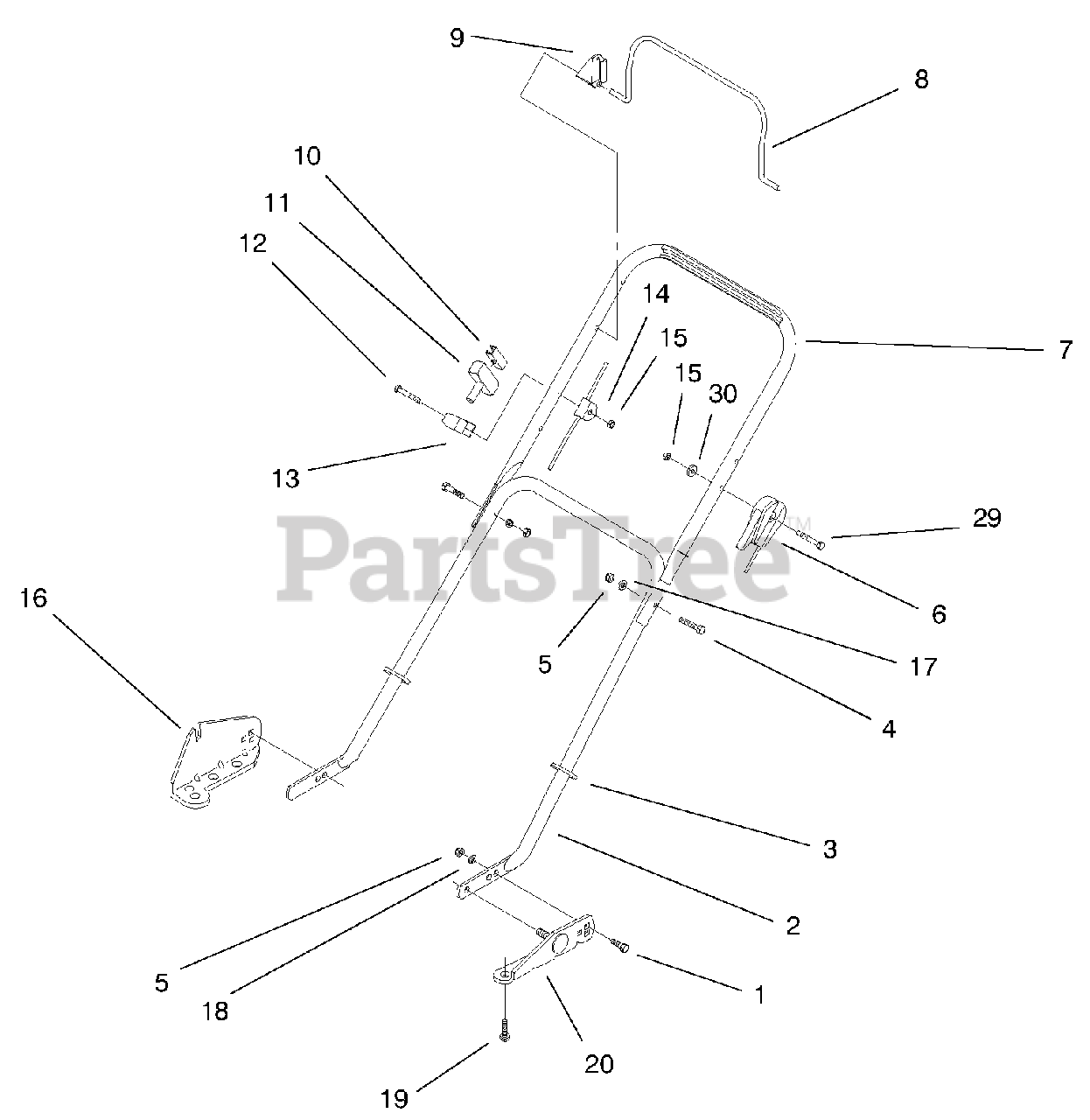

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 3230-29

SCREW-CARR

$2.99

$

In Stock, Qty 12

0

2

Lawn-Boy 613048-05

Handle Section-Lower
(Superseded to 92-2920-05)

$128.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, Qty 6

0

4

Lawn-Boy 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

5

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

6

Lawn-Boy 100-1172

CABLE-THROTTLE

$65.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 100-2897-05

HANDLE-UPPER

$176.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 100-1174

BAIL CONTROL LEVER ASM

$78.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 92-5412

STOP-PIVOT
(Superseded to 107-0757)

$4.49

$

In Stock, only 1 left!

0

10

Lawn-Boy 612824

CLIP-STARTER

$3.99

$

In Stock, Qty 10

0

11

Lawn-Boy 612825

HANDLE-START
(Superseded to 81-1630)

$18.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 321-49

SCREW-HH

$1.49

$

In Stock, Qty 9

0

13

Lawn-Boy 93-7383

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

14

Lawn-Boy 100-1173

CABLE-BRAKE

$69.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

16

Lawn-Boy 684057-03

RH BRACKET & PIN ASM

$

$

Not available

17

Lawn-Boy 609739

WASHER - CURVED

$3.49

$

In Stock, Qty 10

0

18

Lawn-Boy 3253-33

WASHER-LOCK

$1.99

$

In Stock, Qty 12

0

19

$3.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 684058-03

LH BRACKET & PIN ASM

$70.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 321-48

SCREW-HH

$1.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 92-8632

WASHER
(Superseded to 115-0995)

$6.99

$

In Stock, only 3 left!

0
