22260 - Lawn-Boy Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE & BLADE ASSEMBLY Parts Diagram

Walk-Behind Mower

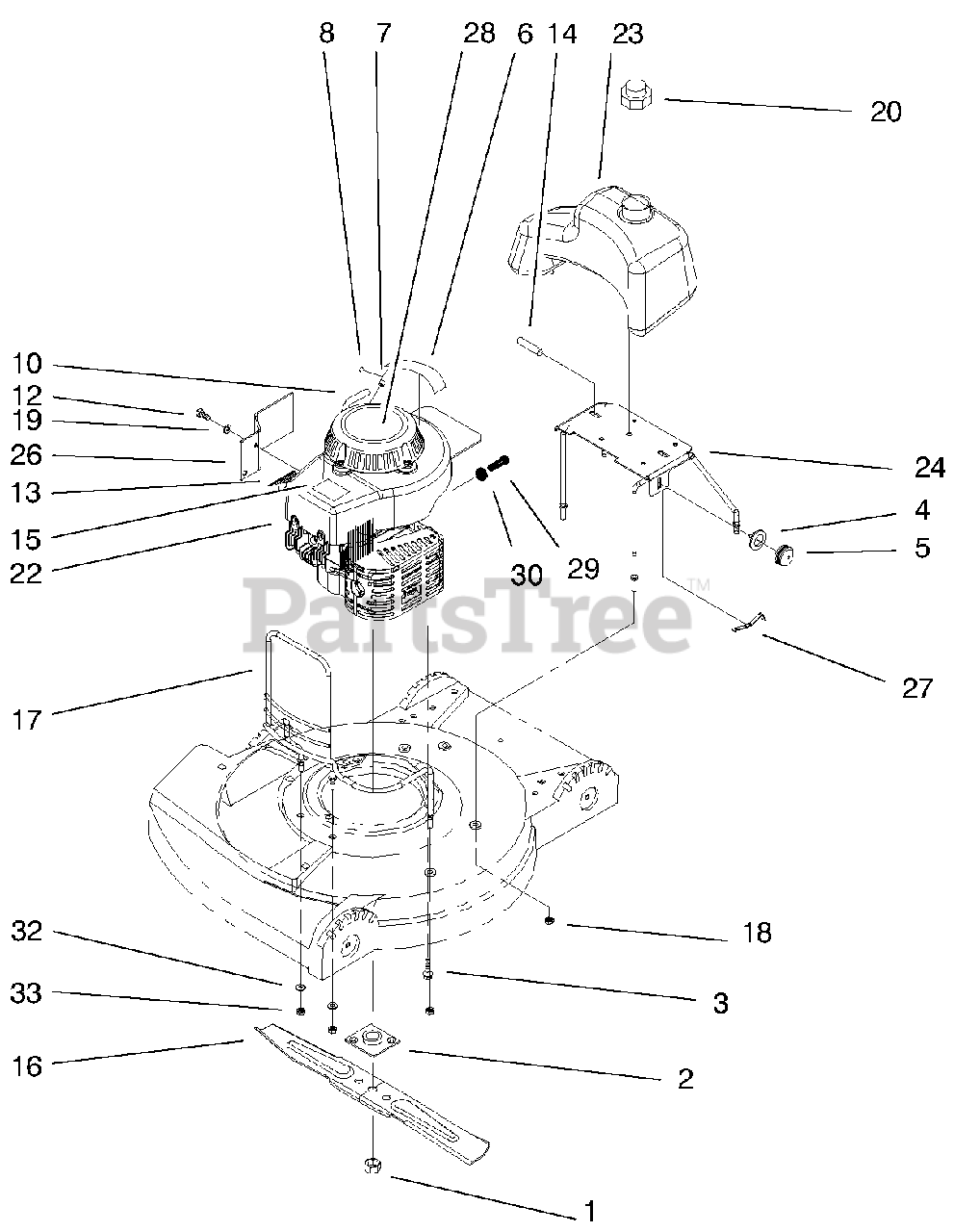

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 11

0

2

Lawn-Boy 677525

Plate & Collar ASM

$51.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 98-4480

Screw-Sems

$3.49

$

In Stock, only 3 left!

0

4

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 99-1518

Decal-Fuel Mix

$

$

Not available

7

Lawn-Boy 47-2480

Rope Stop

$

$

Not available

$

$

Not available

10

Lawn-Boy 612782

Line-Gas

$7.49

$

In Stock, Qty 9

0

12

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 93-4306

Spring-Compression

$6.49

$

In Stock, only 1 left!

0

14

Lawn-Boy 2410-76

Plug-Cap

$1.49

$

Usually ships in 3-6 days

0

15

Lawn-Boy 99-1517

Decal-Lawn Boy

$33.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 612543

Blade-21" Whirl
(Superseded to 612543-03)

$33.99

$

In Stock, Qty 18

0

17

Lawn-Boy 98-1598

Muffler-Guard

$243.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 608311

Nut-Lock

$3.49

$

In Stock, only 3 left!

0

19

Lawn-Boy 3253-4

Washer-Lock/Sp

$0.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 98-8344

Assembly-Cap, Fuel/Oil

$24.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 99-2910

Engine ASM For Service
(Superseded to 95-7636)

$

$

Not available

23

Lawn-Boy 98-4497

Tank-Fuel

$349.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 98-4458-03

Tank Brkt ASM

$148.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 99-1515-03

Guard-Brake

$43.99

$

Usually ships in 3-6 days

0

27

$5.49

$

In Stock, Qty 6

0

28

Lawn-Boy 98-8342

Decal-Recoil

$

$

Not available

29

Lawn-Boy 314576

Screw-Sems

$1.99

$

In Stock, Qty 6

0

30

Lawn-Boy 306531

Nut-Hex
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 68-5920

Hood Pivot Washer

$

$

Not available

33

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0
