22260 - Lawn-Boy Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

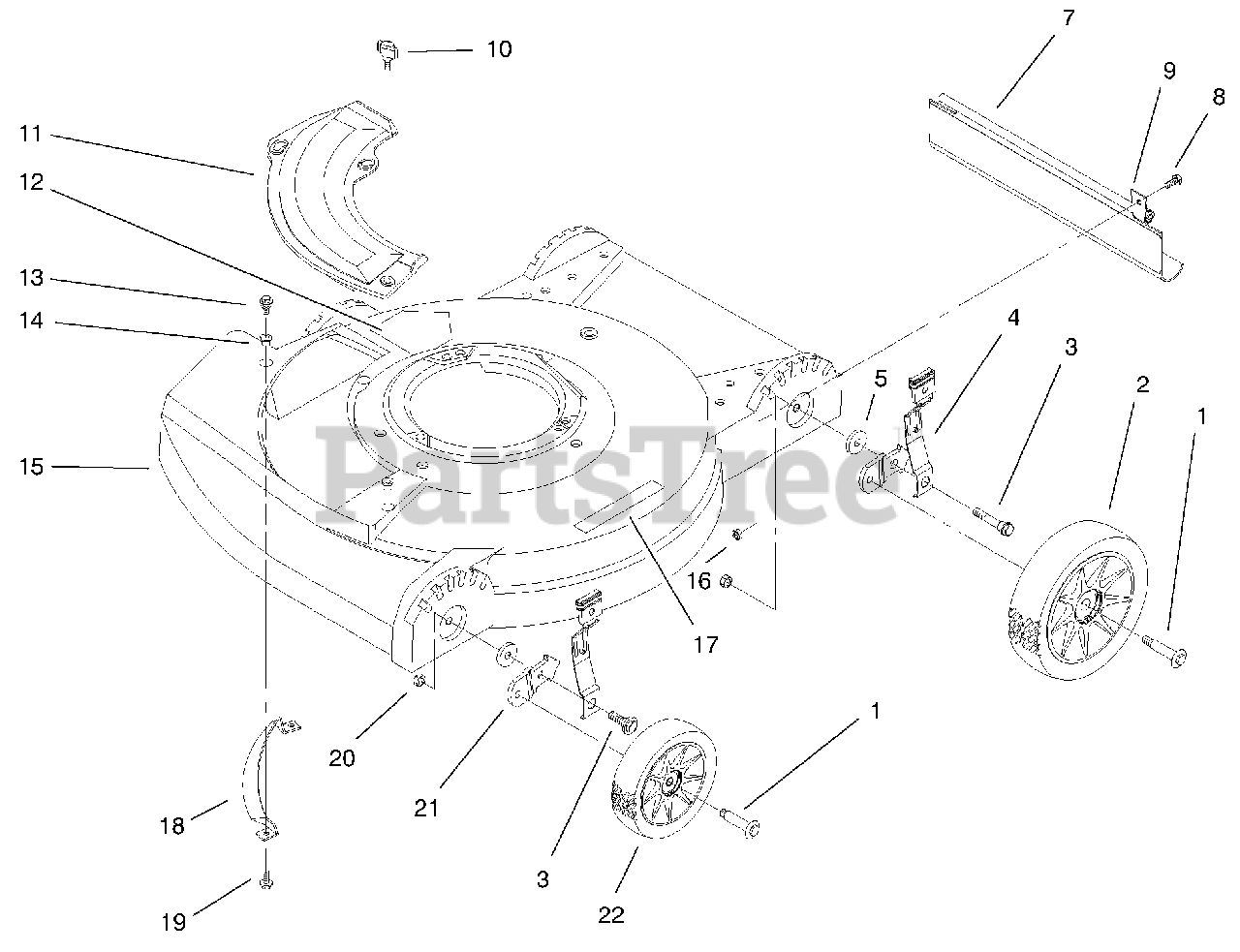

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 603567

Bolt-Wheel

$15.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 683464

ASM-Wheel & Tire

$90.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 610646

Bolt-Ajustment

$7.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 153444

Knob & Spring

$

$

Not available

5

Lawn-Boy 608834

Washer

$14.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 93-7368

Shield-Trailing

$41.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 321-3

Screw-HH

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 93-7693

Clamp-Rod

$15.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 98-8332

Knob-Cover Plate

$5.49

$

In Stock, Qty 13

0

11

Lawn-Boy 95-7052

Plate-Cover

$36.99

$

In Stock, only 3 left!

0

12

Lawn-Boy 39-5770

Decal-Danger

$8.99

$

In Stock, Qty 8

0

13

Lawn-Boy 614677

Screw-Sems

$4.49

$

In Stock, Qty 12

0

14

Lawn-Boy 94-1610

Grommet-Plastic

$1.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 98-4475

Housing-Commercial 21"

$

$

Not available

16

Lawn-Boy 3296-52

Nut-Lock

$6.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 93-7250

Decal-Warning

$15.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 608175

Toe Bar 21

$77.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 46-6811

Screw-HWH

$3.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 608833

Bracket-Height
(Superseded to 608833-03)

$27.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 684159

Wheel & Tire

$77.99

$

Usually ships in 3-6 days

0
