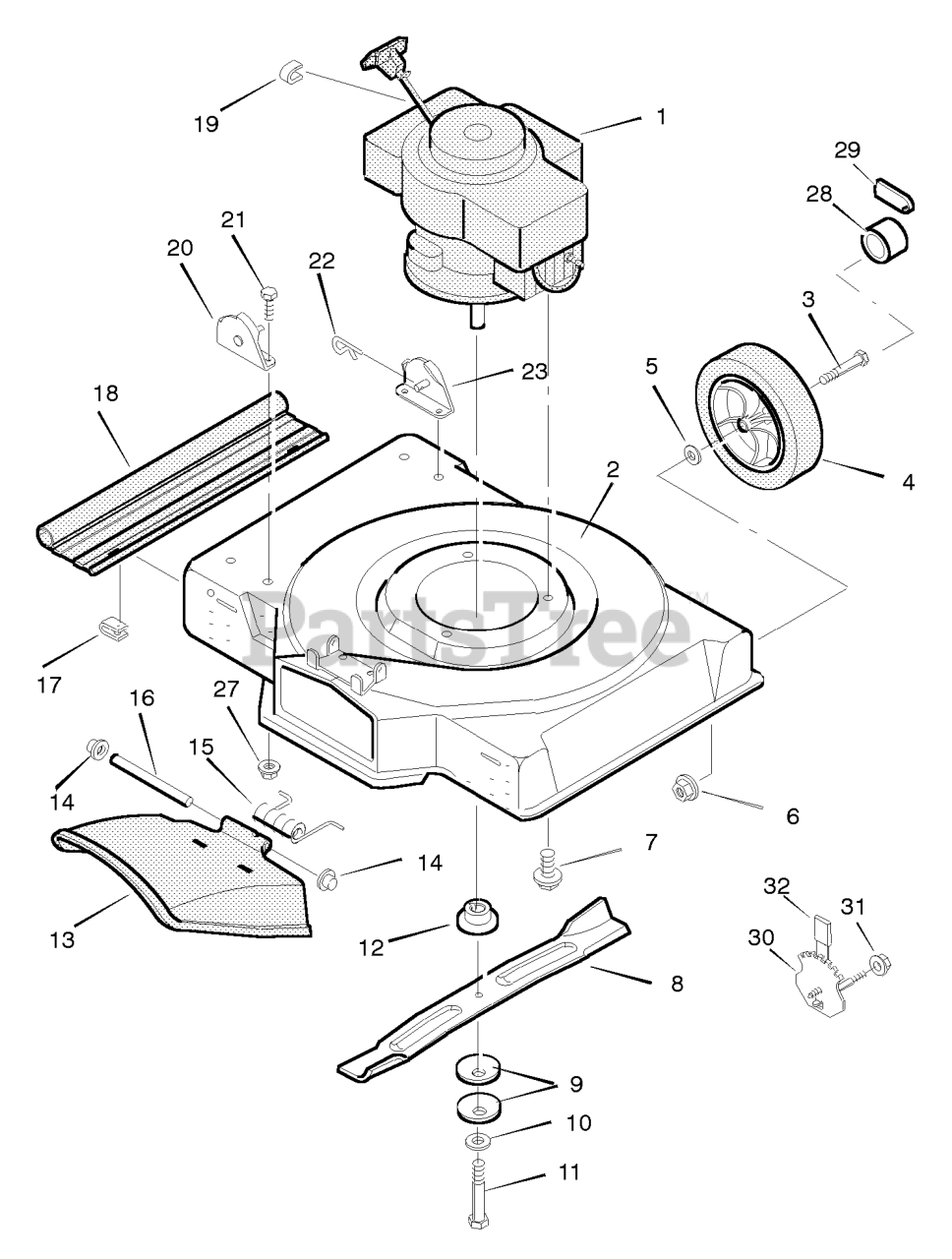

22255x31A - Scotts 22" Walk-Behind Mower (1996) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

Mower Housing Assembly Parts Diagram

  • Title
1

Engine *

$

$

Not available

2

Murray 070156

Housing

$

$

Currently unavailable

3

Murray 009X10MA

Bolt, Axle

$

$

Not available

4

Wheel and Tire *

$

$

Not available

5

$

$

Currently unavailable

6

Murray 015X68MA

Locknut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

7

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

$28.99

$

Usually ships in 2-12 days

0

9

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

10

$4.49

$

Usually ships in 2-12 days

0

11

Murray 01X142MA

Bolt, Hex

$8.49

$

In Stock, only 2 left!

0

12

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

13

Murray 042919

Deflector, Chute

$

$

Currently unavailable

14

Murray 028X42MA

Push- On Cap

$3.99

$

Usually ships in 2-12 days

0

15

$3.99

$

Usually ships in 2-12 days

0

16

Murray 215X11 Z

Pin, Pivot

$

$

Currently unavailable

17

Murray 042743MA

Retainer

$

$

Not available

18

Murray 042747

Deflector, Rear

$

$

Currently unavailable

19

Murray 042189MA

Stop, Rope

$3.99

$

Usually ships in 2-12 days

0

20

Murray 42712E701

Bracket, Right Handle

$

$

Currently unavailable

21

$4.49

$

In Stock, Qty 18

0

22

Murray 031X10MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

23

Murray 42713E701

Bracket, Left Handle

$

$

Currently unavailable

$3.49

$

Usually ships in 2-12 days

0

28

Murray 020107MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

29

Murray 043847MA

Hub Cap

Note: Optional; (For 8x2 in. Ball Bearing Wheel)

$4.49

$

Usually ships in 2-12 days

0

--

Murray 043615MA

Hub Cap

Note: Optional; (For 8x2 in. Plastic Wheel)

$4.49

$

Usually ships in 2-12 days

0

30

Murray 401025MA

Adjuster, Height

$72.99

$

Usually ships in 2-12 days

0

31

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

32

$

$

Not available

--

Murray F-96450

Book, Instruction

$

$

Currently unavailable
