22243 - Toro Walk-Behind Mower (SN: 260000001 - 260999999) (2006) ENGINE, BLADE AND FUEL TANK ASSEMBLY Parts Diagram

Walk-Behind Mower

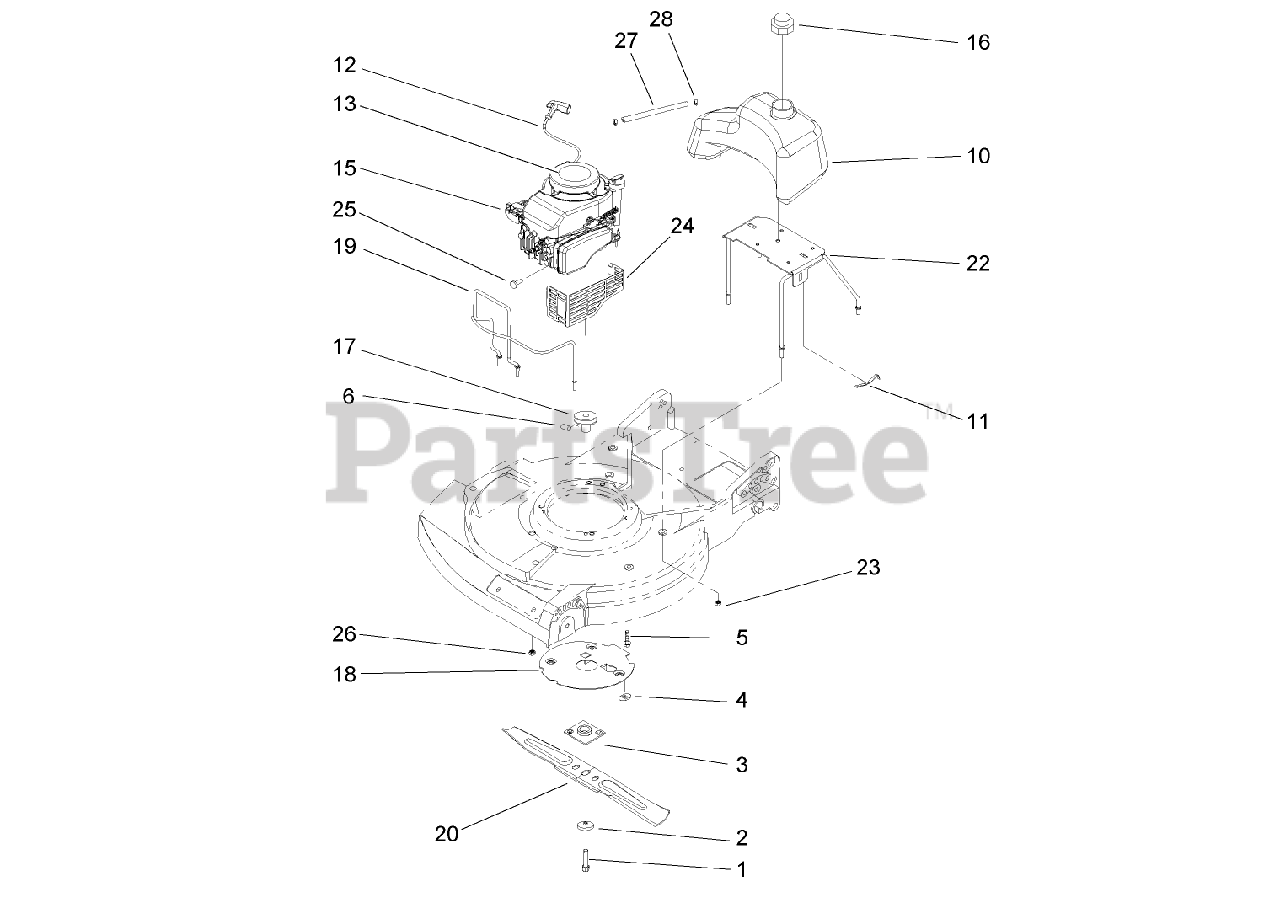

ENGINE, BLADE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Toro 92-8626

SPACER-BLADE

$13.99

$

Usually ships in 3-6 days

0

3

Toro 100-2899

PLATE AND COLLAR ASM

$27.99

$

Usually ships in 3-6 days

0

4

Toro 92-4877

PUSH NUT
(Superseded to 107-3154)

$1.49

$

In Stock, Qty 9

0

5

Toro 92-1648

SCREW-MOUNT, ENGINE
(Superseded to 95-1727)

$2.99

$

In Stock, Qty 20+

0

6

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$10.99

$

Usually ships in 3-6 days

0

10

Toro 98-4497

TANK-FUEL

$308.99

$

Usually ships in 3-6 days

0

11

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

12

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

13

Toro 108-9334

DECAL-RECOIL

$

$

Not available

15

ENGINE-BRIGGS AND STRATTON, 12W8021701B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

16

Toro 108-9381

GAS CAP ASM

$27.99

$

In Stock, only 1 left!

0

17

Toro 95-1878

PULLEY

$55.99

$

In Stock, only 1 left!

0

18

Toro 108-9376-03

SHIELD-GRASS
(Superseded to 112-1541-03)

$

$

Not available

19

Toro 108-7470

GUARD-MUFFLER

$93.99

$

Usually ships in 3-6 days

0

20

Toro 612543

Blade
(Superseded to 612543-03)

$29.99

$

In Stock, only 4 left!

0

20

Toro 612543-03

BLADE-20.88 INCH

$29.99

$

In Stock, only 4 left!

0

22

Toro 98-4459-03

TANK BRACKET ASM

$

$

Not available

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

24

Toro 104-7577-03

SHIELD-MUFFLER

$25.99

$

Usually ships in 3-6 days

0

25

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 8

0

26

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

27

Toro 110-1824

GAS-LINE

$

$

Not available

28

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0
