22243 - Toro Walk-Behind Mower (SN: 260000001 - 260999999) (2006) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 12W802-1701-B1 Parts Diagram

Walk-Behind Mower

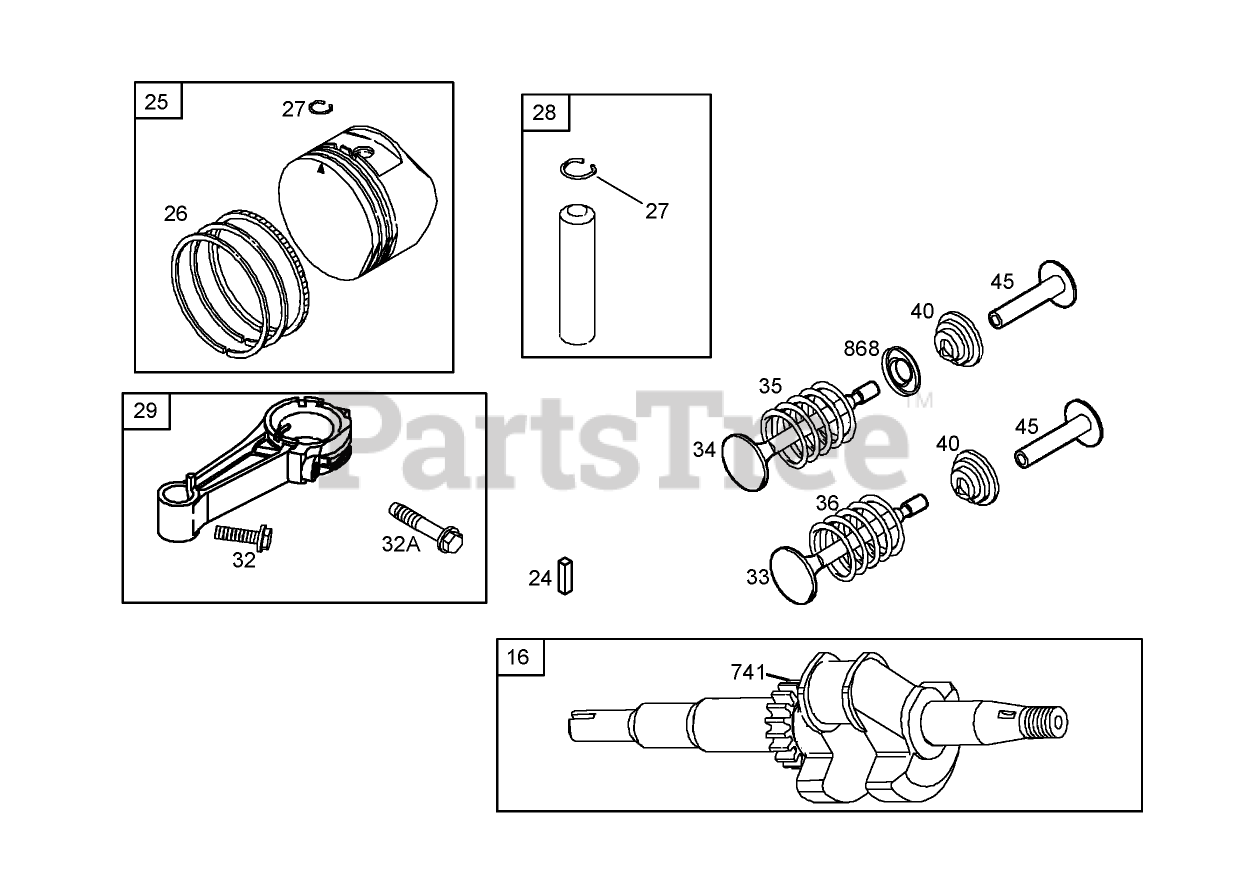

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 12W802-1701-B1 Parts Diagram

  • Title
16

Briggs & Stratton 694079

Crankshaft

Note: Obtain parts from www.briggsandstratton.com

$152.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 791096

Piston ASM

Note: Obtain parts from www.briggsandstratton.com

$73.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 691325

Spline-Starter
(Superseded to 795098)

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791098

Ring Set

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

26

Briggs & Stratton 691324

Cover-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691866

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

Note: Obtain parts from www.briggsandstratton.com

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

Valve-Exhaust
(Superseded to 590394)

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

Valve-Intake
(Superseded to 590393)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691270

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

36

Briggs & Stratton 691270

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 692194

Retainer-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 690548

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 790345

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 697338

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 4 left!

0
