22243 - Lawn-Boy Walk-Behind Mower (SN: 260000001 - 260999999) (2006) CYLINDER ASSEMBLY BRIGGS AND STRATTON 12W802-1701-B1 Parts Diagram

Walk-Behind Mower

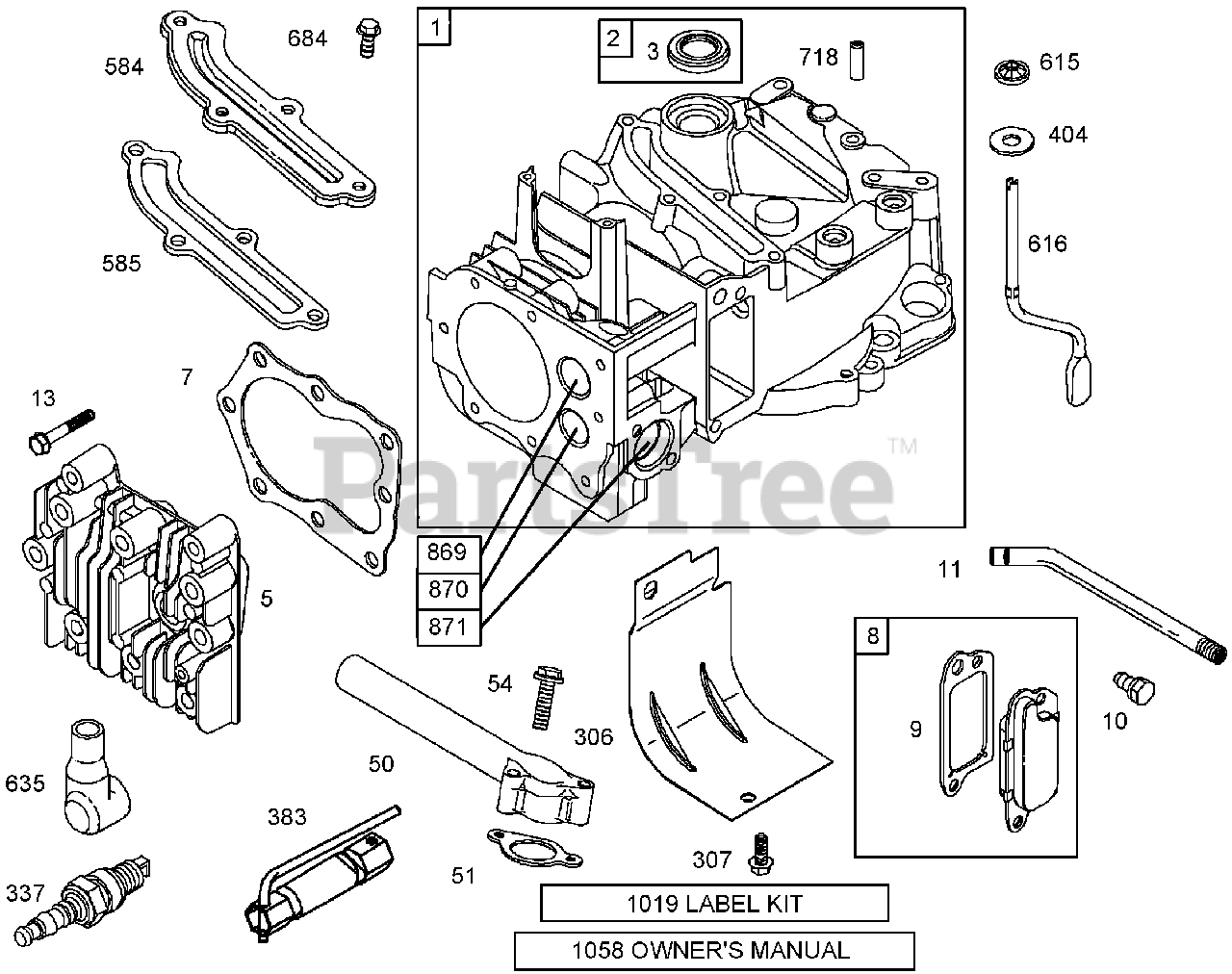

CYLINDER ASSEMBLY BRIGGS AND STRATTON 12W802-1701-B1 Parts Diagram

  • Title

1

Lawn-Boy 697324

Cylinder ASM

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

2

Lawn-Boy 399269

Bushing/Seal Kit

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

3

Lawn-Boy 299819

Seal-Oil

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

5

Lawn-Boy 691160

Head-Cylinder

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

7

Lawn-Boy 692249

Gasket-Head, Cylinder

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

8

Lawn-Boy 695250

Breather ASM

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

9

Lawn-Boy 696125

Gasket-Breather

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

10

Lawn-Boy 691125

Screw

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

11

Lawn-Boy 691781

Tube-Breather

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

13

Lawn-Boy 690912

Screw

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

50

Lawn-Boy 497465

Manifold-Intake

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

51

Lawn-Boy 272199

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

54

Lawn-Boy 691650

Screw

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

306

Lawn-Boy 690450

Shield-Cylinder

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

307

Lawn-Boy 690345

Screw

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

337

Lawn-Boy 697451

PlugSpark

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

383

Lawn-Boy 89838

Wrench-Plug, Spark

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

404

Lawn-Boy 690272

Washer

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

584

Lawn-Boy 697734

Cover-Passage, Breather

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

585

Lawn-Boy 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

615

Lawn-Boy 690340

Retainer-Shaft, Governor

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

616

Lawn-Boy 698801

Crank-Governor

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

635

Lawn-Boy 66538

Boot-Plug, Spark

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

684

Lawn-Boy 690345

Screw

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

718

Lawn-Boy 690959

Pin-Locating

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

869

Lawn-Boy 691155

Seat-Valve (Intake)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

870

Lawn-Boy 690380

Seat-Valve (Exhaust)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

871

Lawn-Boy 262001

Bushing-Guide (Exhaust)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

871

Lawn-Boy 63709

Bushing-Guide (Intake)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1019

Lawn-Boy 494256

Label Kit

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1058

Lawn-Boy 275177

Manual-Owners

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable
