22242 - Toro Walk-Behind Mower (SN: 260000001 - 260999999) (2006) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

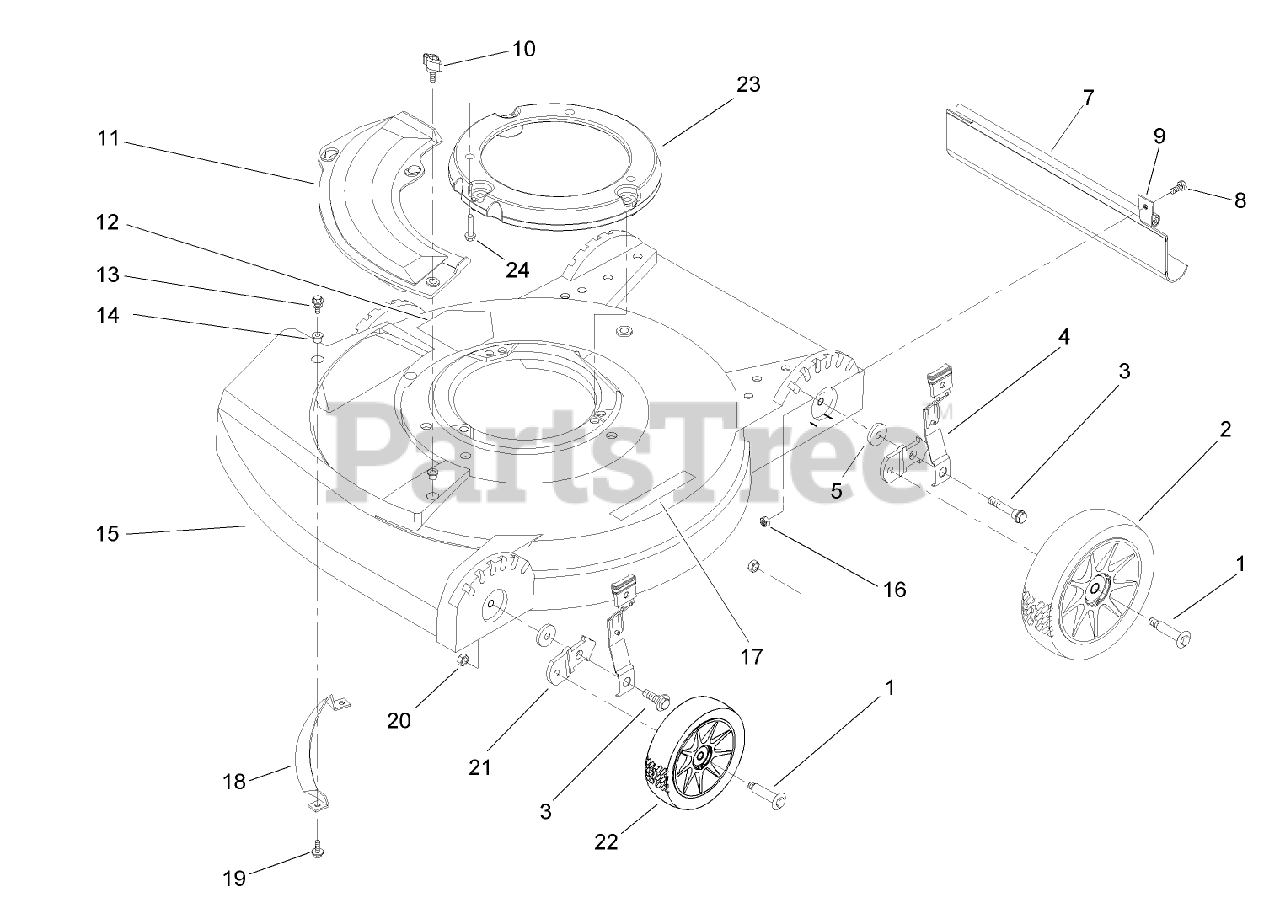

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 603567

BOLT

$15.99

$

In Stock, only 2 left!

0

2

Toro 683464

WHEEL/TIRE ASM

$79.99

$

Usually ships in 3-6 days

0

3

Toro 610646

BOLT

$7.49

$

Usually ships in 3-6 days

0

4

Toro 153444

SPRING ARM ASM

$

$

Not available

5

Toro 608834

WASHER

$14.99

$

In Stock, only 2 left!

0

7

Toro 93-7368

SHIELD-TRAILING

$41.99

$

In Stock, only 1 left!

0

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 93-7693

CLAMP-SHIELD

$15.99

$

In Stock, only 2 left!

0

10

Toro 98-8332

KNOB

$5.49

$

In Stock, Qty 10

0

11

Toro 95-7052

PLATE-OPENING, CHUTE

$36.99

$

In Stock, Qty 9

0

12

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

13

Toro 614677

SCREW-SEMS

$4.49

$

In Stock, Qty 12

0

14

Toro 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

15

Toro 108-9332

HOUSING ASM

$

$

Not available

16

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

17

Toro 93-7250

DECAL-WARNING

$15.99

$

In Stock, only 2 left!

0

18

Toro 608175

BAR-TOE

$77.99

$

Usually ships in 3-6 days

0

19

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 608833-03

BRACKET-HEIGHT, WHEEL

$23.99

$

In Stock, only 4 left!

0

22

Toro 684159

WHEEL AND TIRE ASM

$68.99

$

Usually ships in 3-6 days

0

23

Toro 108-9368-02

SPACER-ENGINE

$129.99

$

Usually ships in 3-6 days

0

24

Toro 92-1648

SCREW-MOUNT, ENGINE
(Superseded to 95-1727)

$2.99

$

In Stock, Qty 20+

0
