22242 - Lawn-Boy Walk-Behind Mower (SN: 260000001 - 260999999) (2006) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

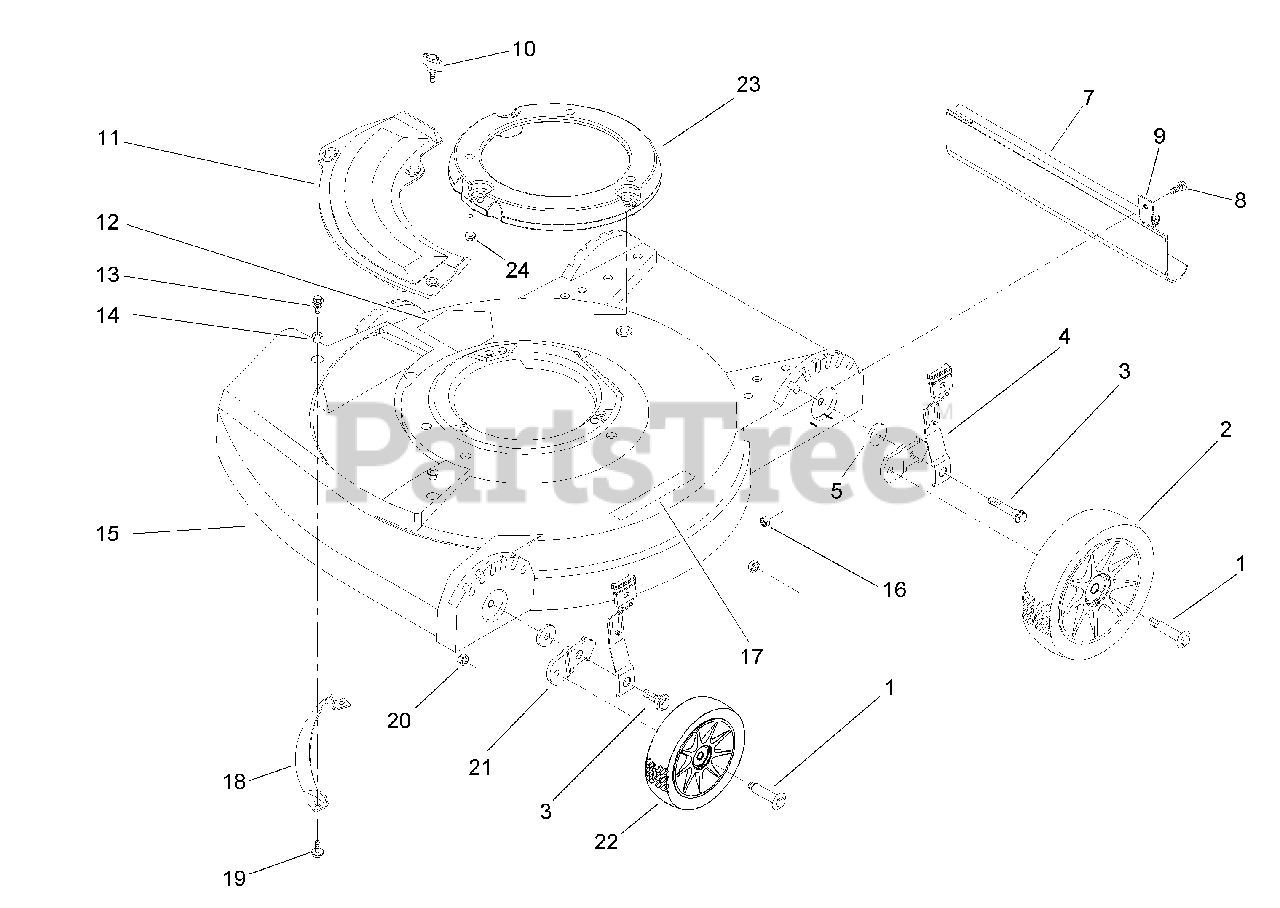

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 603567

BOLT

$15.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 683464

WHEEL/TIRE ASM

$90.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 610646

BOLT

$7.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 153444

SPRING ARM ASM

$

$

Not available

5

Lawn-Boy 608834

WASHER

$14.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 93-7368

SHIELD-TRAILING

$41.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 93-7693

CLAMP-SHIELD

$15.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 98-8332

KNOB

$5.49

$

In Stock, Qty 13

0

11

Lawn-Boy 95-7052

PLATE-OPENING, CHUTE

$36.99

$

In Stock, only 3 left!

0

12

Lawn-Boy 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

13

Lawn-Boy 614677

SCREW-SEMS

$4.49

$

In Stock, Qty 12

0

14

Lawn-Boy 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 108-9332

HOUSING ASM

$

$

Not available

16

Lawn-Boy 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 93-7250

DECAL-WARNING

$15.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 608175

BAR-TOE

$77.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 608833-03

BRACKET-HEIGHT, WHEEL

$27.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 684159

WHEEL AND TIRE ASM

$77.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 108-9368-02

SPACER-ENGINE

$129.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 92-1648

SCREW-MOUNT, ENGINE
(Superseded to 95-1727)

$2.99

$

In Stock, Qty 20+

0
