22242 - Lawn-Boy Walk-Behind Mower (SN: 260000001 - 260999999) (2006) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 12W802-1701-B1 Parts Diagram

Walk-Behind Mower

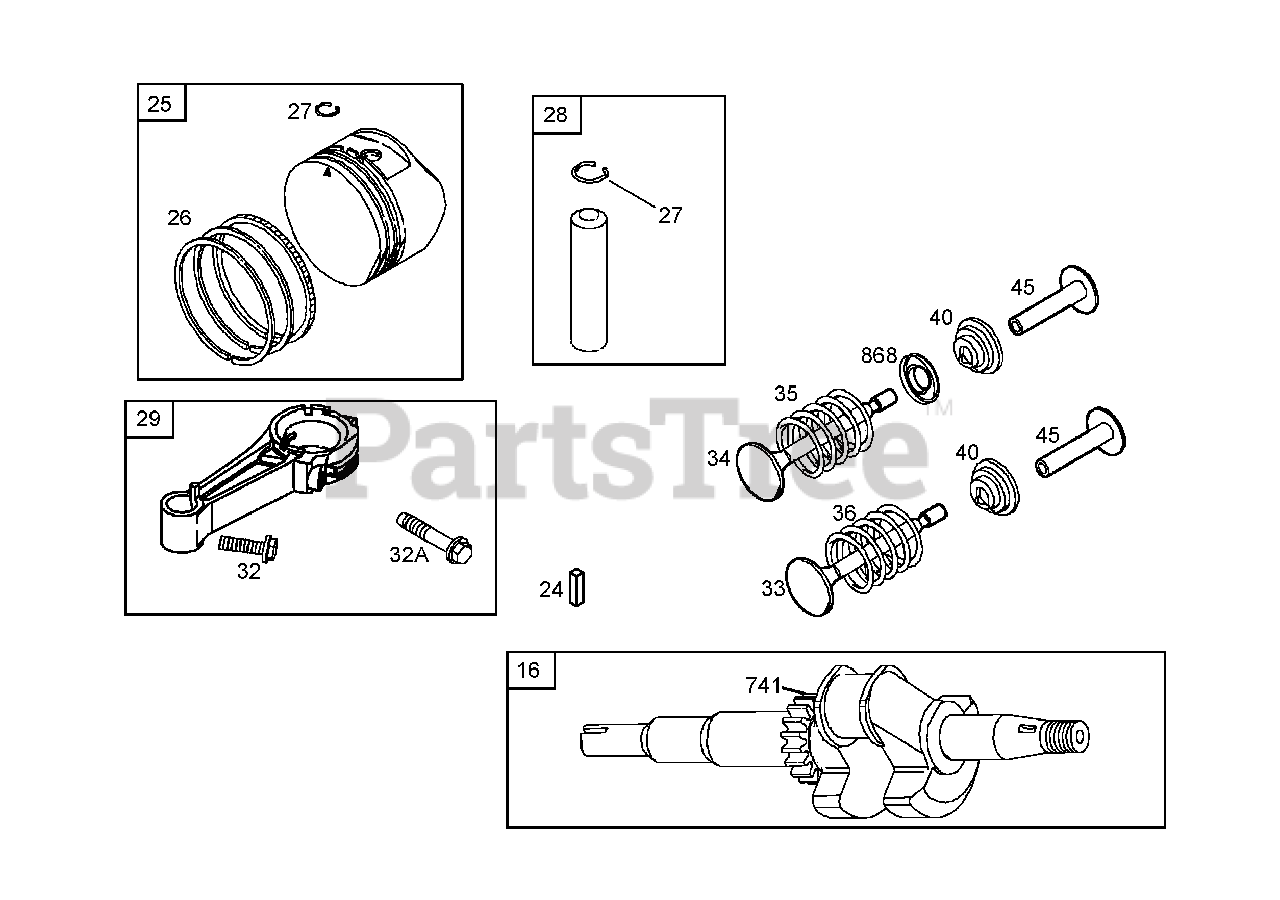

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 12W802-1701-B1 Parts Diagram

  • Title
16

Lawn-Boy 694079

Crankshaft

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

24

Lawn-Boy 222698

Key

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

25

Lawn-Boy 791096

Piston ASM

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

25

Lawn-Boy 691325

Spline-Starter

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

26

Lawn-Boy 791098

Ring Set

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

26

Lawn-Boy 691324

Cover-Cleaner, Air

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

27

Lawn-Boy 691866

Lock-Pin, Piston

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

28

Lawn-Boy 499423

Pin-Piston (Standard)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

28

Lawn-Boy 298908

Pin-Piston (.005 Undersize)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

29

Lawn-Boy 499424

Rod-Connecting (Standard)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

32

Lawn-Boy 691664

Screw

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

32A

Lawn-Boy 695759

Screw

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

33

Lawn-Boy 262651

Valve-Exhaust

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

34

Lawn-Boy 262652

Valve-Intake

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

35

Lawn-Boy 691270

Spring-Valve

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

36

Lawn-Boy 691270

Spring-Valve

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

40

Lawn-Boy 692194

Retainer-Valve

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

45

Lawn-Boy 690548

Tappet-Valve

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

741

Lawn-Boy 790345

Gear-Timing

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

868

Lawn-Boy 697338

Seal-Valve

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable
