22242 - Lawn-Boy Walk-Behind Mower (SN: 250000001 - 250999999) (2005) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

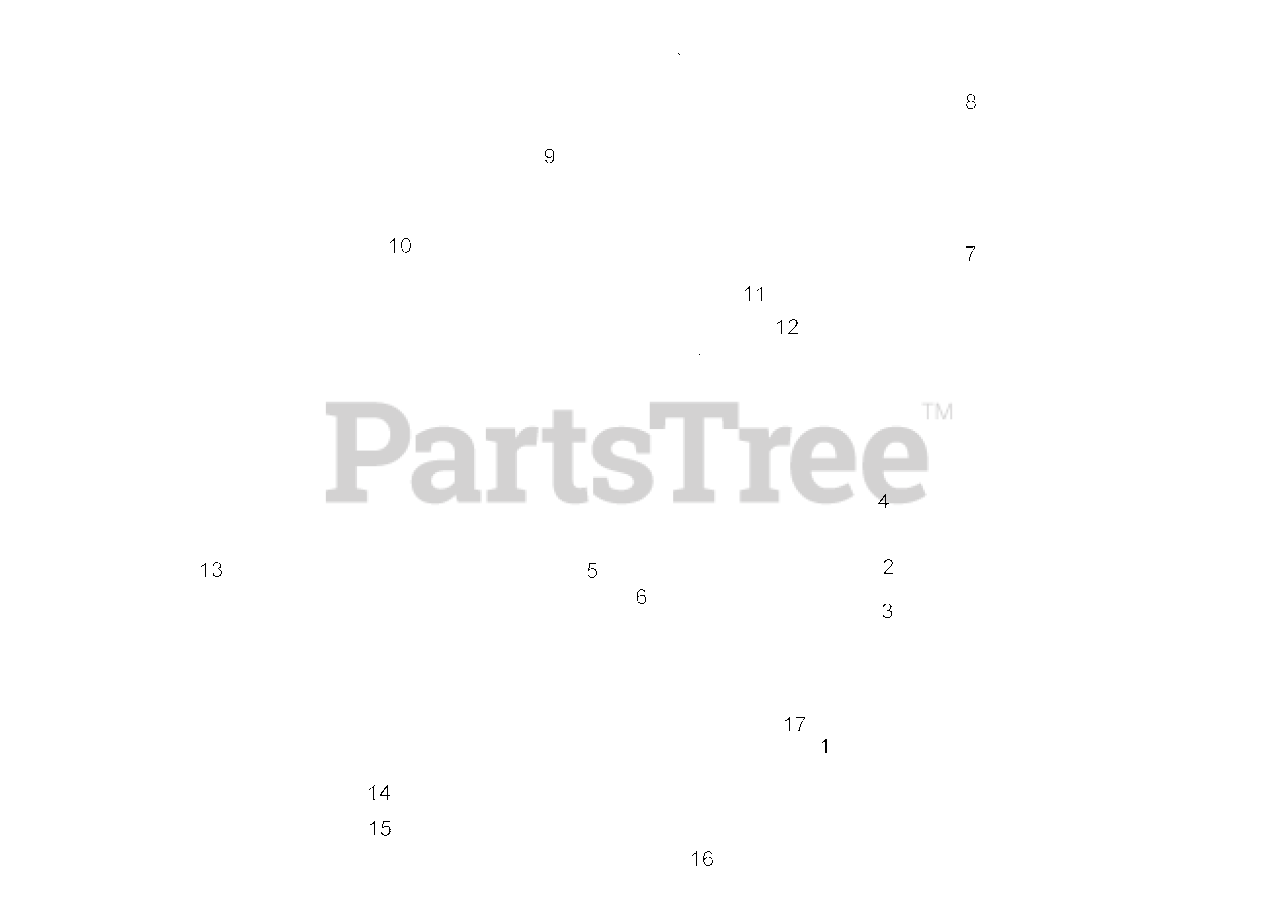

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3230-29

SCREW-CARR

$2.99

$

In Stock, Qty 12

0

2

Lawn-Boy 92-2920-05

HANDLE-SECTION, LOWER

$131.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, only 2 left!

0

4

Lawn-Boy 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 609739

WASHER-CURVED

$3.49

$

In Stock, Qty 8

0

7

Lawn-Boy 100-2897-05

HANDLE-UPPER

$

$

Not available

8

Lawn-Boy 100-1174

BAIL CONTROL LEVER ASM

$91.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 107-0757

STOP-PIVOT

$5.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 106-8330

GUIDE-ROPE

$5.99

$

In Stock, only 3 left!

0

11

Lawn-Boy 100-5989

BRAKE CABLE ASM

$34.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

13

Lawn-Boy 684057-03

RH BRACKET and PIN ASM

$

$

Not available

14

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 3256-23

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 607188

SCREW

$3.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 684058-03

LH BRACKET and PIN ASM

$81.99

$

Usually ships in 3-6 days

0
