22242 - Lawn-Boy Walk-Behind Mower (SN: 250000001 - 250999999) (2005) BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 12W802-1701-B1 Parts Diagram

Walk-Behind Mower

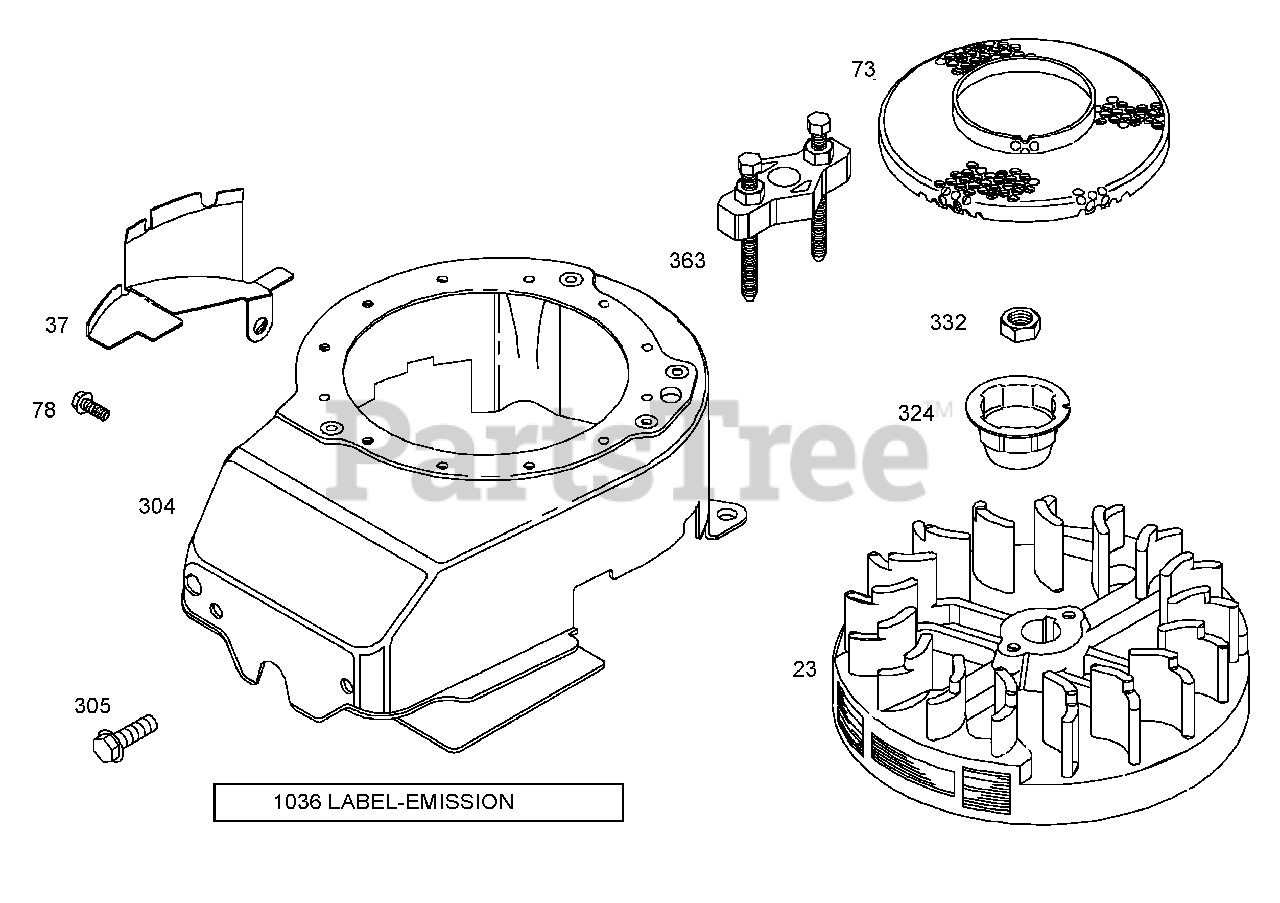

BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 12W802-1701-B1 Parts Diagram

  • Title
23

Lawn-Boy 692315

Flywheel

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

37

Lawn-Boy 694086

Guard-Flywheel

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

73

Lawn-Boy 691222

ScreenRotating

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

78

Lawn-Boy 691108

Screw (Flywheel Guard)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

304

Lawn-Boy 493293

Housing-Blower

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

305

Lawn-Boy 691108

Screw

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

324

Lawn-Boy 695161

Cup/Screen ASM

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

332

Lawn-Boy 690662

Nut

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

363

Lawn-Boy 19069

Puller-Flywheel

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1036

Lawn-Boy 790412

LabelEmission

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable
