22242 - Lawn-Boy Walk-Behind Mower (SN: 250000001 - 250999999) (2005) 358 ENGINE GASKET SET ASSEMBLY BRIGGS AND STRATTON 12W802-1701-B1 Parts Diagram

Walk-Behind Mower

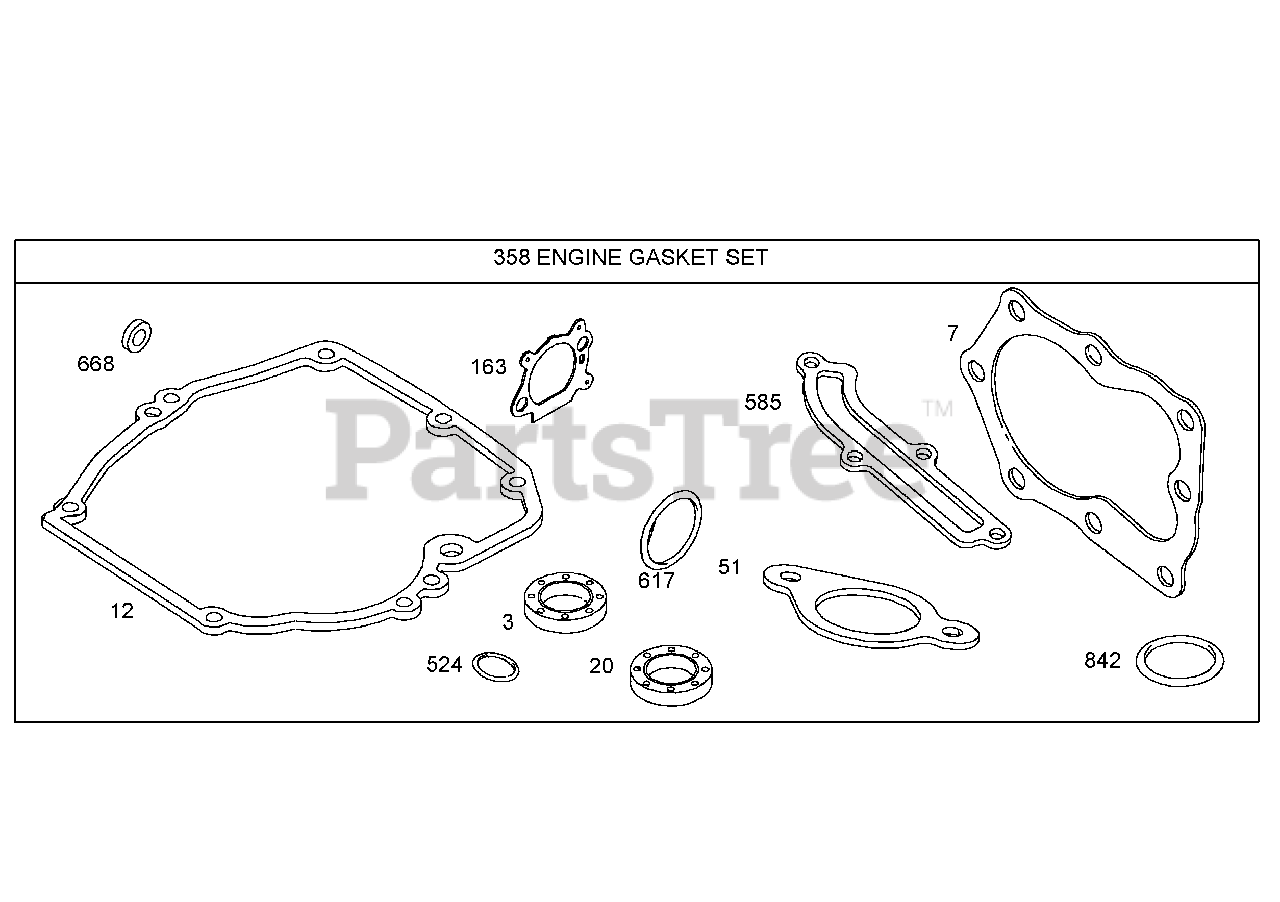

358 ENGINE GASKET SET ASSEMBLY BRIGGS AND STRATTON 12W802-1701-B1 Parts Diagram

  • Title

3

Lawn-Boy 299819

SealOil (Magneto Side)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

7

Lawn-Boy 692249

Gasket-Head, Cylinder

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

12

Lawn-Boy 692232

GasketCrankcase (.015 Thick, STD)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

20

Lawn-Boy 399781

SealOil (PTO Side)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

51

Lawn-Boy 272199

Gasket-Intake

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

163

Lawn-Boy 272653

Gasket-Air Cleaner

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

358

Lawn-Boy 497316

Engine Gasket Set

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

524

Lawn-Boy 692296

Seal-O Ring (Dipstick Tube)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

585

Lawn-Boy 691879

Gasket-Passage, Breather

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

617

Lawn-Boy 270344

SealO Ring (Intake Manifold)

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

668

Lawn-Boy 493823

Spacer

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

842

Lawn-Boy 691031

Seal-O Ring (Dipstick)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable
