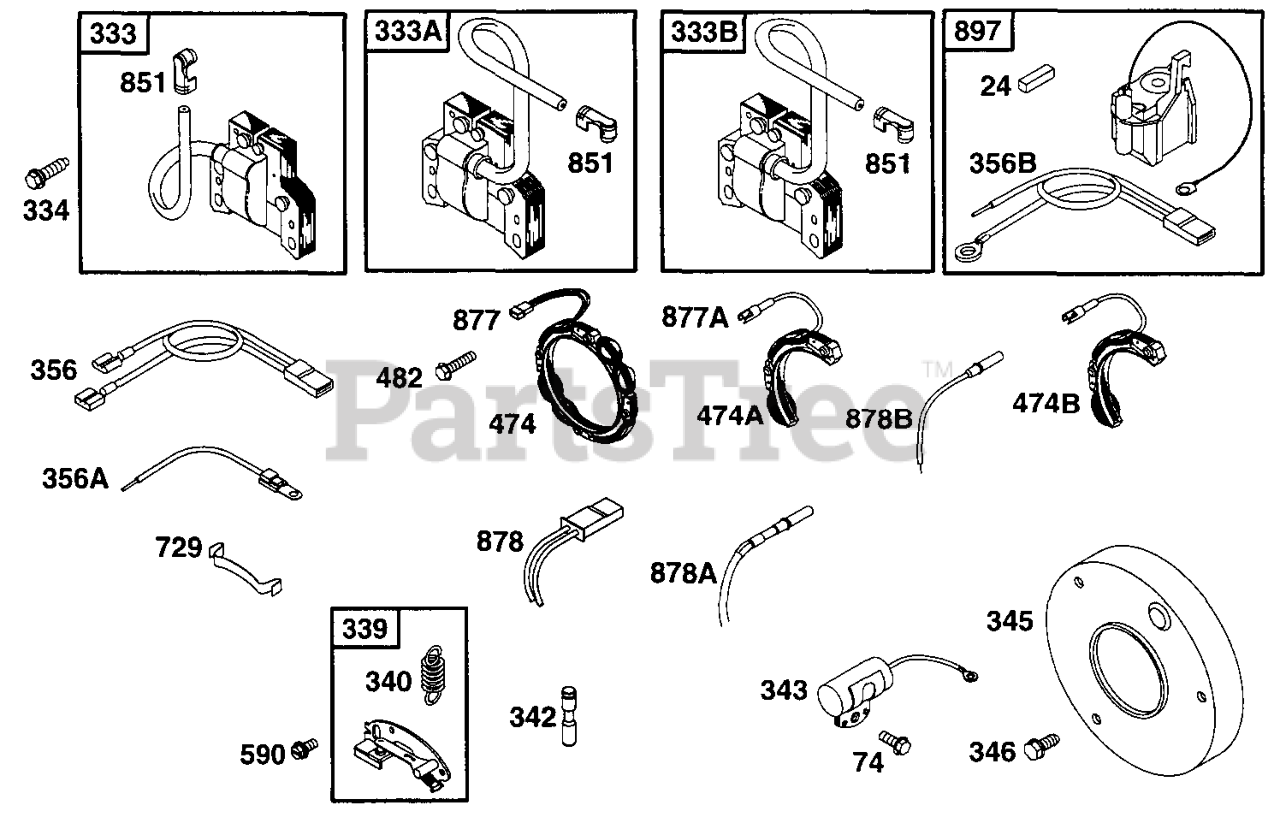

222413-0723-01 - Briggs & Stratton Horizontal Engine Elect Parts Diagram

Horizontal Engine

Elect Parts Diagram

  • Title
24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

74

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

333B

Briggs & Stratton 395326

Armature-Mag (Electronic Ignition-Without Module)
(Superseded to 398811)

$63.99

$

In Stock, Qty 17

0

333A

Briggs & Stratton 298968

Armature-Mag (For Breaker Ignition)

$

$

Not available

333

Briggs & Stratton 398811

Armature-Mag (Magnetron Ignition)

$63.99

$

In Stock, Qty 17

0

334

Briggs & Stratton 94731

Screw, Hex Wash Hea
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

339

Briggs & Stratton 391284

Breaker-Ignition

$44.99

$

Usually ships in 2-12 days

0

340

Briggs & Stratton 26018

Spring-Breaker Arm

$7.49

$

In Stock, only 1 left!

0

342

Briggs & Stratton 65704

Plunger-Breather Point
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

343

$25.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 222309

Cover-Breaker Point

$

$

Not available

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

356B

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

356A

Briggs & Stratton 496868

Wire-Stop
(Superseded to 691408)

$12.99

$

Usually ships in 2-12 days

0

356

$7.99

$

Usually ships in 2-12 days

0

474B

Briggs & Stratton 391595

Alternator (Ac Only)

$98.99

$

Usually ships in 2-12 days

0

474A

Briggs & Stratton 391529

Stator, Alternator (Dc Only)
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 393474

Stator, Alternator (Dual-Circuit)
(Superseded to 592831)

$101.99

$

In Stock, Qty 7

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

590

Briggs & Stratton 93226

Screw-Slotted Hex.
(Superseded to 690295)

$6.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877A

Briggs & Stratton 393814

Alternator Connecto (Dc Only)

$18.99

$

In Stock, only 2 left!

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

878A

Briggs & Stratton 393422

Socket/Wire Assy (Dc Only)
(Superseded to 692306)

$17.99

$

Usually ships in 2-12 days

0

878B

Briggs & Stratton 390867

Harness-Alt (Ac Only)

$18.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 393362

Harness, Alternator (Dual Circuit)
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

897

Briggs & Stratton 394970

Magnetron Ign Kit

$

$

Not available
