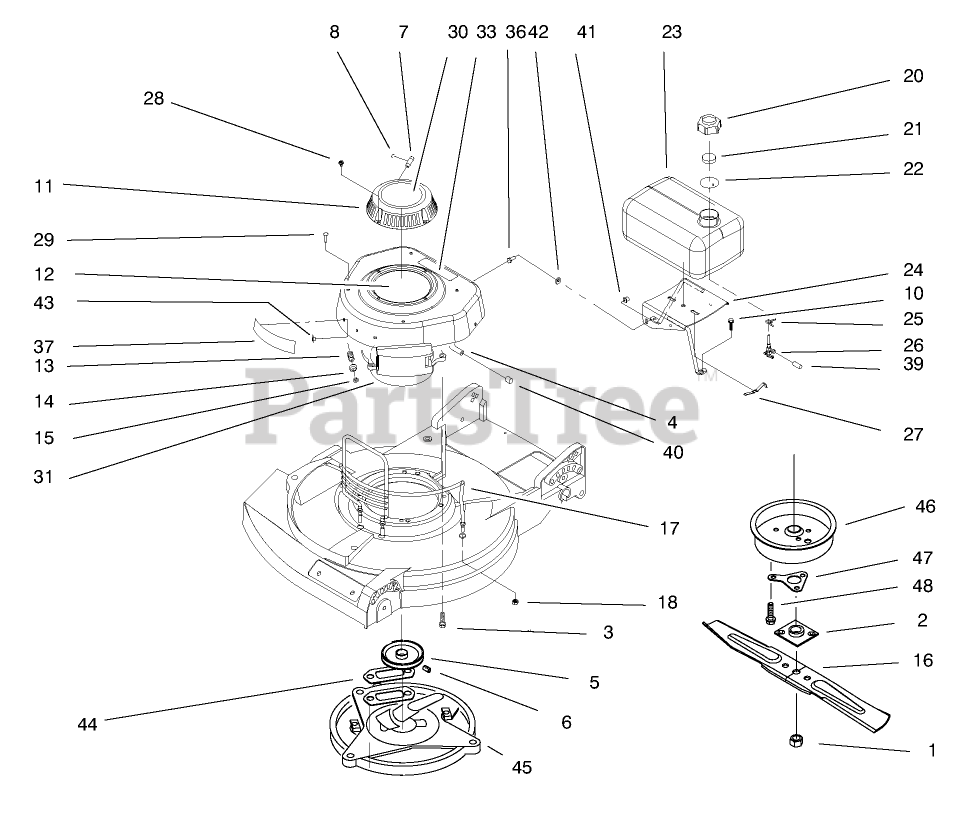

22241 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

2

Toro 677525

PLATE AND COLLAR ASM

$51.99

$

In Stock, only 1 left!

0

3

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 612784

GAS LINE

$10.99

$

Usually ships in 3-6 days

0

5

Toro 609976

PULLEY F

$109.99

$

Usually ships in 3-6 days

0

6

Toro 610345

SET SCREW F

$9.49

$

In Stock, Qty 5

0

7

Toro 47-2480

STOP-ROPE

$

$

Not available

8

Staple

Note: Obtain Locally

$

$

Not available

10

Toro 32144-3

Screw
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 7

0

11

Toro 684622

STARTER,SERV S

$

$

Not available

12

Toro 683638

SHROUD AY B S

$

$

Not available

13

Toro 611214

SPRING

$9.99

$

In Stock, only 1 left!

0

14

Toro 611509

ACTUATOR-LEVER, BRAKE

$5.49

$

In Stock, only 3 left!

0

15

Toro 611213

RETAINER S

$2.49

$

In Stock, only 4 left!

0

16

Toro 612543

Blade
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

17

Toro 94-1618

GUARD - ENGINE

$

$

Not available

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 611327

Cap-Fuel
(Superseded to 682755)

$25.99

$

In Stock, only 1 left!

0

21

Toro 609150

BAFFLE - FOAM SM

$6.49

$

In Stock, Qty 11

0

22

Toro 607213

GASKET S

$1.99

$

In Stock, Qty 20+

0

23

Toro 609829

Gas Tank
(Superseded to 145476)

$

$

Not available

24

Toro 94-4252

Leg & Saddle Assembly
(Superseded to 94-4252-03)

$

$

Not available

25

Toro 312387

CLAMP - HOSE S

$1.49

$

In Stock, Qty 8

0

26

Toro 677052

VALVE&SCREEN SM

$23.99

$

In Stock, only 2 left!

0

27

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

28

Toro 612428

SCREW SEMS SM

$2.49

$

In Stock, only 4 left!

0

29

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.99

$

In Stock, Qty 10

0

30

Toro 93-0296

DECAL - RECOIL

$

$

Not available

31

Engine-2 Cycle

$

$

Not available

33

Toro 612753

DECAL S

$

$

Not available

36

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

37

Toro 612754

APPLIQUE S

$

$

Not available

39

Toro 2410-77

CAP PLUG

$

$

Not available

40

Toro 2410-76

PLUG-CAP

$1.49

$

Usually ships in 3-6 days

0

41

Toro 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

42

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 145945

PUSHNUT F

$

$

Not available

44

Toro 93-1233

GASKET-EXH. VF

$1.99

$

In Stock, Qty 6

0

45

Toro 92-1054

MUFFLER PLATE F

$121.99

$

Usually ships in 3-6 days

0

46

Toro 682876

MUFFLER COVER F

$165.99

$

Usually ships in 3-6 days

0

47

Toro 609786

SUPPORT F

$23.99

$

In Stock, only 2 left!

0

48

Toro 609471

SCREW

$4.99

$

In Stock, Qty 14

0
