22240 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) STARTER ASSEMBLY Parts Diagram

Walk-Behind Mower

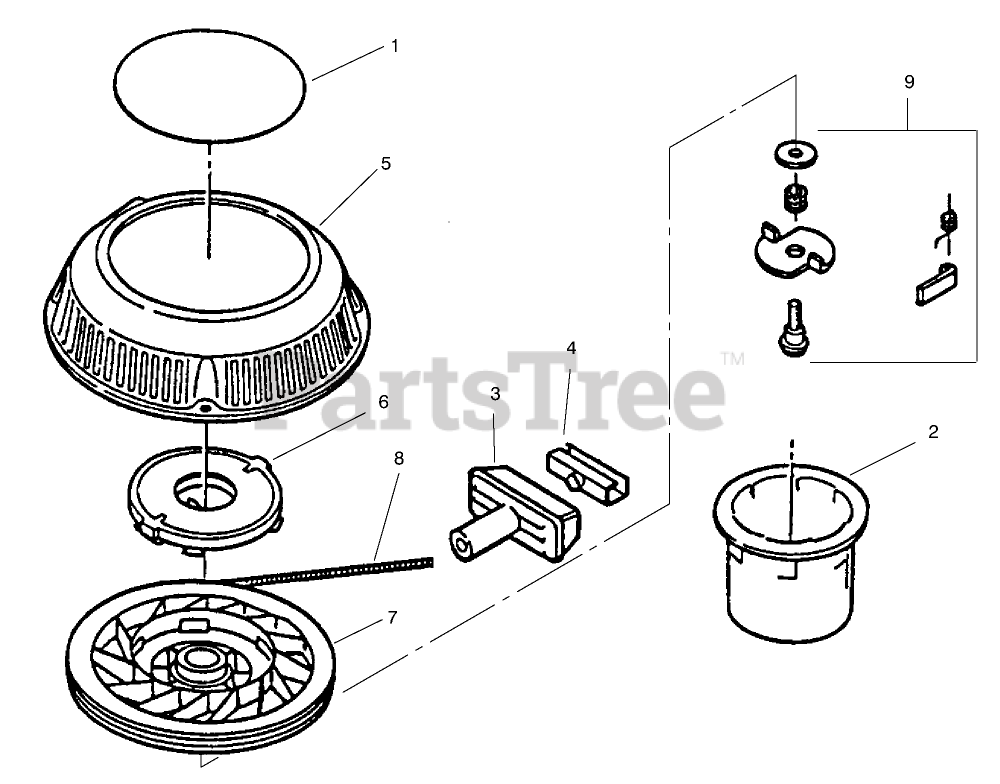

STARTER ASSEMBLY Parts Diagram

  • Title
1

Toro 92-9551

DECAL - RECOIL

$

$

Not available

2

Toro 612949

HUB-STARTER E COMM.

$42.99

$

In Stock, only 3 left!

0

3

Toro 612825

HANDLE-START
(Superseded to 81-1630)

$18.99

$

In Stock, only 1 left!

0

4

Toro 612824

CLIP-STARTER

$3.99

$

In Stock, Qty 10

0

5

Toro 684567

STARTER HOUSING & SHAFT

$121.99

$

Usually ships in 3-6 days

0

6

Toro 92-4935

SPRING KEEPER ASM

$

$

Not available

7

Toro 612950

PULLEY

$24.99

$

In Stock, only 1 left!

0

8

Toro 612432

ROPE-RECOIL
(Superseded to 613773)

$30.99

$

Usually ships in 3-6 days

0

9

Toro 683899

DOG KIT

$79.99

$

In Stock, Qty 7

0

Toro 612428

SCREW SEMS SM

Note: Not illustrated

$2.49

$

In Stock, only 4 left!

0

Toro 684622

Assembly-Starter (Inc. Ref. No. 5-9)

Note: Not illustrated

$

$

Not available
