22240 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) SHROUD ASSEMBLY Parts Diagram

Walk-Behind Mower

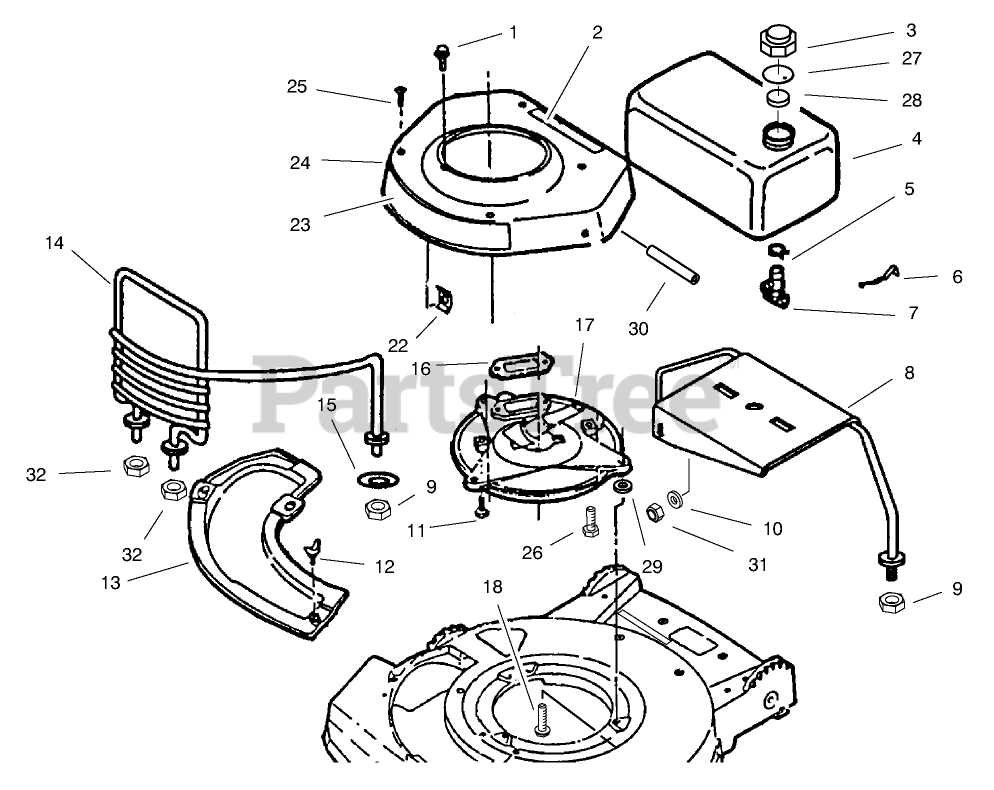

SHROUD ASSEMBLY Parts Diagram

  • Title

1

Toro 612428

SCREW SEMS SM

$2.49

$

In Stock, only 4 left!

0

2

Toro 612753

DECAL S

$

$

Not available

3

Toro 682755

FUEL CAP & INSERT

$25.99

$

In Stock, only 1 left!

0

4

Toro 609829

Gas Tank
(Superseded to 145476)

$

$

Not available

5

Toro 312387

CLAMP - HOSE S

$1.49

$

In Stock, Qty 8

0

6

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

7

Toro 677052

VALVE&SCREEN SM

$23.99

$

In Stock, only 2 left!

0

8

Toro 684583

Bracket-Tank
(Superseded to 684583-03)

$

$

Not available

9

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

10

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 607601

SCREW V

$4.49

$

In Stock, only 2 left!

0

12

Toro 614682

Knob
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 13

0

13

Toro 607560

CoverPlate
(Superseded to 95-7052)

$36.99

$

In Stock, only 3 left!

0

14

Toro 94-1618

GUARD - ENGINE

$

$

Not available

15

Toro 145875

WASHER

$

$

Not available

16

Toro 93-1233

GASKET-EXH. VF

$1.99

$

In Stock, Qty 20+

0

17

Toro 92-1054

MUFFLER PLATE F

$121.99

$

Usually ships in 3-6 days

0

18

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

22

Toro 145945

PUSHNUT F

$

$

Not available

23

Toro 612754

APPLIQUE S

$

$

Not available

24

Toro 683638

SHROUD AY B S

$

$

Not available

25

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.99

$

In Stock, Qty 10

0

26

Toro 613500

SCREW-SEMS F

$9.49

$

Usually ships in 3-6 days

0

27

Toro 609150

BAFFLE - FOAM SM

$6.49

$

In Stock, Qty 20+

0

28

Toro 607213

GASKET S

$1.99

$

In Stock, Qty 20+

0

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 612784

GAS LINE

$10.99

$

Usually ships in 3-6 days

0

31

Toro 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

32

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
