22240 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

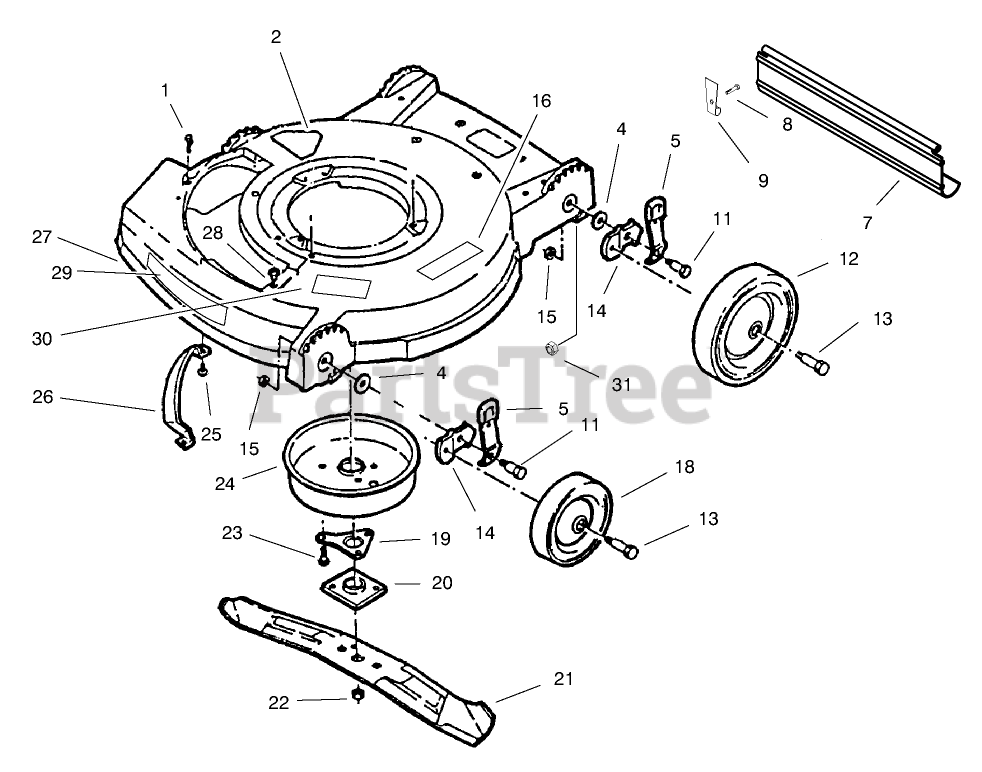

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 614677

SCREW-SEMS

$3.99

$

In Stock, Qty 16

0

2

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

4

Toro 608834

WASHER

$15.99

$

In Stock, only 2 left!

0

5

Toro 153444

SPRING ARM ASM

$

$

Not available

7

Toro 93-7368

SHIELD-TRAILING

$35.99

$

In Stock, only 1 left!

0

8

Toro 609891

Screw
(Superseded to 700138)

$

$

Not available

9

Toro 93-7693

CLAMP-SHIELD

$15.99

$

In Stock, only 2 left!

0

11

Toro 610646

BOLT

$6.49

$

Usually ships in 3-6 days

0

12

Toro 683464

WHEEL/TIRE ASM

$79.99

$

Usually ships in 3-6 days

0

13

Toro 603567

BOLT

$13.99

$

In Stock, only 2 left!

0

14

Toro 608833

Bracket
(Superseded to 608833-03)

$22.99

$

In Stock, only 2 left!

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 93-7250

DECAL-WARNING

$14.99

$

In Stock, only 2 left!

0

18

Toro 684159

WHEEL AND TIRE ASM

$68.99

$

Usually ships in 3-6 days

0

19

Toro 609786

SUPPORT F

$20.99

$

In Stock, only 2 left!

0

20

Toro 677525

PLATE AND COLLAR ASM

$23.99

$

In Stock, only 1 left!

0

21

Toro 612543

Blade
(Superseded to 612543-03)

$29.99

$

In Stock, only 4 left!

0

22

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

23

Toro 609471

SCREW

$4.99

$

In Stock, Qty 14

0

24

Toro 682876

MUFFLER COVER F

$143.99

$

Usually ships in 3-6 days

0

25

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

26

Toro 608175

BAR-TOE

$75.99

$

Usually ships in 3-6 days

0

27

Toro 16-2149

Assembly-Housing (Incl. Ref. #2, 16, 28, & 30)

$

$

Not available

28

Toro 94-1610

NUT-CLIP

$0.99

$

In Stock, Qty 14

0

29

Toro 92-9550

DECAL - DECK

$

$

Not available

30

Toro 93-3191

DECAL - NO RUST

$

$

Not available

31

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0
