22240 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

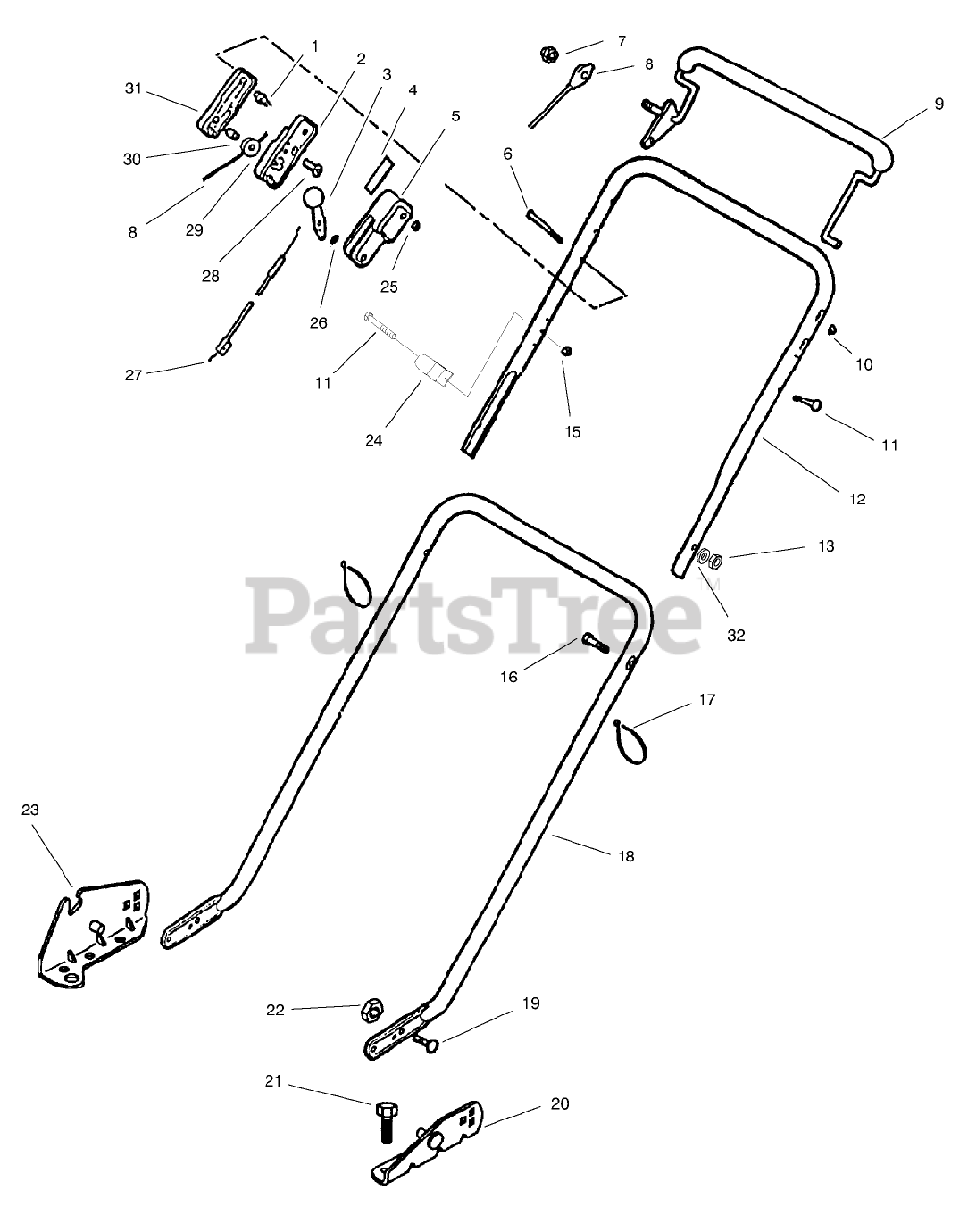

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 611541

COLUMN

$14.99

$

Usually ships in 3-6 days

0

2

Toro 612633

CENTER CONTROL CASE

$

$

Not available

3

Toro 93-4135

ASM - LEVER & KNOB

$

$

Not available

4

Toro 93-4136

DECAL - THROTTLE CONTROL

$

$

Not available

5

Toro 612634

INNER CONTROL CASE

$

$

Not available

6

Toro 611799

SCREW

$5.49

$

Usually ships in 3-6 days

0

7

Toro 612168

NUT ACORN

$19.99

$

Usually ships in 3-6 days

0

8

Toro 93-3694

CABLE - CONTROL

$98.99

$

Usually ships in 3-6 days

0

9

Toro 683478

CONTROL LEVER ARG

$138.99

$

Usually ships in 3-6 days

0

10

Toro 605546

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

11

Toro 321-51

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

12

Toro 614516

HANDLE SECTION-TOP

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 8

0

16

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

17

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

18

Toro 92-2920

Handle-Lower
(Superseded to 92-2920-05)

$131.99

$

Usually ships in 3-6 days

0

19

Toro 705681

BOLT-CARRIAGE
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

20

Toro 684058

ASM-Bracket & Pin
(Superseded to 684058-03)

$81.99

$

Usually ships in 3-6 days

0

21

Toro 607188

SCREW

$3.99

$

In Stock, only 3 left!

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 684057

ASM-Bracket & Pin
(Superseded to 684057-03)

$

$

Not available

24

Toro 93-7383

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 20+

0

25

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

26

Toro 612586

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

27

Toro 93-3778

CABLE - THROTTLE

$73.99

$

Usually ships in 3-6 days

0

28

Toro 611543

SCREW

$4.49

$

In Stock, Qty 6

0

29

Toro 612564

PULLEY PL

$5.99

$

Usually ships in 3-6 days

0

30

Toro 611542

PIN SKF

$

$

Not available

31

Toro 611777

OUTER CONTROL CASE

$32.99

$

In Stock, only 1 left!

0

32

Toro 609739

WASHER-CURVED

$3.49

$

In Stock, Qty 8

0
