22240 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

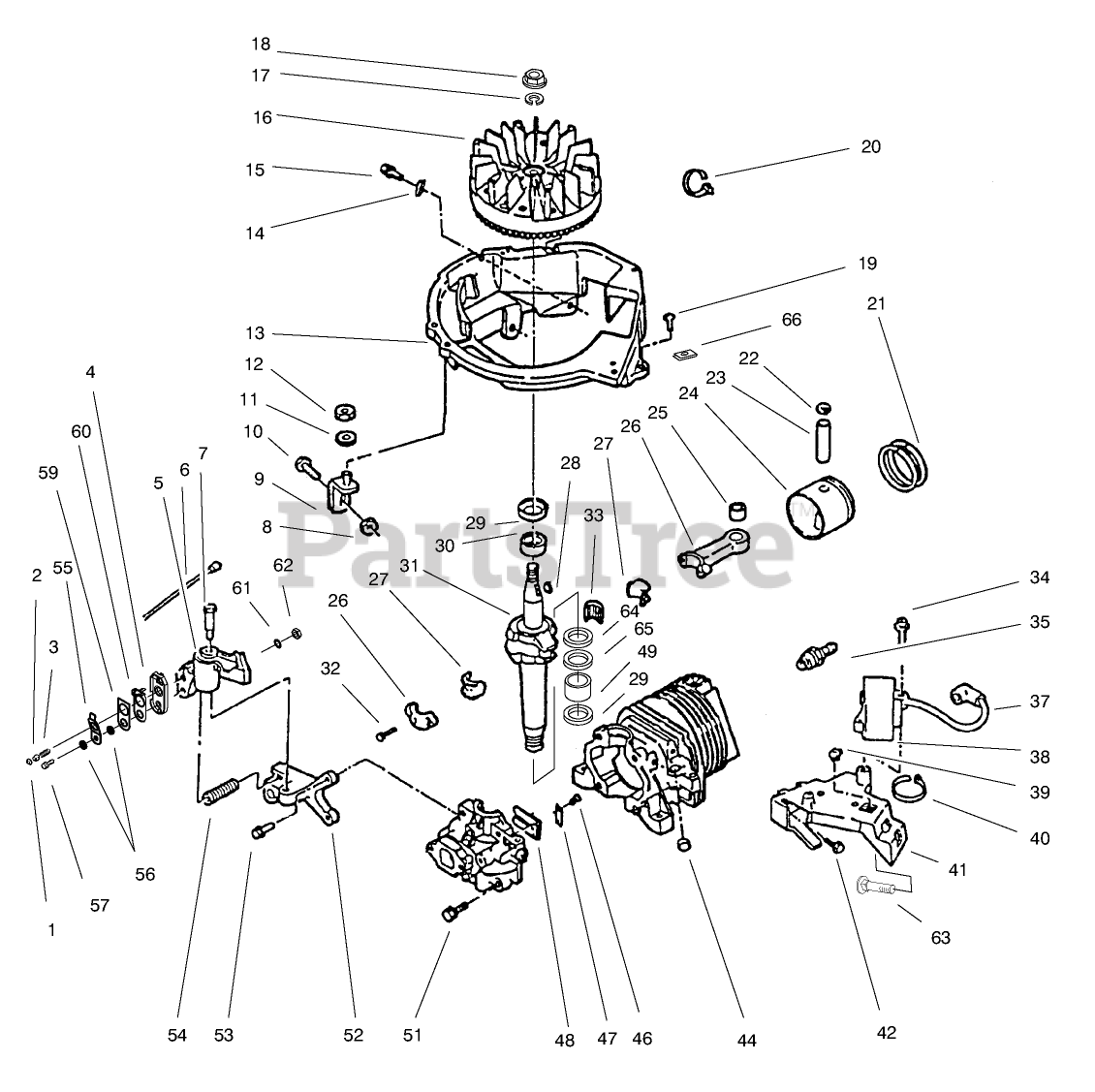

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 611213

RETAINER S

$1.99

$

In Stock, only 4 left!

0

2

Toro 611509

ACTUATOR-LEVER, BRAKE

$4.99

$

In Stock, only 3 left!

0

3

Toro 611214

SPRING

$8.49

$

In Stock, only 1 left!

0

4

Toro 93-1240

CASE - SWITCH EF

$3.49

$

In Stock, only 2 left!

0

5

Toro 682683

BRAKE AY FE

$

$

Not available

6

Toro 683821

WIRE LEAD AY F

$

$

Not available

7

Toro 613529

SCREW-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

8

Toro 608311

NUT-LOCK F

$2.99

$

Usually ships in 3-6 days

0

9

Toro 683581

BRACE AY F

$19.99

$

Usually ships in 3-6 days

0

10

Toro 603014

BOLT F

$2.99

$

Usually ships in 3-6 days

0

11

Toro 306407

WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

12

Toro 602315

LOCKNUT E

$4.49

$

In Stock, only 2 left!

0

13

Toro 612427

BASE SHROUD F

$

$

Not available

14

Toro 611191

"J" CLIP F

$

$

Not available

15

Toro 609947

SCREW F

$9.99

$

Usually ships in 3-6 days

0

16

Toro 683580

FLYWHEEL ASSY F

$318.99

$

In Stock, only 1 left!

0

17

Toro 316959

WASHER-LOCK
(Superseded to 325-36)

$8.49

$

In Stock, Qty 16

0

18

Toro 130743

NUT

$2.99

$

In Stock, Qty 6

0

19

Toro 609808

SCREW F

$11.99

$

Usually ships in 3-6 days

0

20

Toro 317893

STRAP-TIE

$

$

Not available

21

Toro 681737

F-RING SET

$

$

Not available

22

Toro 303712

RING-RETAINING

$2.99

$

In Stock, Qty 11

0

23

Toro 606608

PIN-WRIST VF
(Superseded to 94-5774)

$9.99

$

Usually ships in 3-6 days

0

24

Toro 92-4925

Set-Piston & Ring (Incl. Ref.# 21-23)

$

$

Not available

25

Toro 92-4927

BEARING XEV

$33.99

$

Usually ships in 3-6 days

0

26

Toro 92-4921

Assembly-Conn. Rod (Incl. Ref. #25, 27, 32, & 33)

$206.99

$

In Stock, only 2 left!

0

27

Toro 677982

LINER ASM

$40.99

$

In Stock, only 2 left!

0

28

Toro 607199

KEY

$4.99

$

In Stock, Qty 9

0

29

Toro 611396

SEAL-OIL

$5.99

$

In Stock, Qty 10

0

30

Toro 681830

BEARING V

$35.99

$

Usually ships in 3-6 days

0

31

Toro 94-5713

CRANKSHAFT V

$284.99

$

Usually ships in 3-6 days

0

32

Toro 611393

SCREW-HSH

$19.99

$

Usually ships in 3-6 days

0

33

Toro 609754

Roller Strip
(Superseded to 683911)

$23.99

$

In Stock, Qty 5

0

34

Toro 607526

SCREW F
(Superseded to 32105-12)

$2.99

$

In Stock, only 4 left!

0

35

Toro 614009

SPARK PLUG

$5.49

$

In Stock, only 2 left!

0

37

Toro 681678

HT LEAD&COVER XEV

$23.99

$

Usually ships in 3-6 days

0

38

Toro 683215

C. D. Ignition Module (Incl. Ref. #37)
(Superseded to 100-2948)

$107.99

$

In Stock, only 1 left!

0

39

Toro 605120

NUT-CLIP

$3.99

$

In Stock, Qty 9

0

40

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

41

Toro 613072

BRACKET F

$35.99

$

Usually ships in 3-6 days

0

42

Toro 614343

SCREW F

$2.99

$

In Stock, only 4 left!

0

44

Toro 609123

PLUG-CORE VF

$2.99

$

Usually ships in 3-6 days

0

46

Toro 612872

SCREW-HH

$2.49

$

In Stock, Qty 5

0

47

Toro 602587

PLATE-BACKUP, REED

$2.99

$

Usually ships in 3-6 days

0

48

Toro 602588

REED-CARBURETOR

$

$

Not available

49

Toro 681831

BEARING V

$23.99

$

In Stock, only 1 left!

0

51

Toro 613110

SCREW-H.W.HD. F

$

$

Not available

52

Toro 611192

BRACKET-BRAKE F

$111.99

$

Usually ships in 3-6 days

0

53

Toro 613233

SCREW

$3.99

$

Usually ships in 3-6 days

0

54

Toro 611211

SPRING-BRAKE

$13.99

$

Usually ships in 3-6 days

0

55

Toro 93-1239

SPRING-CONTACT

$2.49

$

In Stock, only 1 left!

0

56

Toro 306407

WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

57

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

59

Toro 612842

SHIELD

$1.49

$

Usually ships in 3-6 days

0

60

Toro 612841

PLATE-CONTACT

$14.99

$

Usually ships in 3-6 days

0

61

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

62

Toro 306375

Nut
(Superseded to 146254)

$

$

Not available

Toro 94-5734

Assembly-Short Block (Incl. Ref. No.21-27, 29-33, & 43-51)

Note: Not illustrated

$

$

Not available

63

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

64

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 1 left!

0

65

Toro 252-80

WASHER-THRUST

$8.99

$

In Stock, Qty 9

0

66

Toro 609900

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

Toro 93-4307

Switch Kit (Incl. Ref. #1, 4, 6, 55, 57, & 59-62)

Note: Not illustrated

$42.99

$

Usually ships in 3-6 days

0
