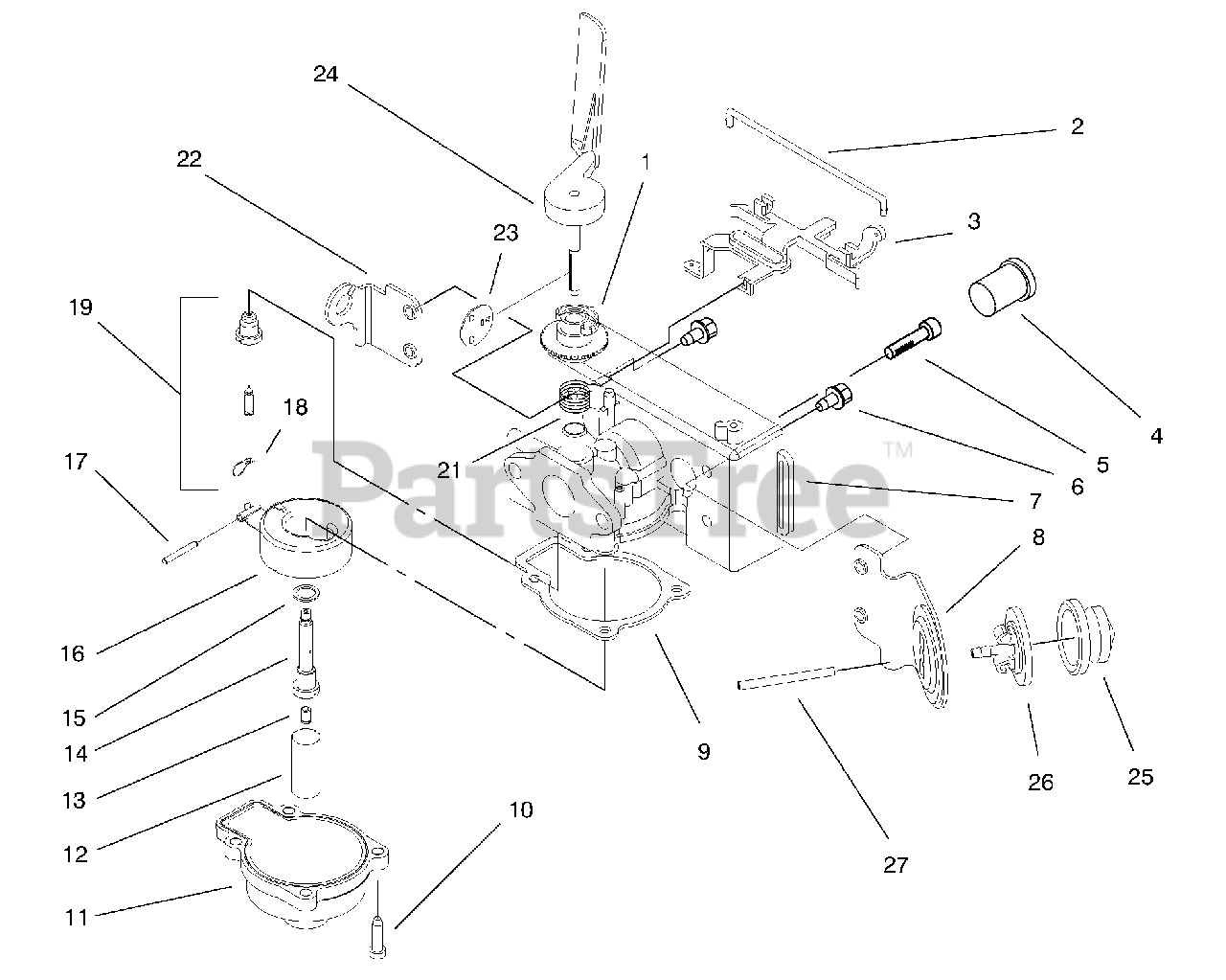

22240 - Lawn-Boy Walk-Behind Mower (SN: 007900001 - 007999999) (1997) CARBURETOR Parts Diagram

Walk-Behind Mower

CARBURETOR Parts Diagram

  • Title
1

Lawn-Boy 610834

Collar-Adjustment

$3.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 610165

Retainer

$4.49

$

In Stock, Qty 15

0

3

Lawn-Boy 93-1225

Lever-Speed Adjust

$2.49

$

In Stock, Qty 14

0

4

Lawn-Boy 611545

Plug
(Superseded to 93-4320)

$

$

Not available

5

Lawn-Boy 609482

Screw-Pan Hd. Sems

$2.49

$

In Stock, Qty 8

0

6

$1.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 94-4341

Body-Carburetor
(Superseded to 93-4341)

$

$

Not available

8

Lawn-Boy 93-1232

Bracket-Primer

$

$

Not available

9

Lawn-Boy 602850

Gasket-Float Chamber
(Superseded to 98-1362)

$2.99

$

In Stock, Qty 20+

0

10

$1.99

$

In Stock, only 3 left!

0

11

Lawn-Boy 92-9691

Float Chamber

$37.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 611071

Filter-Fuel

$15.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 94-5710

Main Jet

$

$

Not available

14

$

$

Not available

15

$1.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 678113

Float & Arm Assembly

$

$

Not available

$5.49

$

In Stock, only 1 left!

0

18

Lawn-Boy 603145

Clip
(Superseded to 92-9697)

$21.99

$

In Stock, Qty 10

0

19

Lawn-Boy 92-9697

Float, Valve, & Body Ass'y

$21.99

$

In Stock, Qty 10

0

21

Lawn-Boy 92-4944

Spring-Governor

$8.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 93-1226

Bracket-Throttle Control

$

$

Not available

23

Lawn-Boy 94-5704

Disc-Throttle

$3.49

$

In Stock, only 4 left!

0

24

Lawn-Boy 92-6376

Air Vane & Shaft
(Superseded to 104-4430)

$11.99

$

In Stock, Qty 18

0

25

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 44-3172

Hose-Primer

$5.49

$

In Stock, only 1 left!

0

Lawn-Boy 94-5738

Carburetor Complete

Note: Not Illustrated

$

$

Not available
