222390x99A - Briggs & Stratton 22" Walk-Behind Mower (2001) (AAFES) Handle Assembly Parts Diagram

22" Walk-Behind Mower

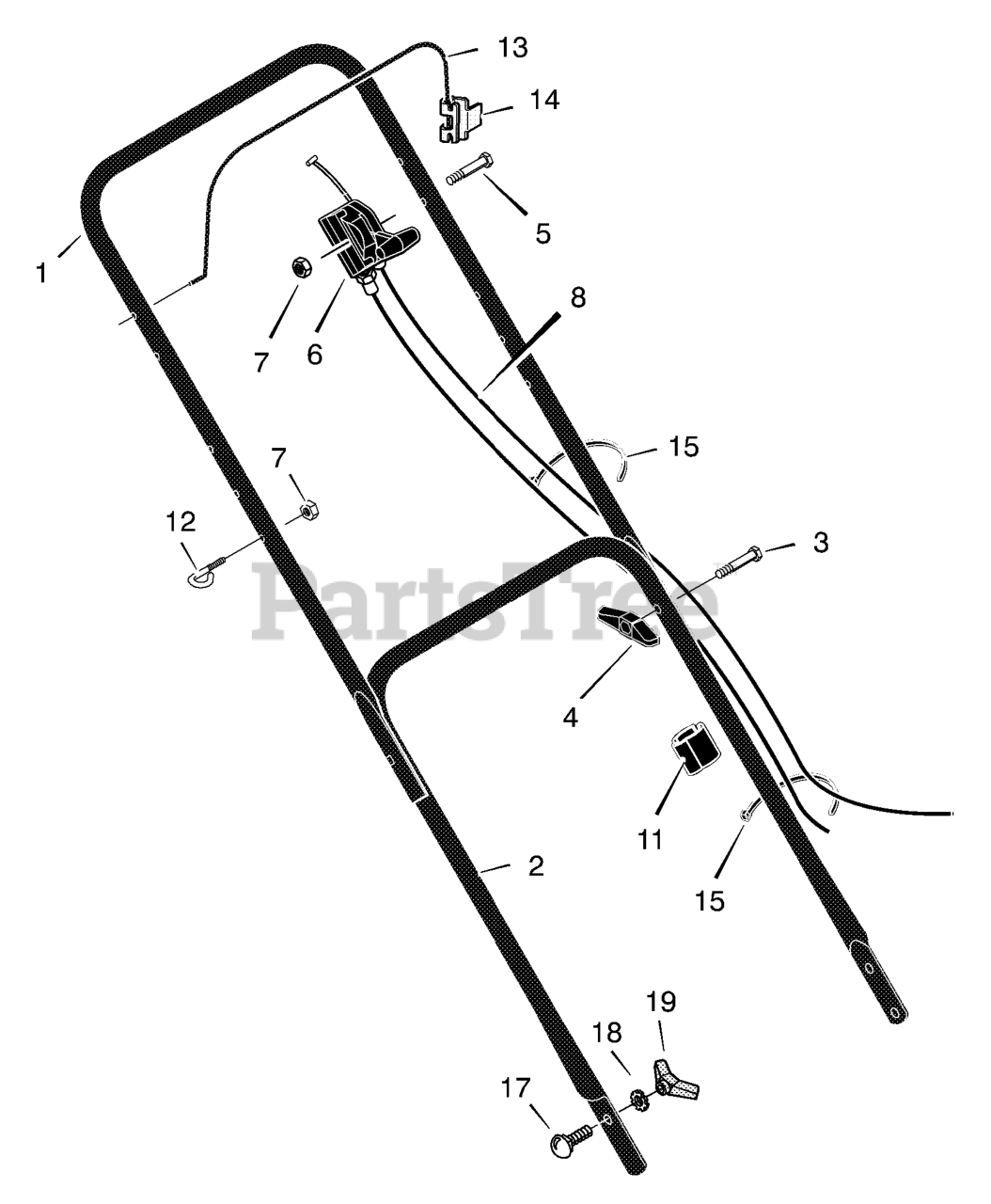

Handle Assembly Parts Diagram

  • Title

1

Murray 71581-846

Handle, Upper (Black)

$

$

Currently unavailable

2

Murray 672906-846

Handle, Lower (Black)

$

$

Not available

3

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

4

Murray 071294

Knob, Plastic
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

5

Murray 001X93MA

Bolt

$3.99

$

In Stock, Qty 12

0

6

Murray 1101418MA

Throttle Control

$35.99

$

Usually ships in 2-12 days

0

7

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

8

Murray 1101427MA

Engine Stop Cable

$14.99

$

Usually ships in 2-12 days

0

11

Murray 1101352

Clip, Cable

$5.99

$

In Stock, only 2 left!

0

12

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

13

Murray 043653E701MA

Lever, Engine Stop

$34.99

$

Usually ships in 2-12 days

0

14

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

15

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

17

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

18

Murray 0019X8MA

Washer
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

19

Murray 071495MA

Knob, Plastic

$4.99

$

In Stock, only 3 left!

0
