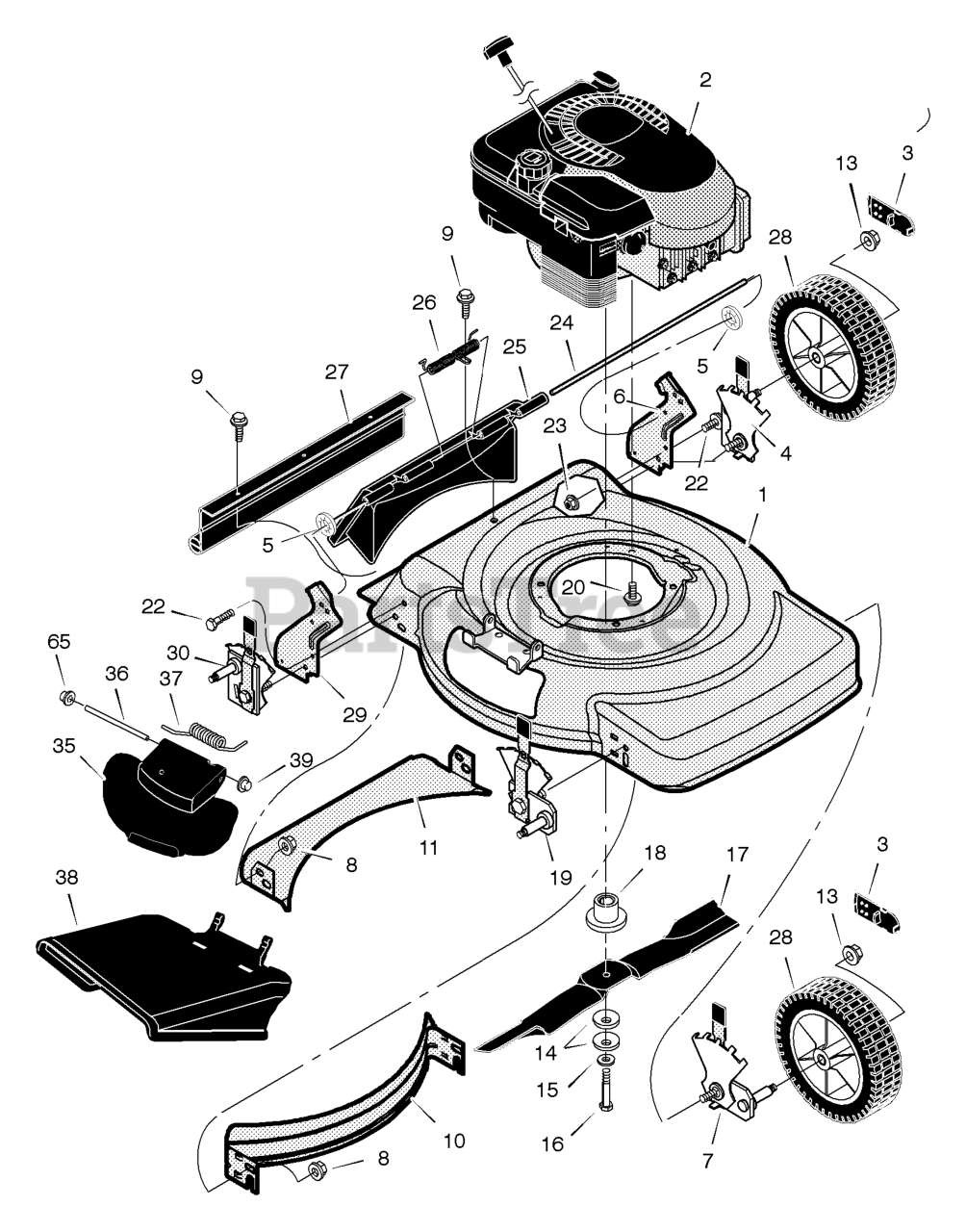

222390x31A - Scotts 22" Walk-Behind Mower (2004) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

Mower Housing Assembly Parts Diagram

  • Title
1

$

$

Not available

2

Engine

$

$

Not available

3

Murray 043615MA

Cap, Hub

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

4

Murray 1102355

Adjuster, Left Rear Height

$

$

Currently unavailable

5

Murray 028X49MA

Push Retainer

Note: (Included with Ref. No. 25)

$3.99

$

In Stock, Qty 13

0

6

Murray 1101239E700

Bracket, Left Handle

$

$

Not available

7

Murray 1102033MA

Adjuster, Left Front Height

$82.99

$

Usually ships in 2-12 days

0

8

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 26X245MA

Screw

Note: (Included with Ref. No. 1)

$4.49

$

In Stock, Qty 6

0

10

Murray 672915E701MA

Baffle, Front

$74.99

$

Usually ships in 2-12 days

0

11

Murray 672916E701MA

Baffle, Rear
(Superseded to 7300854DYP)

$43.99

$

Usually ships in 2-12 days

0

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

$4.49

$

Usually ships in 2-12 days

0

16

$8.49

$

In Stock, only 2 left!

0

$

$

Not available

18

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 1102032MA

Adjuster, Right Front Height

$83.99

$

Usually ships in 2-12 days

0

20

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

22

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

23

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X21MA

Rod, Pivot

Note: (Included with Ref. No. 25)

$7.99

$

Usually ships in 2-12 days

0

25

Murray 1101070MA

Door, Rear (Black)

Note: (Included with Ref. No. 1)

$

$

Not available

26

Murray 166X44MA

Spring

Note: (Included with Ref. No. 25)

$14.99

$

In Stock, only 1 left!

0

27

Murray 1101105MA

Guard, Rear
(Superseded to 7103347YP)

Note: (Included with Ref. No. 1)

$

$

Not available

28

Murray 071132MA

Wheel & Tire

$36.99

$

In Stock, only 4 left!

0

29

Murray 1101238E701MA

Bracket, Right Handle
(Superseded to 7300890ZYP)

$

$

Not available

30

Murray 1102034MA

Adjuster, Right Rear Height

$66.99

$

Usually ships in 2-12 days

0

35

Murray 1101098MA

Cover, Mulch (Black)

Note: (Included with Ref. No. 1)

$33.99

$

In Stock, only 1 left!

0

36

Murray 215X19 Z

Rod, Pivot

Note: (Included with Ref. No. 1)

$

$

Currently unavailable

37

Murray 166X38MA

Spring, Torsion

Note: (Included with Ref. No. 1)

$4.99

$

In Stock, only 2 left!

0

38

Murray 1101097MA

Deflector, Chute (Black)

Note: (Included with Ref. No. 1)

$39.99

$

Usually ships in 2-12 days

0

39

Murray 028X42MA

Push On Cap

Note: (Included with Ref. No. 1)

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-040414L

Instruction Book

$

$

Currently unavailable
