22232 - Toro 30" TurfMaster Revolution 60V Walk-Behind Mower (SN: 400000000 - 999999999) Deck Assembly Parts Diagram

30" TurfMaster Revolution 60V Walk-Behind Mower

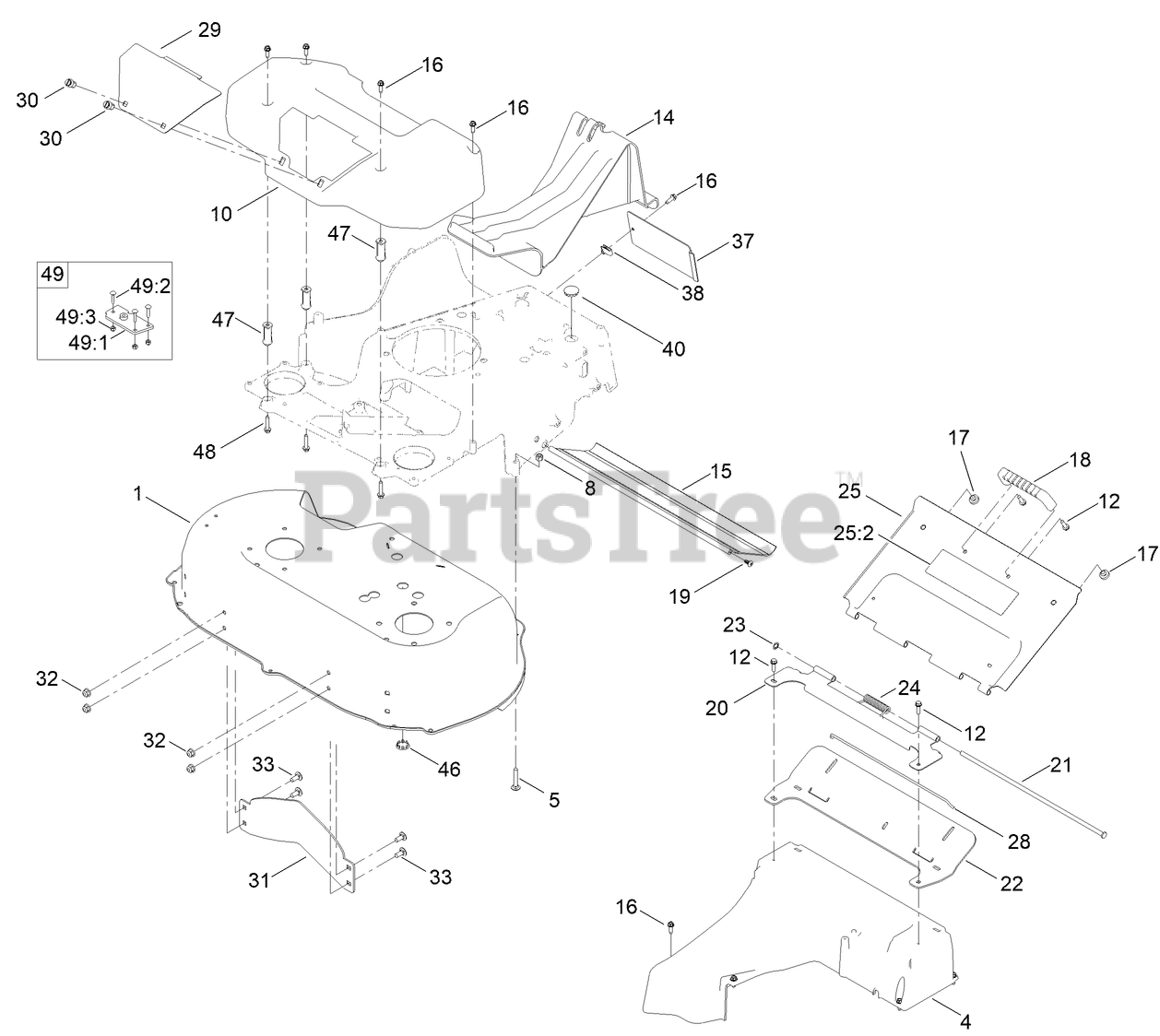

Deck Assembly Parts Diagram

  • Title
1

Toro 147-0494-01

TURFMASTER 30 DECK ASM [RED]

$

$

Currently unavailable

4

$58.99

$

Usually ships in 3-6 days

0

5

Toro 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 145-5898

COVER-BELT

$36.99

$

Usually ships in 0 days

0

12

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

14

Toro 120-5225

PLUG-MULCH

$29.99

$

In Stock, Qty 13

0

15

Toro 121-5841

SHIELD-TRAILING

$22.99

$

In Stock, only 2 left!

0

16

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

17

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

18

Toro 65-5100

HANDLE-DOOR

$9.99

$

In Stock, only 2 left!

0

19

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

20

Toro 116-6351-03

BRACKET-HINGE

$39.99

$

In Stock, only 3 left!

0

21

Toro 116-6933

PIN-HINGE

$8.99

$

In Stock, only 1 left!

0

22

Toro 116-6229

SEAL-DOOR

$22.99

$

In Stock, Qty 16

0

23

Toro 32151-72

RING-RETAINING

$1.99

$

Usually ships in 3-6 days

0

24

Toro 116-7573

SPRING-TORSION, COVER

$5.49

$

In Stock, only 2 left!

0

25

Toro 116-8355

REAR DOOR ASM

$72.99

$

In Stock, only 1 left!

0

25:2

Toro 116-7583

DECAL-WARNING

$17.99

$

In Stock, Qty 11

0

28

Toro 116-6966

CLIP-SEAL

$6.49

$

In Stock, only 2 left!

0

29

Toro 145-5899-03

PANEL-ACCESS

$21.99

$

Usually ships in 0 days

0

30

Toro 121-5840

FASTENER

$6.49

$

In Stock, Qty 20+

0

31

Toro 130-2352-01

BAFFLE-CONTROL

$27.99

$

Usually ships in 3-6 days

0

32

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

33

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

37

Toro 138-5332-01

COVER-FRAME

$8.49

$

In Stock, Qty 5

0

38

$2.99

$

In Stock, Qty 20+

0

40

Toro 126-7151

PLUG-BUTTON

$5.49

$

In Stock, Qty 20+

0

46

Toro 147-0471

PLUG-BUTTON

$

$

Currently unavailable

47

Toro 140-3901

SPACER-FRAME, 30 IN.

$5.49

$

Usually ships in 0 days

0

48

Toro 108-4862

SCREW-HWHTF

$3.49

$

In Stock, only 2 left!

0

49

Toro 161-3140

FRAME-PLATE KIT

$

$

Currently unavailable

49:1

Toro 161-3141

PLATE-FRAME, ASM

$

$

Currently unavailable

49:2

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

49:3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
