22232 T - Toro 30" TurfMaster Revolution 60V Walk-Behind Mower (SN: 400000000 - 999999999) Motor Module Assembly No. 147-0486 Parts Diagram

30" TurfMaster Revolution 60V Walk-Behind Mower

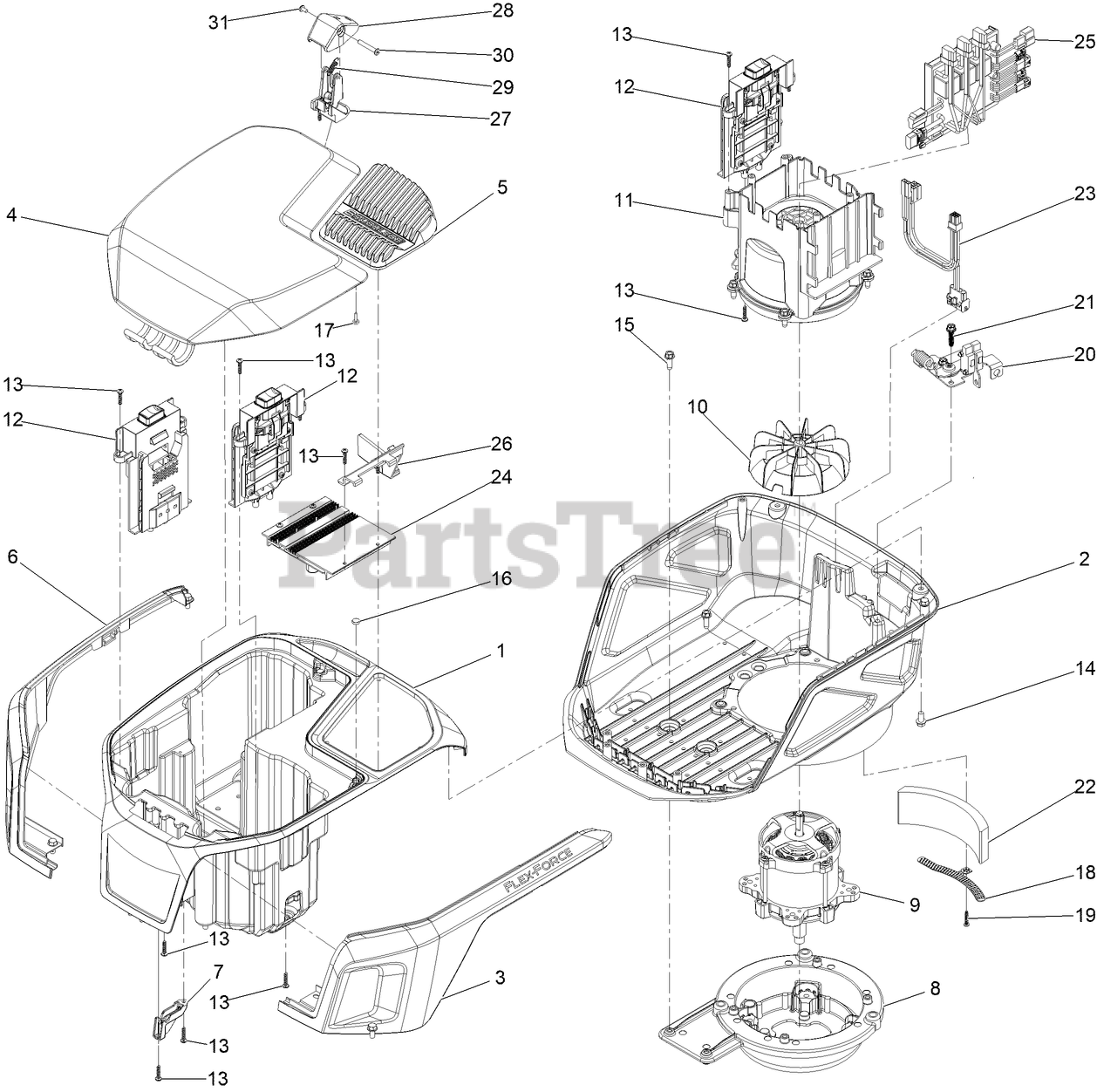

Motor Module Assembly No. 147-0486 Parts Diagram

  • Title

1

Toro 145-5882

BUCKET-BATTERY

$29.99

$

Usually ships in 0 days

0

2

Toro 145-5883

SHROUD-LOWER

$

$

Currently unavailable

3

Toro 147-0406

TRIM-SHROUD, LH

$11.99

$

Usually ships in 0 days

0

4

Toro 145-5885

LID-MOTOR

$23.99

$

Usually ships in 0 days

0

5

Toro 145-5886

HEATSINK-CONTROLLER

$

$

Currently unavailable

6

Toro 147-0407

TRIM-SHROUD, RH

$11.99

$

Usually ships in 0 days

0

7

Toro 145-5892

BRACKET-SUPPORT, LID

$

$

Currently unavailable

8

Toro 145-5895

MOUNT-BASE, MOTOR

$

$

Currently unavailable

9

Toro 145-4048

MOTOR-60V

$343.99

$

Usually ships in 0 days

0

10

Toro 145-5896

FAN-MOTOR

$15.99

$

Usually ships in 0 days

0

11

Toro 145-5897

SHROUD-MOTOR

$

$

Currently unavailable

12

Toro 147-0403

RECEIVER-BATTERY

$37.99

$

Usually ships in 0 days

0

13

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

14

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

15

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

16

Toro 114-5896

MAGNET

$6.49

$

In Stock, only 1 left!

0

17

Toro 95-4234

SCREW-PPH

$2.49

$

In Stock, Qty 5

0

18

Toro 147-0449

BRACKET-FOAM

$

$

Currently unavailable

19

Toro 138-3273

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

0

20

Toro 133-1918

BAIL SWITCH ASM

$50.99

$

Usually ships in 3-6 days

0

21

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 20+

0

22

Toro 145-3972

FOAM

$

$

Currently unavailable

23

Toro 139-6637

HARNESS-WIRE

$21.99

$

Usually ships in 3-6 days

0

24

Toro 147-0451

CONTROLLER-PMU

$188.99

$

Usually ships in 0 days

0

25

Toro 147-0452

CONTROLLER-MOTOR

$185.99

$

Usually ships in 0 days

0

26

Toro 161-3110

BRACKET-PMU

$

$

Currently unavailable

27

Toro 147-8634

LIDLOCK-BASE

$

$

Currently unavailable

28

Toro 147-8633

LIDLOCK-LEVER

$

$

Currently unavailable

29

Toro 161-3111

SPRING

$5.99

$

Usually ships in 0 days

0

30

Toro 161-3112

SCREW-PIN, HINGE

$

$

Currently unavailable

31

Toro 161-3113

SCREW-PIN

$

$

Currently unavailable
