22232 T - Toro 30" TurfMaster Revolution 60V Walk-Behind Mower (SN: 400000000 - 999999999) Handle Assembly Parts Diagram

30" TurfMaster Revolution 60V Walk-Behind Mower

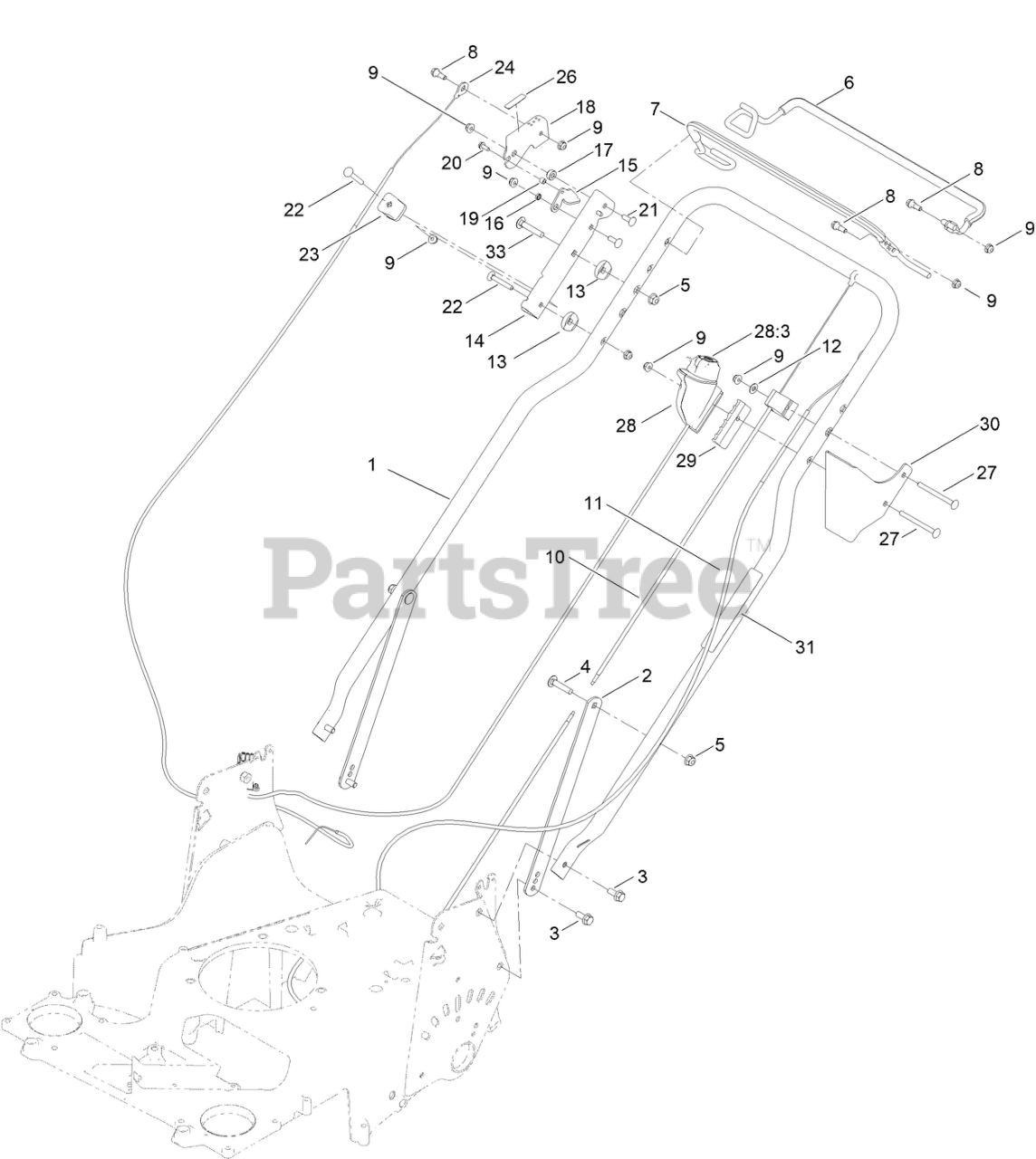

Handle Assembly Parts Diagram

  • Title
1

$104.99

$

Usually ships in 3-6 days

0

2

Toro 116-8208-03

SUPPORT-HANDLE

$6.49

$

In Stock, only 2 left!

0

3

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

4

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 13

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 139-1815

BAIL-TRACTION, COATED

$38.99

$

In Stock, Qty 19

0

7

Toro 137-4810

BAIL-BBC, COATED

$39.99

$

In Stock, Qty 18

0

8

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 17

0

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 147-0488

CABLE-BRAKE

$37.99

$

Usually ships in 0 days

0

11

Toro 147-0489

CABLE-TRACTION

$37.99

$

Usually ships in 0 days

0

12

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 106-7260

WASHER-CURVED

$9.49

$

Usually ships in 3-6 days

0

14

Toro 139-1818-03

MOUNT-LEVER, BRAKE

$23.99

$

In Stock, only 1 left!

0

15

Toro 139-1813

LINK-ACTUATION, BRAKE

$2.99

$

In Stock, Qty 10

0

16

Toro 138-5368

SPACER

$1.49

$

In Stock, Qty 15

0

17

Toro 139-1817

WASHER-STEPPED

$1.99

$

In Stock, Qty 14

0

18

Toro 139-1819

LEVER-BRAKE

$7.99

$

In Stock, Qty 12

0

19

Toro 117-9965

SPACER

$8.99

$

In Stock, Qty 16

0

20

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

21

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

22

Toro 3229-5

SCREW-CARR

$1.49

$

In Stock, only 3 left!

0

23

Toro 106-6801

ANCHOR-CABLE

$7.99

$

In Stock, Qty 7

0

24

Toro 138-5399

CABLE-BRAKE, PARKING

$36.99

$

In Stock, Qty 20+

0

26

Toro 139-5405

DECAL-BRAKE, PARKING

$2.99

$

In Stock, only 1 left!

0

27

Toro 144-6387

SCREW-CARR,SPCL

$2.49

$

Usually ships in 3-6 days

0

28

Toro 145-4008

SWITCH-STARTER ASM

$44.99

$

Usually ships in 0 days

0

28:3

Toro 147-0576

STARTER BUTTON SERVICE ASM

$

$

Currently unavailable

29

Toro 140-4148

SPACER-HOUSING, SWITCH

$5.49

$

Usually ships in 3-6 days

0

30

Toro 147-0487-03

GUARD-SWITCH [BLACK]

$17.99

$

Usually ships in 0 days

0

31

Toro 144-3175

DECAL-CONTROLS (60V START)

$6.99

$

Usually ships in 3-6 days

0

33

Toro 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 20+

0
