22225 - Toro 30" TurfMaster HDX Walk-Behind Mower (SN: 410113486 - 410199999) Engine and Fuel Tank Assembly Parts Diagram

30" TurfMaster HDX Walk-Behind Mower

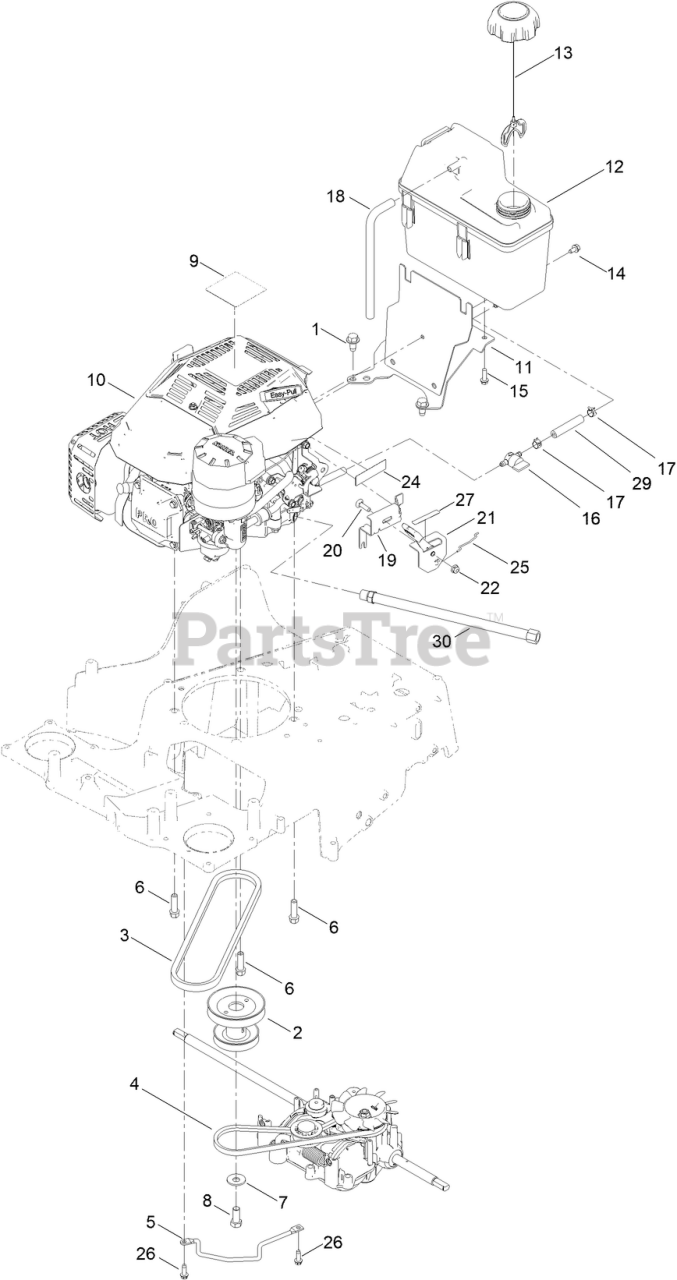

Engine and Fuel Tank Assembly Parts Diagram

  • Title
1

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 8

0

2

Toro 137-9181

PULLEY-ENGINE

$47.99

$

In Stock, Qty 5

0

3

Toro 121-5765

V-BELT

$19.99

$

In Stock, Qty 20+

0

4

Toro 133-8151

BELT-V

$23.99

$

In Stock, Qty 10

0

5

Toro 138-5331-03

ROD-GUIDE, BELT

$13.99

$

In Stock, only 1 left!

0

6

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Toro 3212-4

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

9

Toro 139-1807

DECAL-TORO

$9.49

$

Usually ships in 3-6 days

0

10

ENGINE-KOHLER CV224

Note: Not serviced separately

$

$

Not available

10

ENGINE-KOHLER CV224

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Toro 137-9180-03

TANK MOUNT ASM

$35.99

$

In Stock, only 1 left!

0

12

Toro 114-0280

TANK-FUEL

$144.99

$

In Stock, only 4 left!

0

13

Toro 137-4127

CAP-FUEL

$23.99

$

In Stock, only 2 left!

0

14

Toro 116-8929

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

15

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

16

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

17

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

18

Toro 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

19

Toro 145-1504-03

BRACKET-THROTTLE

$24.99

$

In Stock, Qty 20+

0

20

Toro 3229-30

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 130-9655

CONTROL-THROTTLE

$43.99

$

In Stock, only 4 left!

0

22

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro 116-9313

DECAL-WARNING, ENGINE

$1.99

$

Usually ships in 3-6 days

0

25

Toro 138-5387

WIRE-LINK

$2.99

$

In Stock, Qty 18

0

26

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

27

Toro 130-9656

DECAL-THROTTLE, CHOKE

$2.99

$

In Stock, only 2 left!

0

29

Toro 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 11

0

30

Toro 117-1261

HOSE-DRAIN, OIL

$29.99

$

In Stock, only 1 left!

0
